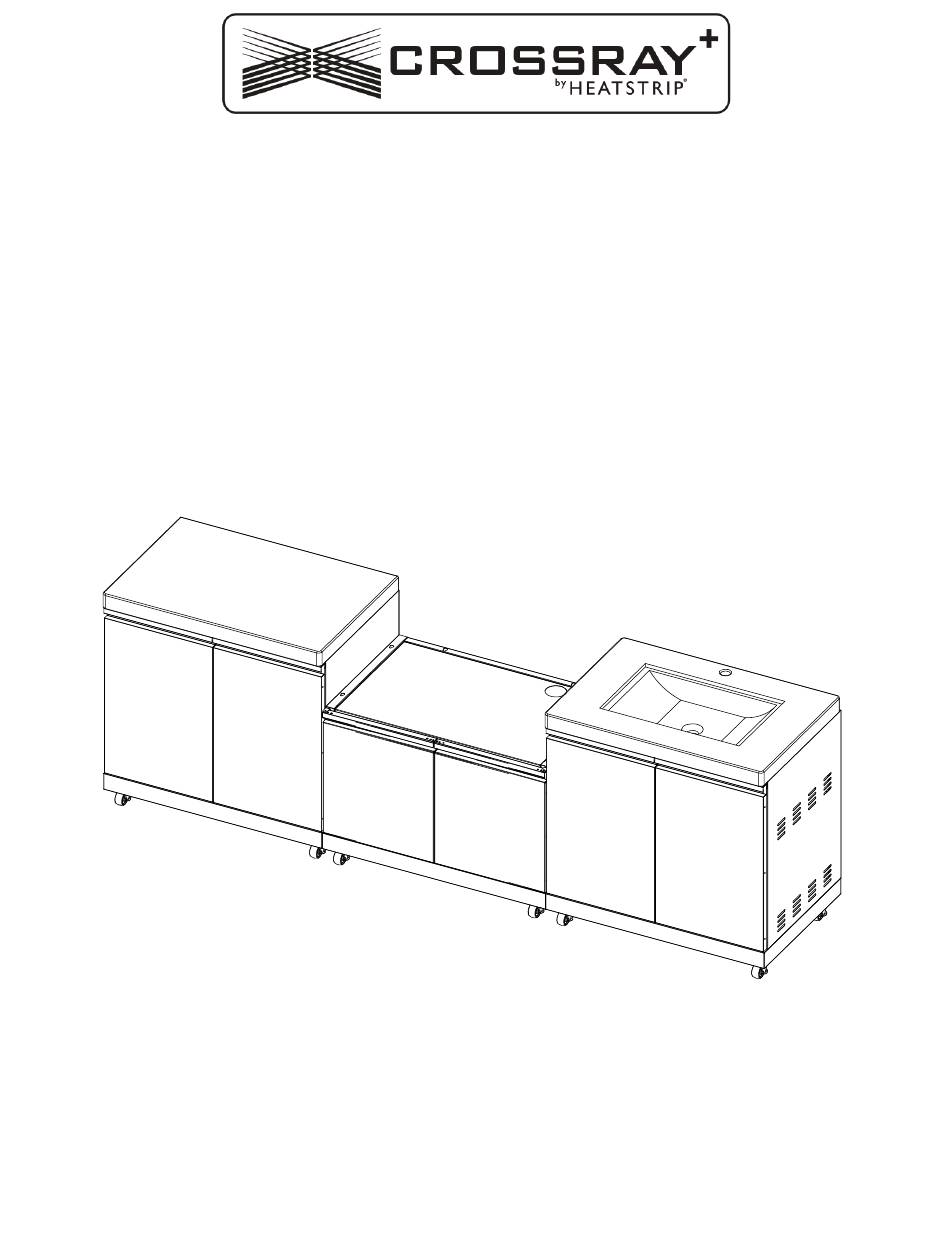

- Page 1 CROSSRAY GAS KITCHEN PRODUCT INSTALLATION MANUAL 2B + 4B SERIES crossray.com.au | 03 9562 3455 | sales@crossray.com.au...
- Page 2 Side Cabinets Install Casters. Phillips Head Screw 3/16"x3/8" Qty.16 Install Trolley side panels. Phillips Head Screw 3/16"x3/8" Qty.6...
- Page 3 Install Trolley Rear panel. Phillips Head Screw 3/16"x3/8" Qty.9 Rear panel,Upper Rear panel,Down Install Door Bracket. Phillips Head Screw 3/16"x3/8" Qty.4...
- Page 4 Install middle panel. Double screw 3/16"x3/8" Qty.4 Install the screws. Slide in the midde panel.
- Page 5 Install countertop. Phillips Head Screw M6X20 Qty.6 1. Pre-install the screws partially on the underside of the benchtop (Do not tighten to the end). Position the pre-installed Screws on cabinet（Handle with care）. Follow the same instruction to install the sink countertop.
- Page 6 Install Door 2.Press the latch on the door, and slide the door into the hole when the latch is flush with the door support piece. Tilt the door to an angle. 1.Tilt the door and insert to the hole on bottom. finish...
- Page 7 4B BBQ /2B BBQ cabinet Install Casters. Phillips Head Screw 3/16"x3/8" Qty.16 Install Trolley side panels. Phillips Head Screw 3/16"x3/8" Qty.6...
- Page 8 Install Trolley Rear panel. Phillips Head Screw 3/16"x3/8" 4B-Qty.7 2B-Qty.6 Install AGA separation panel . Double screw 3/16"x3/8" Qty.2...
- Page 9 Phillips Head Screw 3/16"x3/8" Qty.2 Install Doors Install Door－please refer to P6.
- Page 10 How to attach the cabinets together？ 1.Put all cabinets together.There are 4 screws, two through the top vents, and 2 through the bottom vents. Phillips Head Screw 3/16"x3/8" 2.Open the door of main cabinet, put 2 screws into the holes to fix with left cabinet as Qty.4 below picture shown, insert the screw close to the side of hole, as this is the most secure.
- Page 11 How to adjust the height of the caster with leveling glide. 1. 1.When you want to move the cabinet, please lift the leveling glide with wrench as shown on below image (please keep the leveling glide off the floor 3-5mm). 2.When you want to level the cabinets., please use a wrench (not included) to adjust the leveling-caster.
