Edsal UR361860 Manual

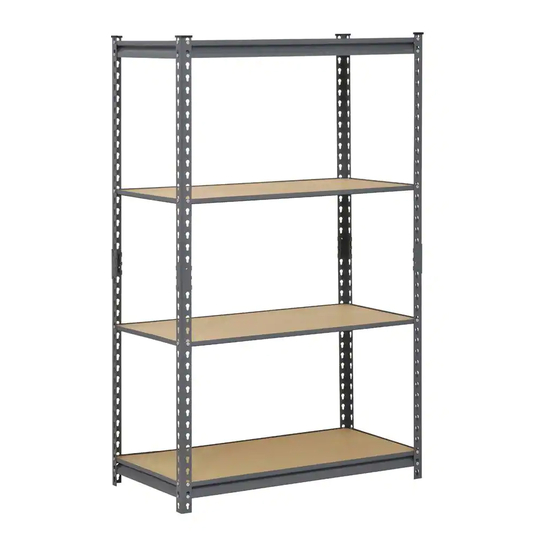

UR361860 4-Shelf 60"h x 18"d x 36"w
Description
A. double beam
B. double brace
C. single beam
D. single brace
E. post
F. wood shelf
G. coupler
H. post cap
Safety Instructions
These units should be placed on a level surface. Failure to do so can result in poor product performance or create a possible
safety hazard. This unit should be securely anchored to a wall or floor with suitable fasteners, which are not included. Do not
use this unit for anything other than the manufactures intended purpose. DO NOT STAND ON ANY PART OF THE UNIT, OR
USE IT AS A LADDER. Evenly distribute the weight on each level and always keep the heavier loads on the bottom. Use care
when working with metal parts by wearing gloves.
General Instructions
Assembly is done with the rivets of the beams and braces fitting into the slots of the post. A rubber mallet may be used on the
beams and braces to seat the rivets properly. A hammer can also be used, providing one uses a cloth or a block of wood
between the hammer head and the parts to prevent damage. Tap gently and be sure the rivets are straight and fully engaged.
Should you have any comments, damage, missing parts, or problems with assembly of this unit contact us:
Chat: www.edsal.com/chat or www.edsal.com/contact
Email: support@edsal.com
Phone: 773-475-3131
Model Number, Part Number & Description, Location Purchased, and Date Purchased
Steel Storage Rack
A. Double Beam
C. Single Beam
Qty Part Number
4 URBM36-GRY
4 URBR18-GRY
4 URBM36S-GRY
4 URBR18S-GRY
8 URPS36-GRY
4 RPB31836
4 CPOUT-GRY
4 RL-PC.B1.4
To obtain replacement parts please provide:
F. Wood Shelf
G. Post Coupler
MODEL NUMBER
UR361860
B. Double Brace
D. Single Brace
H. Post Cap
Edsal Manufacturing Co.
Chicago, IL 60609
US Patents & Patents Pending
Assembled in USA
using global components
E. Post
Rev: C07052018
