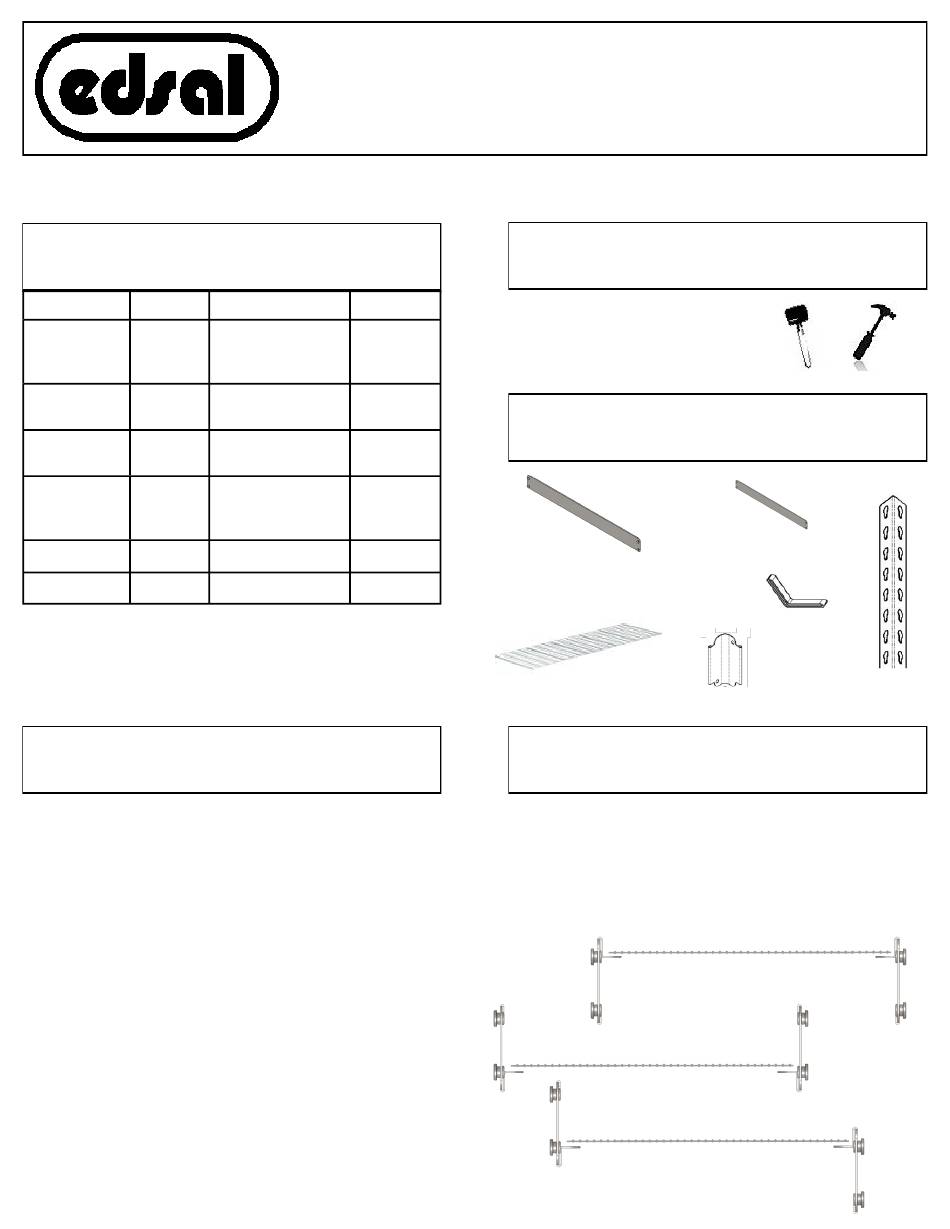

Edsal TRK-361860W4 Assembly Manual

Edsal Tri-Rack Heavy Duty Storage Unit
Contents
Description Quantity
8
A: beam 10
10
B: brace 8
10
C: post 8
8
4
D: shelf 5
5
E: coupler 4
F: post cap 4
General Instructions
Assembly of this unit is done by fitting the rivets of the
beams and braces into the slots of the posts.
A rubber mallet should be used on the ledge of the
beams and braces to properly seat the rivets.
The wire deck will rest on the ledge surface of the
beam or brace depending upon the orientation of the
shelf level.
A rivet should engage and fit firmly into the tapered
slot of the post. This engagement is into a tapered slot
and will apply resistance as it engages. A visual in-
spection should be made to show that the rivet is prop-
erly engaged in the slot.
A rubber mallet is the recommended tool. If a hammer
is used care should be taken to protect the beam or
brace surface to avoid damage by using a protective
cloth or block of wood. Tap gently to assure that all
rivets are straight and engaged. After assembly re-
check each beam and brace for engagement.
Refer to "Shelf Position Chart" for ideal shelf spacing.
Part Number Size
TBE36BLK 36"
TBE48BLK 48"
TBE60BLK 60"
TBE18BLK 18"
TBE24BLK 24"
UPT30BLK (60") 30"
UPT39BLK (78") 39"
RWD1836SF 18" x 36"
RWD2448SF 24" x 48"
RWD2460SF 24" x 60"
CPIDSPBLK - - -
RLPC - - -
Model Numbers & Sizes
TRK-361860W4 (36"w x 18"d x 60"h x 4 levels)
TRK-482478W5 (48"w x 24"d x 78"h x 5 levels)
TRK-602478W5 (60"w x 24"d x 78"h x 5 levels)
Tools Required
Rubber Mallet (preferred) or
Hammer (protect surface with
cloth or wood block)
Components
A: beam (long)
D: wire shelf
Assembly Options
This unit can be assembled by positioning the beams
and braces in one of two different orientations and
combinations: beams and braces facing upwards or
beams and braces facing downwards. Each shelf level
can then be used as utilized as a) standard flush shelf,
b) recessed tray, or c) combination of shelf and tray.
b) RECESSSED TRAY
c) COMBINATION SHELF & TRAY
B: brace (short)
F: post cap
E: coupler
a) STANDARD FLUSH SHELF
... create a four-sided tray
... create a flush front with raised sides
C: post
