SYStronics STH-PD5N F User Manual

Humidity sensor for record output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

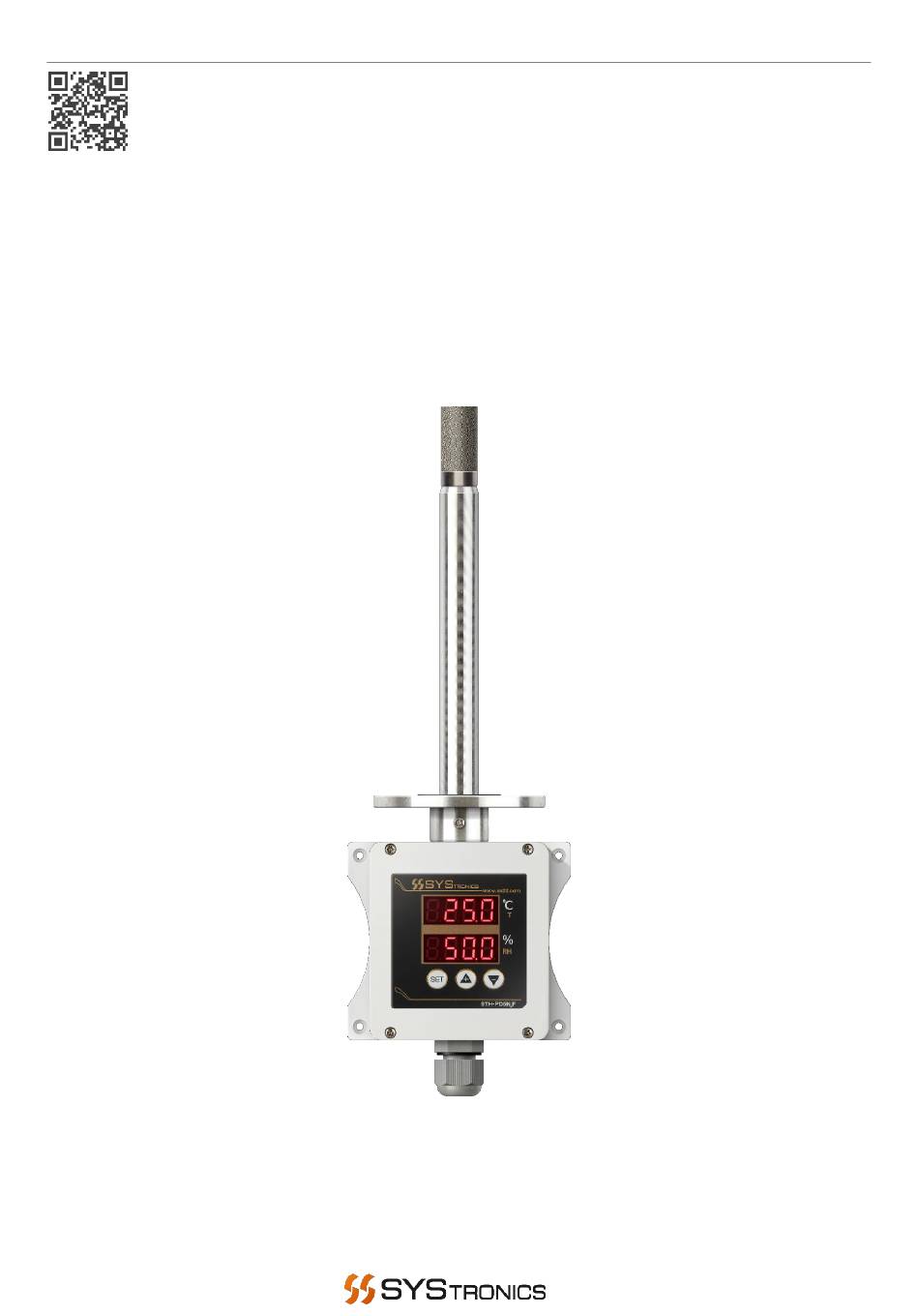

STH-PD5N_F MANUAL
SYStronics. Co. ltd.,
VER:201805-1.0

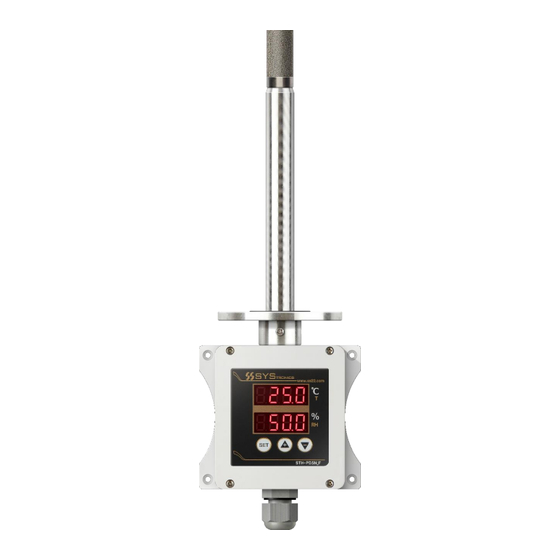

Duct Type Temperature·Humidity Sensor for Record Output
STH-PD5N F -
USER MANUAL
1404, 301, Bucheon Techno park, 345, Seokcheon-ro, Bucheon-si, Gyeonggi-do, Republic of Korea
Phone : +10-32-324-2777
Fax : +10-32-324-2717
Homepage : www.ss22.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STH-PD5N F and is the answer not in the manual?

Questions and answers

Related Manuals for SYStronics STH-PD5N F

Summary of Contents for SYStronics STH-PD5N F

  • Page 1 STH-PD5N_F MANUAL SYStronics. Co. ltd., VER:201805-1.0 Duct Type Temperature·Humidity Sensor for Record Output STH-PD5N F - USER MANUAL 1404, 301, Bucheon Techno park, 345, Seokcheon-ro, Bucheon-si, Gyeonggi-do, Republic of Korea Phone : +10-32-324-2777 Fax : +10-32-324-2717 Homepage : www.ss22.com...
  • Page 2 STH-PD5N_F MANUAL Precautions Be sure to read and ensure that your safety precautions are used to protect your safety and prevent property damage. We shall not accept any liability for any loss caused by the use or carelessness caused by the use or handling of this manual.

  • Page 3: Product Overview

    STH-PD5N_F MANUAL Product Overview equipped with temperature · humidity sensor elements. This sensor is designed STH-CD5N_F is for duct installation. It is easy to use in the field where the temperature and humidity need to be precisely And It is a product that can monitored such as the thermo-hygrostat, low-temperature warehouse.

  • Page 4: Product Component

    STH-PD5N_F MANUAL Product Component Detailed Structure of Product Sensor sintering Nickel Plating Sensor probe Aluminum Duct bracket Aluminum Sensor body FND Display 4 Digit FND x 2EA Control unit Button Key Duct fastening screw 4EA M4 × 6 Cable grand Body fastening screw 4EA M3 ×...

  • Page 5: Product Specifications

    STH-PD5N_F MANUAL Product Specifications Temperature Sensor Specifications Measuring Range -20.0 ~ 80.0℃ Accuracy ±0.3℃ (Max ±0.4℃) Resolution 0.015℃ Reaction Time 2.0 sec Humidity Sensor Specifications Measuring Range 0 ~ 100% RH Accuracy ±3% RH (Max ±4.5% RH) Resolution 0.01% RH Reaction Time 8.0 sec Controller Specifications...

  • Page 6: Product Dimension

    STH-PD5N_F MANUAL Product Dimension (Unit : mm) Top view Duct bracket Front view Side view...

  • Page 7: Product Installation Method

    STH-PD5N_F MANUAL Product Installation Method 1. Perform perforation (Ø16.5) according to the duct installed the sensor. Please take into consideration the depth at which the sensor probe is to be inserted and the installation environment. 2. Position the protruded part of the duct bracket so that it faces outward and fix it with 4 duct fixing screws (M4).
  • Page 8 STH-PD5N_F MANUAL Product Installation Method 3. Duct bracket Insert the sensor probe into the hole at the required depth and direction, and fix it firmly to the bracket using the sensor fixing screw (MX).
  • Page 9 STH-PD5N_F MANUAL Product Wiring Method Wiring Precautions 1. When wiring, check the polarity and connect the wiring correctly. 2. To avoid malfunction, avoid the use of the same conduit or the same duct for the wiring of high-voltage lines and power lines and sensors. 3.

  • Page 10: How To Set Up The Product

    STH-PD5N_F MANUAL How to set up the product Notes on Setting 1. Since it is set as follows inside the sensor when opening the front cover, refer to it when connecting. 2. When shipped from the factory, it will be shipped with the specifications requested in advance. Please refer to the following documents when changing the analog output specifications.

  • Page 11: Operating Function

    STH-PD5N_F MANUAL Operating Function Structure of Operation Part Temp. Display Humi. Display Decrease Button Setting Increase Button Button Function of the Control Panel Name Image Contents Enter setting screen. (Hold for 2 seconds) Setting Button Go to settings menu. (Short press) Save setting value and return to monitoring screen.
  • Page 12 STH-PD5N_F MANUAL Setting Screen Flow Chart Hold for 3 seconds Hold for 3 seconds Main Display Temp. Calibration Upper Limit Humi. Save set value and return to the main screen Pressing the setting button for 3 seconds on each setting screen save the setting value and return to the main screen.

  • Page 13: Setting Screen

    STH-PD5N_F MANUAL Setting Screen Setting Screen Description Item Set. Value Start Value Contents Temperature compensation function when current temperature differs from actual room temperature value. Temp. -9.9 ~ 0℃ If the temperature of the room is 20.0 ℃ and the temperature of the monitor is 18.0℃, Calibration 9.9℃...

  • Page 14: Alarm Screen

    STH-PD5N_F MANUAL Alarm Screen Alarm Screen Description Item Setting Range Causes Solution Temp. 1. Confirm that you are using the Alarm occurs when the temperature Sensor temperature measurement within the sensor is Short or Open. Check possible range. 1. Confirm that you are using the humidity measurement within the possible range.
  • Page 15 Service Charge The warranty period for SYStronics products is 1 year after purchase. (Warranty period for humidifier parts is 4,000 hours of operation time.) To ensure use of the product in a mint condition for a long period of time, be sure to familiarize yourself with the precautions and instructions specified in the manual.
  • Page 16 STH-PD5N_F MANUAL...
