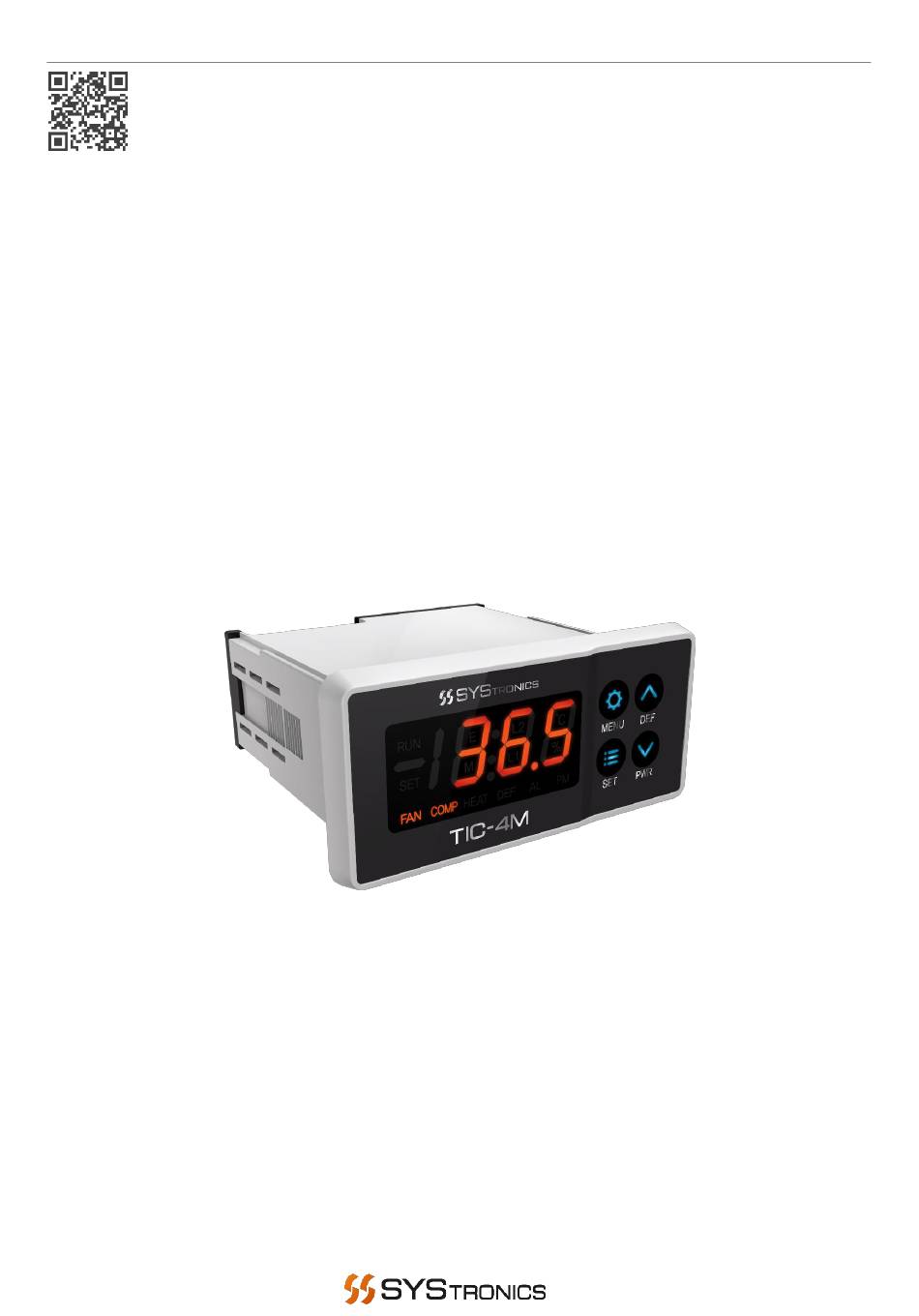

- Page 1 TIC-4M MANUAL SYStronics. Co. ltd., VER 1.0 Compact Temperature Controller TIC-4M USER MANUAL 1404, 301, Bucheon Techno park, 345, Seokcheon-ro, Bucheon-si, Gyeonggi-do, Republic of Korea Phone : +10-32-324-2777 Fax : +10-32-324-2717 Homepage : www.ss22.com...
- Page 2 TIC-4M MANUAL Precautions Be sure to read and ensure that your safety precautions are used to protect your safety and prevent property damage. We shall not accept any liability for any loss caused by the use or carelessness caused by the use or handling of this manual.
-
Page 3: Product Overview
TIC-4M MANUAL Product Overview Temperature Controller is a dedicated controller for cooling, refrigerating, cooling, The TIC-4M and heating operation, It is possible to use up to 4 ports of output and 1 ports of temperature sensing port. You can also change the temperature monitoring port to input 2 ports by setting the temperature monitoring port according to the setting conditions, and customize it to suit the site conditions. - Page 4 TIC-4M MANUAL Product Component Controller Bracket (1EA / TIC-4M) (2EA) Sensor Component (Choose one of the four sensor) Normal type Advanced NTC High temperature Well type NTC NTC sensor sensor type NTC sensor sensor (1EA / SCTS-01) (1EA / SCTS-02)
-
Page 5: Product Specifications
TIC-4M MANUAL Product Specifications Controller Specifications Input Power 220VAC, 50/60Hz Output Voltage 220VAC, 50/60Hz Output Capacity 250VAC, 5A (Relay output) Output Port 4 Port (Input power output) Input Port 2 Port (Non-power source) / Changeable to temperature sensor input Sensor Port 1 Port (NTC : 10K at 25℃... - Page 6 TIC-4M MANUAL Sensor Specifications Normal type cable sensor (SCTS-01) Temperature Range -45 ~ 80℃ (NTC : 10K at 25℃ ±1%) Sensor Weight 58g (Cable 3M standard) Advanced type cable sensor (SCTS-02) Temperature Range -45 ~ 105℃ (NTC : 10K at 25℃ ±0.5℃) Sensor Weight 37.5g (Cable 3M standard)
- Page 7 TIC-4M MANUAL Product Dimension Controller Dimension Top view Display 42.5 x 20.3 Front view Side view Bracket Dimension Front view Side view...
- Page 8 TIC-4M MANUAL Product Installation Method 1. After performing the work (72 mm x 30 mm) in accordance with the specification, insert the controller into the perforated holes. 2. Push the controller onto the wall and secure it firmly by pushing the bracket. When disconnecting, remove...
- Page 9 TIC-4M MANUAL Product Wiring Diagram Relay 220VAC / 5A Sensor INPUT - COM DI1 DI2 DO1 DO2 DO3 DO4 220VAC COMP circuit 220VAC breaker Input function, input contact RS-485 Set output function (DO3, DO4) setting possible...
- Page 10 TIC-4M MANUAL Operating Function Operating Engineer Comms.1 Menu lamp lamp Status lamp Manual Comms.2 Temp. Menu lamp lamp lamp Setting menu Comp. Defrost lamp lamp lamp Alarm Heater lamp lamp lamp Name Image Contents Return to Settings screen or return to previous screen.
- Page 11 TIC-4M MANUAL Setting Menu Setting menu Flow Chart If you want to cancel the data change In the menu, press the MENU key go to The previous menu. Change Cancel Run or stop display Setting temperature Change setting temperature Change completed...
- Page 12 TIC-4M MANUAL Manual Menu Manual menu Flow Chart Main Display Push for more the 5sec. Parameter Set. Defrost Set. Alarm Set. Integration Time Equip. Number Defrost Mode Comp. Alarm Fan Integration Time Defrost Cycle Heater Alarm Power Comp. Recovery Integration...
- Page 13 TIC-4M MANUAL Manual Menu Parameter Setting Category Display Set.value Start value Contents Set the address by setting the equipment number when using Remote Equip. 1~99 Number Supervisory Control. Set the delay time for the blackout and the driver to operate the concurrent controller.
- Page 14 TIC-4M MANUAL Manual Menu Alarm Setting Category Display Set.value Start value Contents If the input to the COMP status input is detected or not detected during the set time after the COMP output Set the detection time so that an alarm Comp.
- Page 15 TIC-4M MANUAL Engineer Menu Engineer menu Flow Chart Main Screen Push for more the 5sec. Push for more the 5sec. Parameter Setting System Set. Alarm Set. Display Set. Output 3 Set. Comp. Alarm Return Temp. Display Interval Output 4 Set.
- Page 16 TIC-4M MANUAL Engineer Menu System Setting Category Display Set.value Start value Contents Output The function to set the output of 3 port. Output 3 H.T / dEF H.t (heater) / dEF (defrost) Set. Output 4 Output The function to set the output of 4 ports.
-
Page 17: Alarm List
TIC-4M MANUAL Alarm List Category Display Occur Cause Alarm Occurrence An alarm occurs if fan alarm input is detected or All outputs stop when an alarm occurs. When not detected according to input contact set the alarm returns, the alarm is canceled and the... - Page 18 TIC-4M MANUAL Factory Reset Push for more the 2sec. Push for more the 10sec. Factory Reset Complete Main Screen Factory Reset Menu Notice : All settings on the controller Push for more Factory Reset Cancel will return to their initial state.
- Page 19 Service Charge The warranty period for Systronics products is 1 year after purchase. (Warranty period for humidifier parts is 4,000 hours of operation time.) To ensure use of the product in a mint condition for a long period of time, be sure to familiarize yourself with the precautions and instructions specified in the manual.
- Page 20 TIC-4M MANUAL Precautions Electronic control equipment has different operating characteristics from electromechanical equipment. Safety instructions for the application, installation and maintenance of the electronic control unit, important differences between the electrical and electronic control unit and the electric machine, and contents of the use for the electric control unit.
- Page 21 TIC-4M MANUAL Precautions Cable shield treatment The cables that require shielding are those that are driven by the inverter and special motors. We recommend using a shielded cable as shown in the figure below where there is a lot of noise or precise signal is required.
- Page 22 TIC-4M MANUAL Precautions Isolation operation for cable noise Isolation operation for cable noiseThe wiring of the microcomputer input / output wiring and the AC input terminal must be separated from each other to prevent noise from occurring. Incorrect Good AC input terminal wiring...
- Page 23 TIC-4M MANUAL...
