Operating Instructions

<Basic>

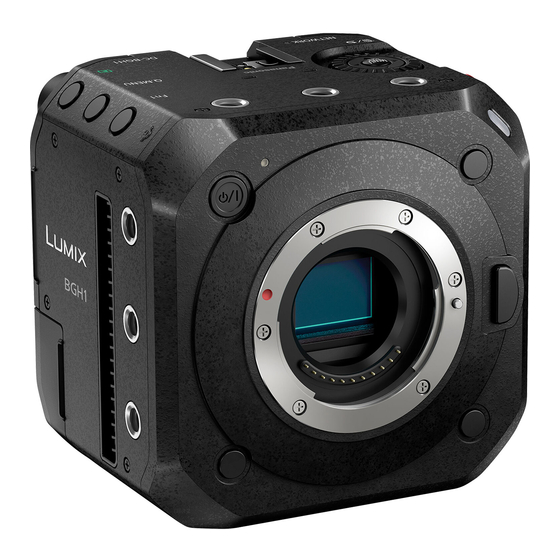

Digital Camera

DC-BGH1

Model No.

Please read these instructions carefully before using this product, and save

this manual for future use.

More detailed operating instructions are available in "Operating

Instructions" (HTML/PDF).

https://panasonic.jp/support/dsc/oi/BGH1/

DVQX2130ZA

M1020KZ0

Table of Contents

Summary of Contents for Panasonic Basic DC-BGH1

Page 1 Operating Instructions <Basic> Digital Camera DC-BGH1 Model No. Please read these instructions carefully before using this product, and save this manual for future use. More detailed operating instructions are available in “Operating Instructions” (HTML/PDF). https://panasonic.jp/support/dsc/oi/BGH1/ DVQX2130ZA M1020KZ0...
Page 2: Before Use
Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read this document carefully and keep it handy for future reference. Please note that the actual controls and components, menu items, etc.
Page 3 • For details on the connection cables, please check the interface of the “Specifications”. (16) Remote Control Software/App https://panasonic.jp/support/global/cs/dsc/ (English only) LUMIX Tether This is a PC software that allows you to record and make settings while controlling the camera and checking the live view. (You can record photos (still images) using this software.)
Page 4: Table Of Contents
Contents Before Use........................ 2 Information for Your Safety ..................4 Cautions for Use ....................7 Standard Accessories ..................... 9 Optional Accessories ..................10 Names of Parts ...................... 11 Getting Started ....................... 13 Power supply ....................13 Connecting the external monitor ..............13 Menu Operation Methods ..................
Page 5 For Thailand only This telecommunication equipment conforms to NTC/NBTC technical requirement. ■ About the battery pack • Always use genuine Panasonic batteries (AG-VBR59, AG-VBR89, AG-VBR118). • If you use other batteries, we cannot guarantee the quality of this product. CAUTION •...
Page 6 Information for Your Safety ■ About the AC adaptor (supplied) CAUTION! To reduce the risk of fire, electric shock or product damage, • Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated. •...
Page 7: Cautions For Use
Information for Your Safety Cautions for Use • Do not use any other AC cables except the supplied one. • Use a high speed HDMI cable (Type A - Type A plug) that is compatible with 4K and has an HDMI logo. •...
Page 8 Information for Your Safety • To clean your camera, remove the battery or a card, or disconnect the power plug from the outlet, and wipe with a soft, dry cloth. • Do not press the lens with excessive force. • Do not allow camera to come into contact with pesticides or volatile substances (can cause surface damage or coating to peel).
Page 9: Standard Accessories
Standard Accessories Digital camera body (Digital camera body is referred to as camera in this document.) Check that all the accessories are supplied before using the camera. (Product numbers correct as of October 2020.) Body cap  AC adaptor • This is used for power supply. VKF4971 SAE0011A Hot shoe cover ...
Page 10: Optional Accessories
Keep the memory card out of reach of children to prevent swallowing. • The Interchangeable lens is optional. • Consult the dealer or Panasonic if you lose the supplied accessories. (You can purchase the accessories separately.) • Please dispose of all packaging appropriately.
Page 11: Names Of Parts
Names of Parts Status indicator [DC IN 12 V] terminal Fn button (Fn2) Cable lock band attachment part Front tally lamp Fn button (Fn3) Lens release button Tripod mount • There are a total of 11 places for REMOTE terminal cover the tripod mount wherein there •...
Page 12 Names of Parts 26 27 Security Slot Video rec. button • Attaching anti-theft equipment Stereo microphone can prevent theft. We are not • Do not block the microphone liable for damages that may with a finger. Audio will be occur resulting from theft. difficult to record.
Page 13: Getting Started
Getting Started Power supply You can supply power to the camera using an AC adaptor (supplied), a PoE+ compatible switching hub or PoE+ compatible injector (commercially available), and a battery pack (optional). Example: Supplying power with an AC adaptor • Do not use any other AC adaptors except the supplied one. This may cause malfunction. •...
Page 14: Menu Operation Methods
Menu Operation Methods In this camera, the menu is used for setting a wide variety of functions and performing camera customizations. Press [MENU/SET] to display the menu. Use cursor buttons/control dial to select the menu item. Press [ ] several times to close the menu. •...
Page 15: Specifications
Specifications The specifications are subject to change for performance enhancement. It is possible to record photos (still images) using software “LUMIX Tether”. Digital camera body (DC-BGH1): Information for your safety Power source: 12 V Power consumption: 7.9 W (when recording), 6.7 W (when playing back) <When using the interchangeable lens (H-ES12060)>...
Page 16 Interface [REMOTE] Ø2.5 mm jack Terminal for generic remote control unit (A Panasonic shutter remote control (DMW-RS2) cannot be used.) [DC IN 12 V] DC 12 V (11.4 V to 12.6 V) EIAJ Type 4 [MIC] Ø3.5 mm stereo mini jack Headphones Ø3.5 mm stereo mini jack...
Page 17 • When using in low temperatures (-10 °C to 0 °C (14 °F to 32 °F)) – Before use, attach a Panasonic lens with a minimum recommended operating temperature of -10 °C (14 °F). Permissible relative...
Page 18 Specifications AC adaptor (Panasonic SAE0011A): Information for your safety Input: 100 V–240 V 50/60 Hz 1.2 A 79 VA (100 V ) - 99 VA (240 V Output: 12 V 3.0 A The symbols on this product (including the accessories) represent the following: Class II equipment (The construction of the product is double-insulated.)
Page 19: Trademarks And Licenses
• The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. • The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance ®...
Page 20 [Setup] → [Others] → [Firmware Version] → [Software info]. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine- readable copy of the corresponding source code covered under GPL V2.0 or LGPL...
Page 21 Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the product, without charge for parts or labour, if in the opinion of Panasonic the product is found to have a manufacturing defect within one (1) year or (12 months) (the “warranty period”) from the date of purchase appearing on your purchase receipt.
Page 22 If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
Page 23 DVQX2130 (ENG)
