ADVANCED Network Devices AND-BTN-KIT-1 Installation

OVERVIEW

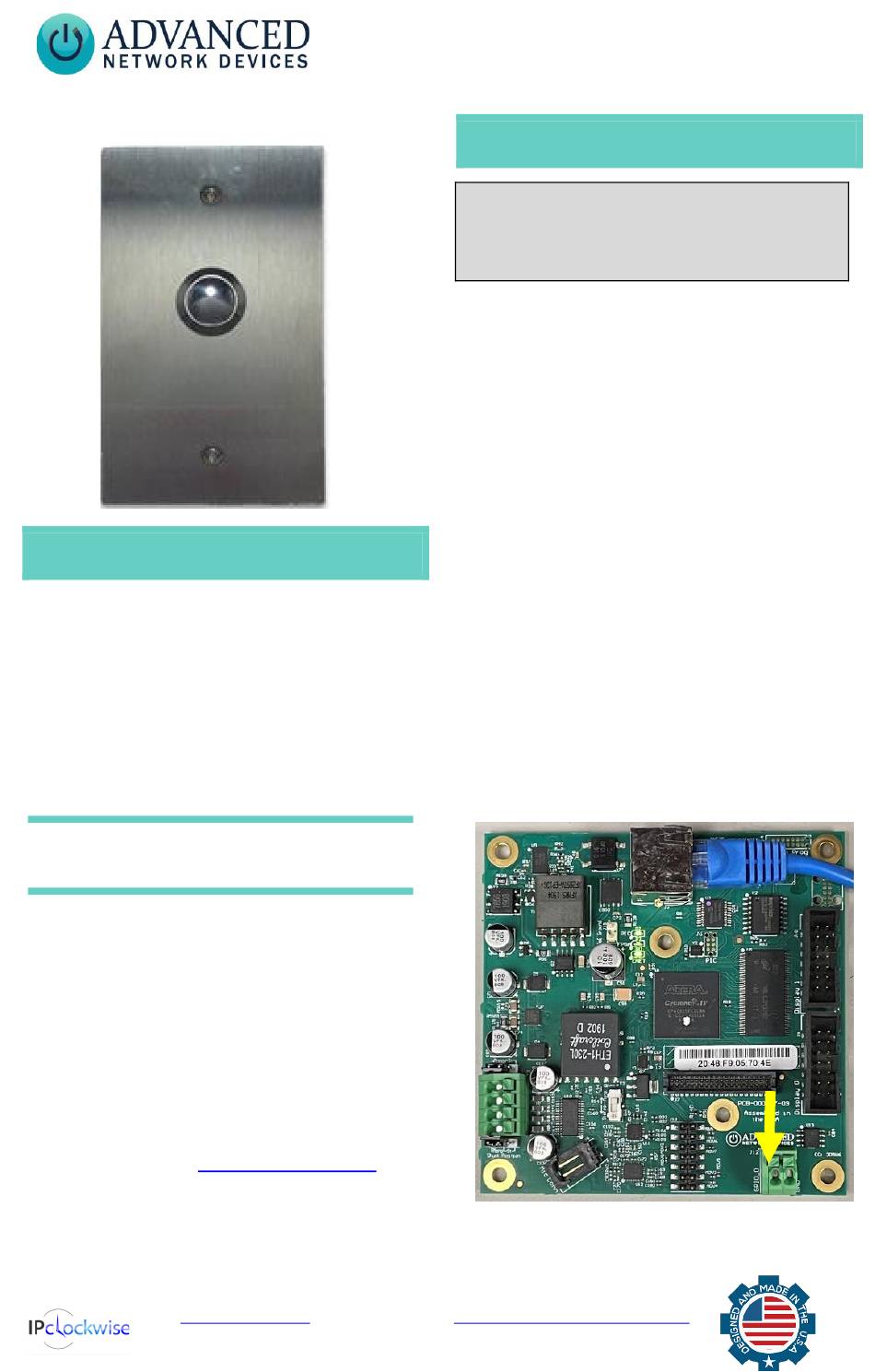

The AND Call Button Kit (AND-BTN-
KIT-1) includes a momentary push
button with wall plate. The button
connects to the general purpose
input of an AND device.
NOTE: LEGACY DEVICE
COMPATIBILITY CONSIDERATION
Older devices with a MAC address
less than 20:46:F9:05:30:00 require
an AND-PIA-2 card (AND-PIA-2D for
IPSIGNL-RWB or IPCDS-RWB) to
interface with the button, except for
the ZONEC2 which can directly
connect to the button. Contact AND
tech support (tech@anetd.com) for
more information
determining product compatibility.
Advanced Network Devices • 3820 Ventura Dr. Arlington Hts. IL 60004
tech@anetd.com
Call Button Kit Installation

WIRING

Use 18 - 22 AWG stranded or solid
core wire for connection between
the button and the AND device.
Strip the device end of the wires to
8mm. Connect the wires to the two
inputs on the GPIO 0 terminal of
the device by pushing down on the
terminal tabs and inserting the
wires into the terminal holes.
Polarity of the wires does not
matter. Strip and connect wires at
other end of run to screw terminals
of button.
sensing, press the button.
or help
• 847-463-2237 • www.anetd.com/user-support/
1
Warning: Remove power prior to
installation to avoid possible damage
of components.
To trigger the input
(AND-BTN-KIT-1)
v1.5
