Safco 8916 Assembly Instructions

Sort and count your parts!

PARTS LIST

LETTER
DESCRIPTION
CODE
A
Back Panel
B
Left Side Panel
C
Right Side Panel
D
Shelf
E
Top
F
Locking Cam
G
Screw Post
When ordering replacement parts,
please specify color.
TOOLS REQUIRED: Phillips Screwdriver

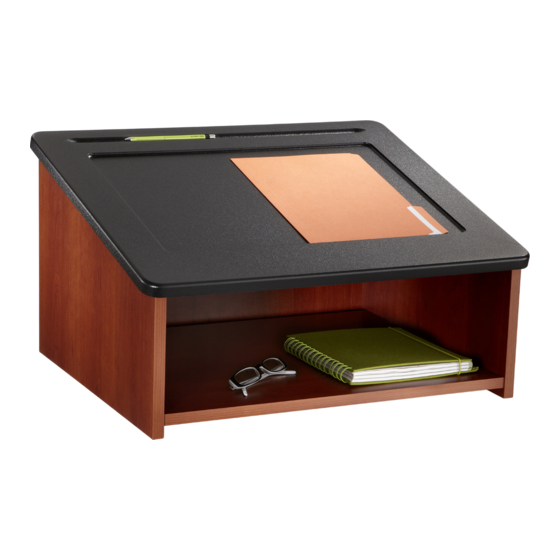

ASSEMBLED UNIT
1
Work on a smooth, clean surface. Locate the
A Back Panel and position it with the large
holes upward (the beveled edge is the upper
end of this panel). Arrange the B Left Side
Panel and the C Right Side Panel on the left
and right sides of the Back Panel with the
holes upward and the slanted ends toward the
upper end of the Back Panel. Place the D
Shelf at the bottom. Put the E Top Panel
at the upper end of the Back Panel with the
holes up.
Insert F Cams into the large holes on the
Shelf, Left Side Panel, Right Side Panel and
Back Panel with the arrows pointing toward
the nearest SIDE edge.
Screw the G Screw Posts into the smaller
holes on the Left Side Panel, Right Side Panel
and Top Panel.
8916-37: 1 of 2; 04/02
Tabletop Lectern
ASSEMBLY INSTRUCTIONS
QTY. PART NO.
1 8916-01
1 8916-02
1 8916-03
1 8916-04
1 8916-05
12 HFFMFC
12 HFFMFB
MODEL 8916
Safco Products Company, New Hope, MN 55428
E
A
B
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
BEVELED
EDGE
E
G
B
NUMBER
G
D
(English-speaking operators)
F
A
8916
MODEL
C
F
C
D
