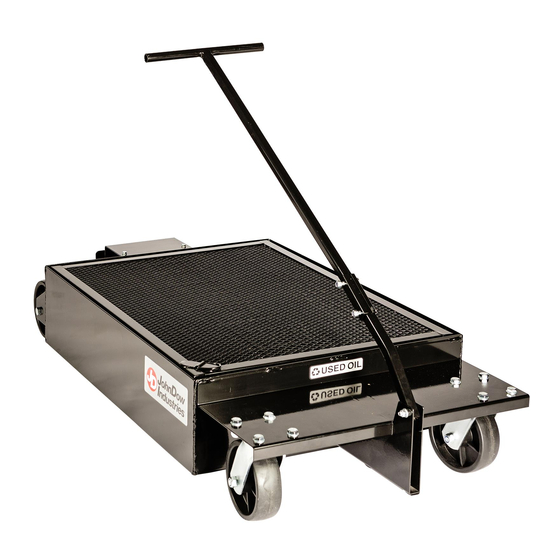

- Page 1 ™ 25-GALLON LOW-PROFILE PORTABLE OIL DRAIN with ELECTRIC EVACUATION PUMP USER’S MANUAL Part No. JDI-LP5 READ AND SAVE THIS MANUAL FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM 02425 10522 151 Snyder Ave. Barberton, OH 44203 Rev 3/2021...
- Page 2 General Information DANGER Read equipment manual and this material before using this drain. DANGER DANGER Indicates a hazardous situation that, if not avoided, could result in death or serious injury. WARNING • Oil is flammable. Keep away from heat, sparks, and open flames as an explosion will result in severe personal injury including death.
- Page 3 GETTING STARTED Before assembly, ensure you have all parts according to the components list below. If any parts are missing or damaged, contact us for replacement. COMPONENTS Item Item Item Description Qty. Description Qty. Description Qty. Tank M10 Flat Washer 3/4”...
- Page 4 ASSEMBLY INSTRUCTIONS 1. Assemble M12 flat washer [15], nut [16], and hex head screw [14] to wheels [13] using 19mm socket and wrench (Figure 1). 2. Assemble four M10 hex head screws [9], four M10 nuts [12], and eight M10 flat washers [10] per caster [11] using 17mm socket and wrench (Figure 2).
