Summary of Contents for IKEA EDSVIK

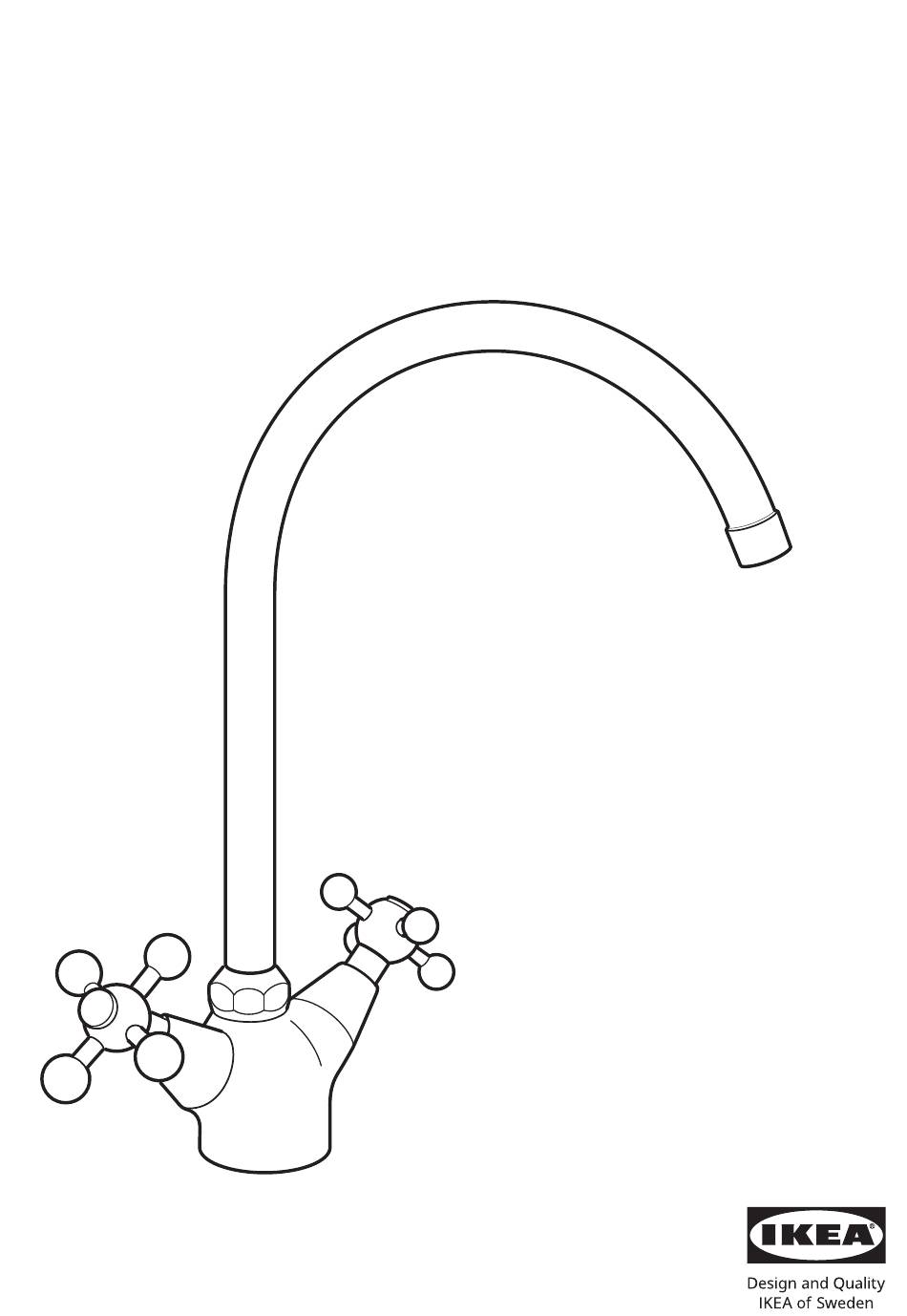

- Page 1 EDSVIK...
- Page 2 English Français Español Installation must be performed in compliance L’installation doit être réalisée en conformité avec La instalación debe realizarse siguiendo las with current local construction and plumbing les normes actuelles relatives à la construction normativas actuales sobre construcción y regulations.
- Page 4 bar psi 1 - 5 bar 60˚C 0,1 - 0,5 MPa 140˚F 14,5 - 72.5 psi Max. 80˚C 0,5 - 10 bar Max. 176˚F 0,05 - 1 MPa 7,2 - 145 psi 9/16" x 24 UNEF AA-2258647-1...
- Page 5 English Français Español Seal the open surfaces with silicone to prevent Appliquer un joint de silicone sur les interstices Aplicar silicona en las juntas para evitar que water from penetrating the worktop upon any pour éviter les infiltrations d'eau dans le plan de penetren líquidos en la encimera en caso de fuga.
- Page 6 34 - 37mm 34 - 37mm 1 3/8" - 1 7/16" 1 3/8" - 1 7/16" Max 50 mm Max 2" AA-2258647-1...
- Page 7 English Español IMPORTANT! Do not tighten too hard: this can ¡ATENCIÓN! No aprietes demasiado, ya que se damage hoses/pipes and washers. pueden dañar las tuberías/conductos y las juntas. Français ATTENTION ! Ne pas serrer trop fort : cela pourrait abîmer les flexibles/tuyaux et les joints.
- Page 8 English Français Español Before use: Unscrew the Aerator/Flow Guide and Avant utilisation : dévisser l'aérateur/guide Antes de utilizarlo: desenrosca el aireador/guía de allow the water to run freely for a few minutes. d'écoulement et laisser couler pendant quelques desagüe y deja correr el agua libremente durante Then screw the Aerator/Flow Guide back in place.
- Page 9 9/16" x 24 UNEF...
- Page 10 AA-2258647-1...
- Page 12 © Inter IKEA Systems B.V. 2020 2020-09-07 AA-2258647-1...
Need help?
Do you have a question about the EDSVIK and is the answer not in the manual?
Questions and answers

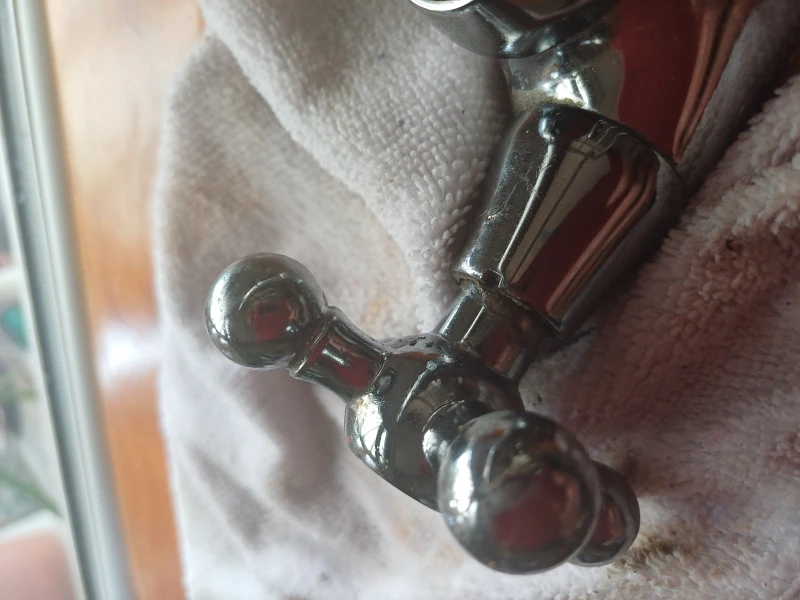

hAVE A LEAKING HOT WATER TAP HAVE REMOVED THE INTERIOR SCREW THE TAP SHOULD SLIDE OFF BUT IS STUCK FAST
To remove a stuck IKEA EDSVIK hot water tap after removing the interior screw, follow these steps:
1. Make sure the aerator/flow guide has been unscrewed.
2. Ensure water has been turned off and pressure released by running the tap.
3. Grip the tap body firmly and try to gently twist or pull it free. Do not use excessive force to avoid damaging hoses, pipes, or washers.
4. If stuck, check for any remaining fasteners or mineral build-up that may need cleaning.
Do not overtighten or force components, as this may cause damage.
This answer is automatically generated
