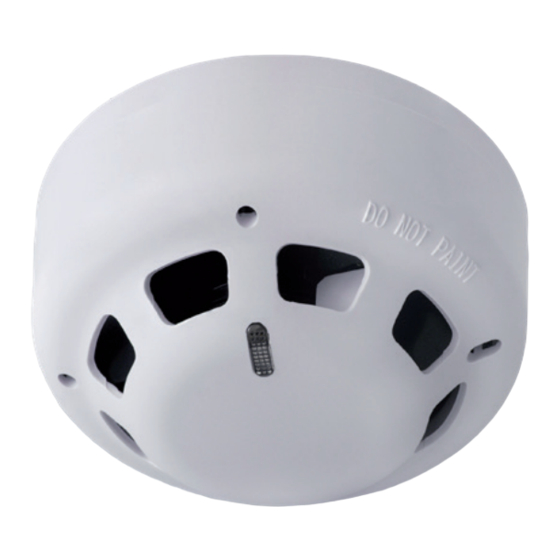

SOC-E3N Optical smoke detector
and YBO-R/6R socket
Technical Data
Functional principle:
scattered light (Tyndall effect)
Certifications:
LPCB (GB):
certified iaw. EN 54-7
VdS (D) detector cavity: VDS G 217088
Power supply:
12 – 30 V DC
Operating current:
approx. 0.04 mA
Alarm current:
approx. 40 mA
Operating temperature: -10 – +50 °C
Max. humidity:
95 % RH, non-condensing
Detector housing:
white polycarbonate
with insect guard
Socket:
white polycarbonate
Weight:
approx. 160 g
Contamination alarm:
red LED flashing at 3s Intervals
Smoke alarm:
red LED continuously lit
Alarm relay
contact load:
24 V DC / 1A
with service alarm indicator
General information
The optical detector provides early warning for incipient fires
with smoke, in particular smoldering fires.
The sensor cavity houses a light sensor and receiver.
Normally, the pulsing light ray from the transmitter does not
reach the receiver.
If smoke particles enter the sensor cavity or if the sensor cavity
is heavily contaminated, a portion of the light is reflected to the
receiver resulting in an alarm trigger.
A red LED indicates the smoke alarm. The alarm remains active
until it is manually reset at the control unit (voltage reset).
The detector design ensures enhanced resistance to interfe-
rence from air speeds, contamination, and EMC interference.
The detector module is mounted to the socket with a bayonet
lock and facilitates straightforward operation of the detector.
Fasten the smoke detector to the socket after removing the
plastic tab from the socket base.
As contamination builds up, the detector progressively
approaches the alarm threshold. The sensor is equipped with
a contamination indicator. When the contamination limit has
been reached the red LED starts flashing at 3-s intervals. Then
the detector must be cleaned by manufacturer or replaced.
If this is not done, the detector will indicate an alarm (red LED)
after additional contamination builds up.

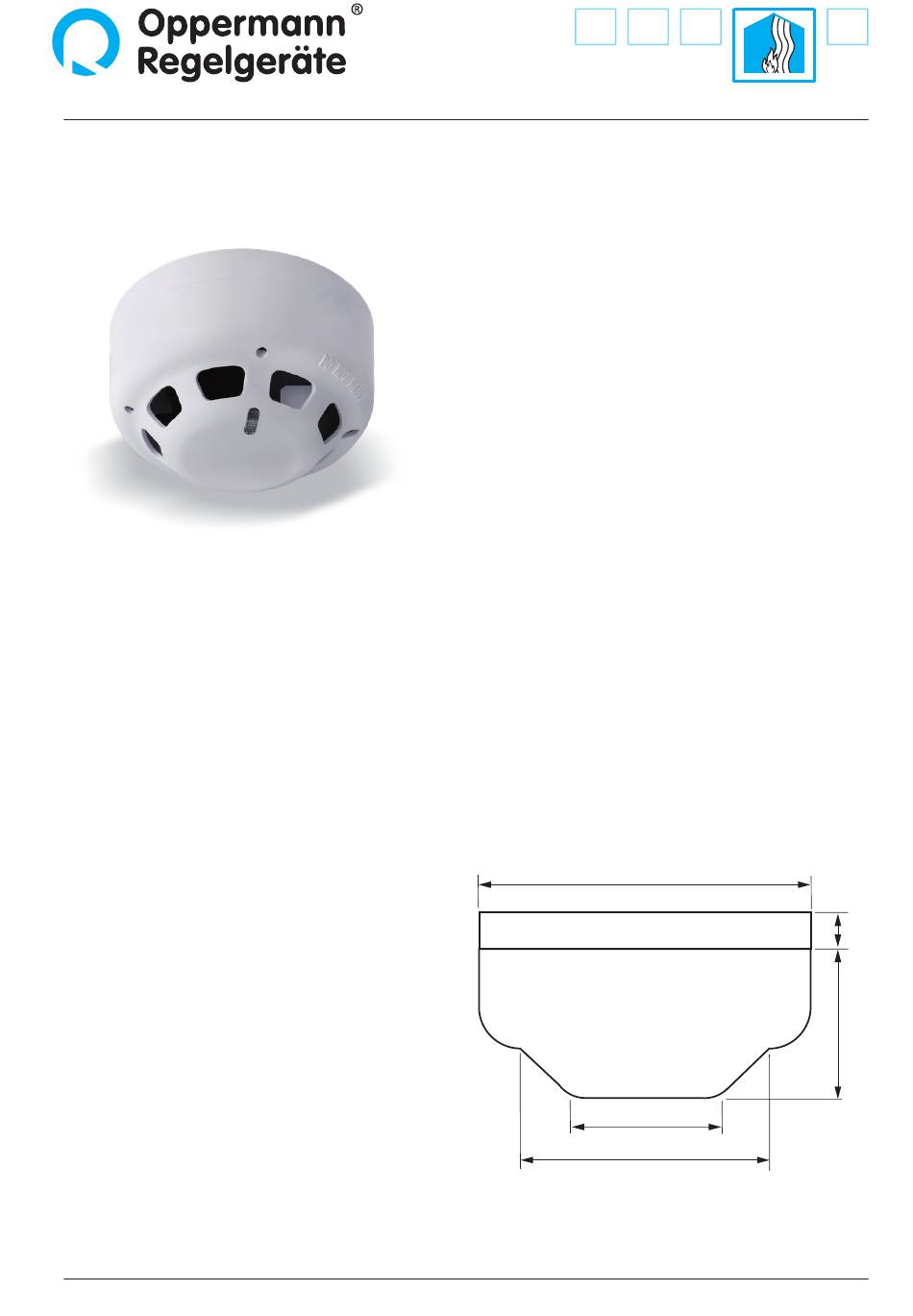

Dimensions
Dimensions in mm
100
45
75
Fire Protection | Data sheet No. 40202 | Version 03-2021 | 1 | 3
13
45
