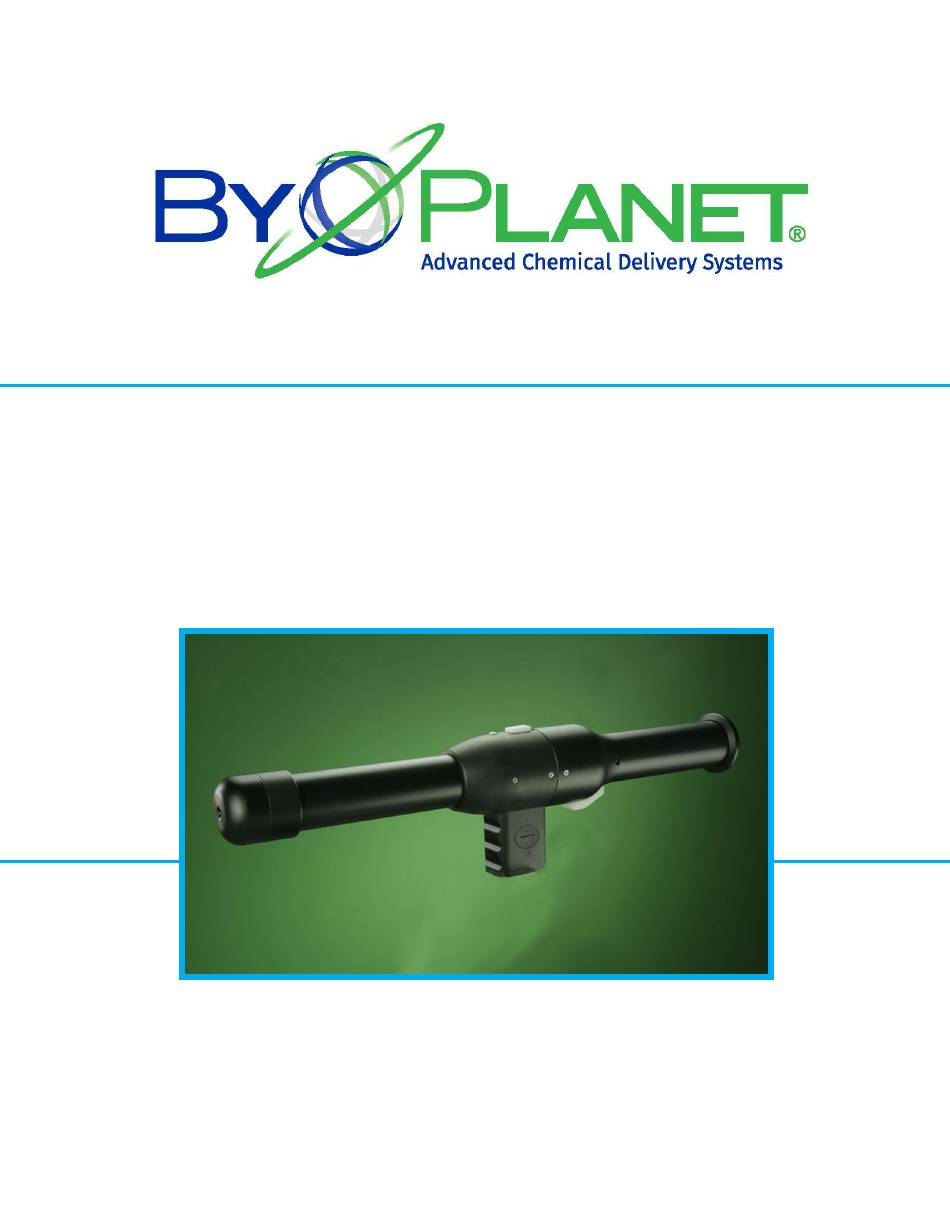

- Page 1 ES-120 ™ Electrostatic Sprayer OPERATOR’S MANUAL www.byoplanet.com © 2018 ByoPlanet International, LLC. All Rights Reserved 1305 Shotgun Road, Sunrise, FL 33326 1.855.211.1518...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM COMPONENTS Sprayer ..........3 Sprayer Connections. -
Page 3: System Components Sprayer
™ BYOPLANET ES-120 SPRAYER 1. Air Connection: The larger of the two fittings, connects to the air line on the BP-540 ™ 2. Liquid Connection: The smaller of the two fittings, connects to the liquid line on the BP-540 ™... -
Page 4: Liquid Filter
If the green indicator light is not illuminated, the droplets leaving the gun will not carry a charge. If the indicator light fails to illuminate, stop what you are doing and replace the battery pack or make sure that you are using only ByoPlanet approved chemicals. -
Page 5: Battery Pack
The U.S. Environmental Protection Agency (EPA) does not regulate the disposal of batteries in small quantities. While there are no federal regulations for disposal of lithium batteries, individual states or localities can establish their own guidelines for battery disposal, and should be contacted for any disposal guidelines that they may have. ByoPlanet ®... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS PREPARING THE SPRAY AREA In order to create an area acceptable for electrostatic spraying, there are pre-spraying procedures that one must follow. Please familiarize yourself with the following scenarios: 1. An interior area that is spotless—this scenario requires no preparatory work prior to spraying. 2. -
Page 7: Maintenance Sprayer
Removal of the nozzle electrode is not necessary for cleaning. PURGING The ES-120 Electrostatic Sprayer should be purged of chemistry after every use. To Clean/Inspect the Nozzle Assembly: 1. Disconnect the liquid hose line (smaller connector) from the sprayer handle. -
Page 8: Warranty
ByoPlanet , such parts affect its performance, stability or reliability. ® If the unit has been altered or repaired in a manner which, in the sole judgment of ByoPlanet , such ® alteration or repair affects its performance, stability or reliability. This shall include but not be limited to opening of the sprayer shell by anyone not authorized by ByoPlanet to do so. - Page 9 © 2018 ByoPlanet International, LLC All Rights Reserved 1305 Shotgun Road, Sunrise, FL 33326 1.855.211.1518 Revised 5/3/2018...
