ISOLATORS Series
ENCLOSED SWITCH-DISCONNECTORS
20÷40A
2P-3P-3P+N
2

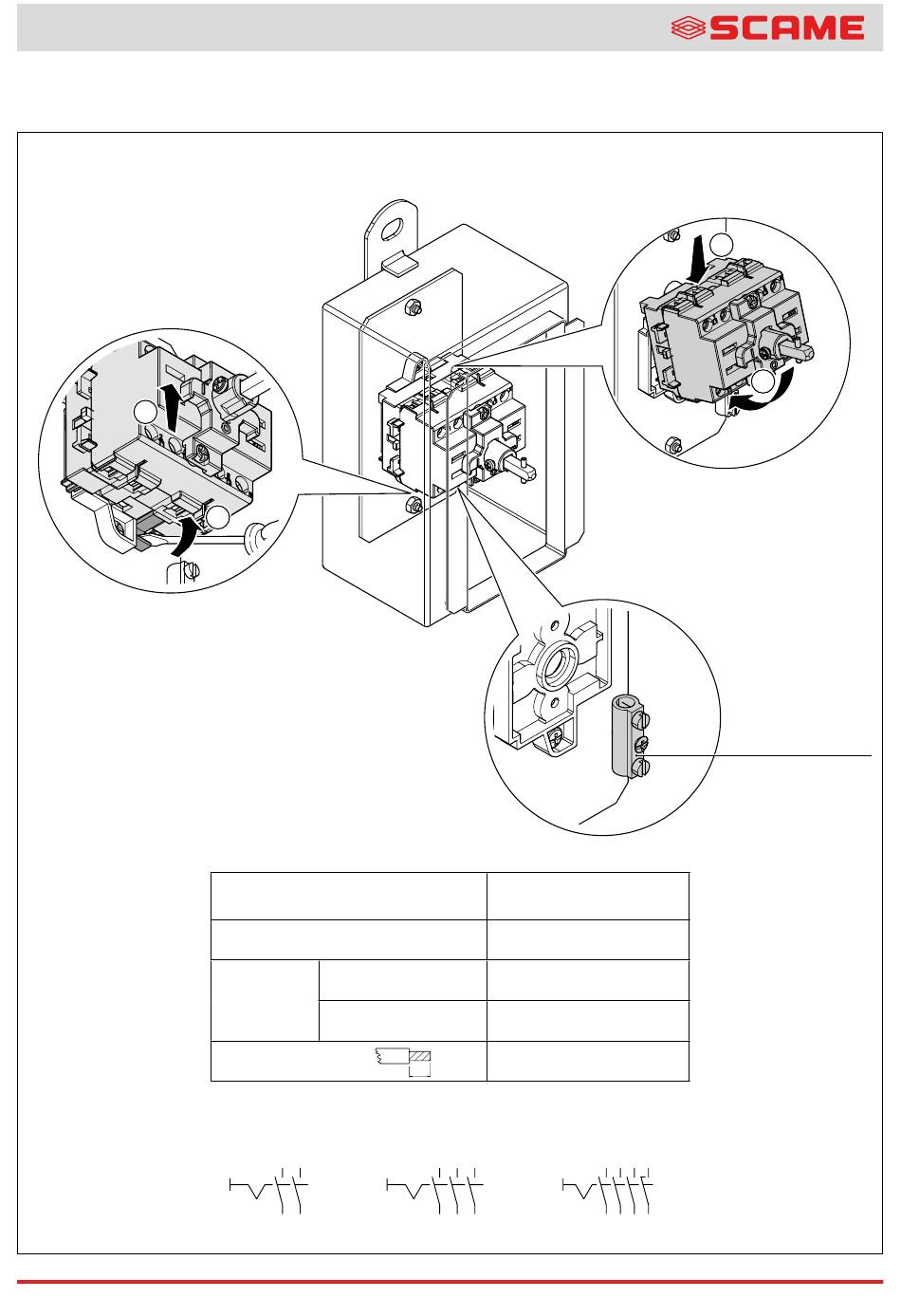

Wiring instructions
- Remove swicth from its support by the hook on the
bottom sie
- First wire earth conductor on its terminal block
- Wire power conductors on switch terminals
- Put back swicth on its support
MP39751
1
Wire range
Terminal screws
Tightening
torque
Fixing screws
Wire strip length
2P
L1
L2
1
3
2 4
T1 T2
20÷40A
2P-3P-3P+N
1.5÷10mm
0.8Nm
1.2Nm
10mm
3P+N
3P
L1
L2
L3
1
3
5
2 4 6
T1 T2 T3
-1-
1
2
Earth terminal block
2
L1
L2
L3
1
3
5
N
2 4 6
N
T1 T2 T3
4P
L1
L2
L3
1
3
5
N
2 4 6
N
T1 T2 T3
ZP91084-1
