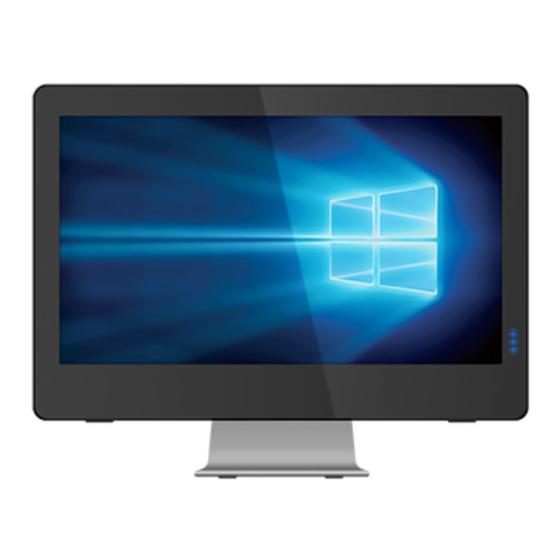

Maestro 830
User Manual
(Version 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maestro 830 and is the answer not in the manual?

Questions and answers

Related Manuals for MiTAC Maestro 830

Summary of Contents for MiTAC Maestro 830

  • Page 1 Maestro 830 User Manual (Version 1.0)

  • Page 2: Front View

    To know Maestro 830 Front View Please refer below picture showing and take note the real front view and function may differ depend on what the model you purchased.

  • Page 3: Lcd Display

    Webcam The Built-in webcam is 1.0M HD pixel with digital micro phone to allow your video with chats online. LCD Display (Touch function enabled with optional item) This 21.5 inch LCD panel is LED type with high brightness and contrast appearance. The optimal resolution is 1920 x 1080, feature edge-to-edge touch function that enable ten-fingers-touch to enjoy your digital finger life.
  • Page 4 Rear View Please refer below picture showing and take note the real rear view and function may differ depend on what the model you purchased. Optical drive This device may support you play DVD/CD disc and be recordable or re-writeable Card reader This AIO built in 4-in-1 card reader.

  • Page 5: Bottom View

    Bottom View Please refer below picture showing and take note the real side view and function may differ depend on what the model you purchased. LAN port This RJ45 LAN port supports a standard Ethernet cable to connect network. DC inlet The power adapter converts AC to DC for use with this DC inlet.

  • Page 6: System Information

    System Information 1. PRODUCT SPECIFICATION INTRODUCTION • M830 is an all-in-one system featuring 21.5” 16:9 1920x1080, Full HD panel, : Projective Capacitive Touch, 10 point, HDD x1 (3.5”/2.5”), ODD x1 (9.5mm) 1.0MP Webcam, Side IO: USB 2.0 x 1 + Card Reader, Wireless: Wi-Fi & BT combo, high-quality stereo sound output, HD-in external input display, 2 system color to choose and 2 aluminum stand options.
  • Page 7 ° ° ...
  • Page 8 1.3 MB PLACEMENT...
  • Page 9 2. DETAIL SPECIFICATION 2.1 SWITCH BUTTON Function PC power Power On/Off, go to S3/S4(follows the Windows Setting) HD-in mode Switch the display of screen from PC to HD input ODD Eject ODD tray eject/insert (It can be pushed when ODD tray is ejection) 2.2 LED CONDITIONS (1) Power LED status System State...

  • Page 10: Connecting To The Internal Headers And Connectors

    LVDS Connector CMOS Clear DMIC Cable Ambient Light Sensor Cable MiniPCIe slot For WLAN MiniPCIe slot For SSD/TV card NFC/RFID SATA Power Cable ODD Cable Front SW/LEDs Y Cable HDD Cable Wireless Charging Module Connecting to the Internal Headers and Connectors Front panel main header F i gu re 2 F ron t pa n e l m a i n h e a de r pi n -ou t Signal Name...

  • Page 11: Internal Speaker

    Interna l speaker F i gu re 3 I n t e rn a l spe a ke r Signal Name Front_L- Front_L+ Front_R+ Front_R- A B L E N T E R N A L H E A DE R S I G N A L S TP &...
  • Page 12 WebCAM header F i gu re 5 W e b C A M h e a de r pi n -ou t Signal name Data (negative) Data (positive) Ground Key (no pin) C A M A B L E H E A DE R S I G N A L S Side IO USB header F i gu re 6 S i de I O U S B h e a de r pi n -ou t Signal...
  • Page 13 F i gu re 7 P roce ssor f a n h e a de r pi n -ou t Signal Ground +12V CPU_FAN_TACH CPU_FAN_CTRL A B L E R O C E S S O R F A N H E A DE R Inverter power voltage selection header Pins 1&2: jumper position for 12V Pins 2&3: jumper position for 19V...
  • Page 14 F i gu re 9 L V D S i n v e rt e r pow e r h e a de r Signal Name Description LVDS_BKTEN_R Backlight enable LVDS_PWM Backlight PWM control 12V/19V Inverter power 12V/19V Inverter power Ground Ground BRIGHT_UP-...
  • Page 15 EDID_3.3V VCC3 Ground Ground Ground TCK0P LVDS Channel A diff data output - positive TCK0N LVDS Channel A diff data output - negative Ground Ground Ground BKLT_EN LVDS_PWM TCK1P LVDS Channel B diff data output - positive TCK1N LVDS Channel B diff data output - negative BKLT_PWR Selectable BKLT power output BKLT_PWR...
  • Page 16 CMOS Clear Header F i gu re 1 1 CMOS Clear Heade r CMOS Clear Clear CMOS Normal A B L E CMOS C LE AR BE HAV I O R DMIC Header F i gu re 1 2 DMIC Cable pin- o u t Signal Name Description Power...
  • Page 17 Ambient Light Sensor header F i gu re 1 3 Ambi e n t Ligh t Sens o r heade r pin- o u t Signal Name Description VCC3_HDMI Power Ground Ground Sensor_CLK Front SW/LEDs CLOCK Sensor_DATA Front SW/LEDs DATA 1 3 A A B L E MBIE NT...
  • Page 18 Ground Ground WLAN_DISABLE- DAC output Ground Ground PCIE_RST- Reset PCIe_WIRELESS_RX- Receive(negative) 3VSB Power PCIe_WIRELESS_RX+ Receive(positive) Ground Ground Ground Ground V_1P5 Power Ground Ground SMB_CLK_RESUME SMbus CLOCK PCIe_WIRELESS_TX- Transmit(negative) SMB_DATA_RESUME SMbus DATA PCIe_WIRELESS_TX+ Transmit(positive) Ground Ground Ground Ground USB_PCH_DN10 DATA(negative) Ground Ground USB_PCH_DP10 DATA(Positive)

  • Page 19: Minipc Ie Slot

    MiniPC Ie slot F i gu re 1 5 MiniP CI e slot For SSD/T V card pin- o u t Signal Name Description 3VSB Power Ground Ground V_1P5 Power CLKREQ_TV- CLKREQ Ground Ground PCH_100M_TVBD- CLOCK(negative) PCH_100M_TVBD CLOCK(positive) Ground Ground Ground Ground Ground...
  • Page 20 3VSB Power PCIe_TVBD_RX+_R Receive(positive) Ground Ground Ground Ground V_1P5 Power Ground Ground SMB_CLK_MAIN SMbus CLOCK PCIe_TVBD_TX-_R Transmit(negative) SMB_DATA_MAIN SMbus DATA PCIe_TVBD_TX+_R Transmit(positive) Ground Ground Ground Ground USB_PCH_DN9 DATA(negative) Ground Ground USB_PCH_DP9 DATA(Positive) 3VSB Power Ground Ground 3VSB Power Ground Ground 3VSB Power V_1P5...

  • Page 21: Sata Power

    NFC/RFID header pin-out F i gu re 1 6 NFC/R FI D heade r pin-o u t Signal Name Description Ground Ground Power UART0_TXD UART Transmit UART0_RXD UART Receive GND1 Ground Ground GND2 Ground Ground 1 6 N F C / R F I D A B L E S I G N A L S SATA Power...
  • Page 22 Power Power Power Ground Ground +12V Power +12V Power +12V Power 1 7 S A TA P A B L E O W E R A B L E S I G N A L S SATA ODD F i gu re 1 8 ODD Cable pin- o u t Signal Name Description Ground...
  • Page 23 F i gu re 1 9 Fron t SW/LE D s Y Cable pin-o u t Signal Name Description Power V_5P0_REG Power VCC3 Power PWRBT_N Power button GRN_BLNK_HRD Indicator light (Green) HDMIBT_N HDMI button YLW_BLNK_HRD Indicator light (Yellow) Sensor_CLK Front SW/LEDs CLOCK SATA_LED- Hard disk activity LED Sensor_DATA...
  • Page 24 F i gu re 2 0 H D D C a b l e pi n -ou t Signal Name Description Ground SATAHDR_TXP1_C SATA DATA Transmit(positive) SATAHDR_TXN1_C SATA DATA Transmit(negative) Ground SATAHDR_RXN1_C SATA DATA Receive(negative) SATAHDR_RXP1_C SATA DATA Receive(positive) Ground 2 0 H D D C A B L E A B L E S I G N A L S...

  • Page 25: Bios Information

    BIOS Information...
  • Page 26 Main Page Main Advanced Chipset Security Boot Save & Exit Item help BIOS Information BIOS Vender American Megatrends Core Version 5.11 Compliancy UEFI 2.4 ; PI 1.3 BIOS Version D7520A01 Build Date 05/25/2015 EC Version Processor Information Intel(R) CORE(TM) i5-6400 CPU @ 2.70GHZ →←: Select Screen ↑↓: Select Item Enter: Select...
  • Page 27 Comment This field is not selectable. There is no help text associated with it. Field Name BIOS Version Default Value Display the version of the BIOS Comment This field is not selectable. There is no help text associated with it. Field Name Build Date Default Value...
  • Page 28 Advanced Page Main Advanced Chipset Security Boot Save & Exit Item help Wireless RF [Enabled] Wake on Lan [Enabled] RealTek LAN Controller [Enabled] ►RealTek PCIe GBE Family Controller (MAC:00:22:4D:B5:ED:D4) ►ACPI Settings →←: Select Screen ►Fan Speed Configuration ↑↓: Select Item ►SMART Settings Enter:Select ►S5 RTC Wake Settings...
  • Page 29 Help Get driver information and configure Realtek Ethernet controller parameter. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name LAN Controller Default Value [Enabled] Possible Value Enabled Disabled Help Enable or Disable onboard NIC. Field Name ACPI Settings Help System ACPI Parameters.
  • Page 30 Comment Press Enter when selected to go into the associated Sub-Menu. Realtek PCIe GBE Family Controller (MAC:00:22:4d:AF:ED:D4) Main Advanced Chipset Boot Security Save & Exit Driver Information Item help Driver Name: Realtek UEFI UNDI Driver Driver Version 2.035 Driver Release Date: 2015/03/30 Device Information →←: Select Screen...
  • Page 31 Field Name Driver Version: Default Value Installed UEFI Driver Version Comment This field is not selectable. There is no help text associated with it. Field Name Driver Release Date: Default Value Installed UEFI Driver Release Date Comment This field is not selectable. There is no help text associated with it. Field Name Device Name: Default Value...
  • Page 32 Disabled Help Enables or Disables BIOS ACPI Auto Configuration. Field Name Enable Hibernation Default Value [Enabled] Possible Value Enabled Disabled Help Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. For example, WindowsXP.
  • Page 33 Fan Speed Configuration Main Advanced Chipset Security Boot Save & Exit Item help Fan Speed Configuration Fan Speed Control [Auto] CPU Fan Speed [Normal] →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 34 SMART Settings Main Advanced Chipset Security Boot Save & Exit Item help SMART Settings SMART Self Test [Disabled] →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1249.
  • Page 35 S5 RTC Wake Settings Main Advanced Chipset Security Boot Save & Exit Item help Wake system with Fixed Time [Disabled] Wake up hour Wake up minute Wake up second →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults...
  • Page 36 Field Name Wake up second Default Value Possible Value 0 - 59 Help 0 - 59 CPU Configuration Main Advanced Chipset Security Boot Save & Exit Item help CPU Configuration Intel(R) Core(TM) CPU [CPU NAME] @ [CPU Freq.] GHz CPU Signature 506e3 Microcode Patch Not loaded...

  • Page 37: Intel Txt(Lt) Support

    Enhanced C-states [Enabled] Package C State limit [AUTO] Intel TXT(LT) Support [Disabled] Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc. Field Name CPU Configuration Default Value [Intel CPU Brand String] Comment This field is not selectable. There is no help text associated with it. Field Name CPU Signature Default Value...
  • Page 38 Default Value Displays if 64-bit supported Comment This field is not selectable. There is no help text associated with it. Field Name Hyper-threading (Hided if HT not Supported) Default Value [Enabled] Possible Value Enabled Disabled Help Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology).
  • Page 39 Possible Value Enabled Disabled Help Enable or disable CPU C states. Field Name Enhanced C-states Default Value [Enabled] Possible Value Enabled Disabled Help Enable/Disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State. Field Name Package C state limit Default Value [AUTO]...

  • Page 40: Ami Graphic Output Protocol Policy

    +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc. Field Name SATA Mode Selection Default Value [AHCI] Possible Value AHCI Help Determines how SATA controller(s) operate. Field Name Serial ATA Port 0 Default Value...
  • Page 41 +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc. Field Name Display Device Name Default Value By Graphic card Possible Value By Graphic card Help Field Name Display Device Driver Version Information...
  • Page 42 Network stack [Enabled] →←: Select Screen Ipv4 PXE Support [Enabled] ↑↓: Select Item Ipv6 PXE Support [Enabled] Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Restore Legacy defaults F4: Save & Reset ESC: Exit Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc. Field Name Network stack Default Value...
  • Page 43 CSM Configuration Main Advanced Chipset Security Boot Save & Exit Item help Compatibility Support Module Configuration CSM Support [Disabled] CSM16 Module Version 07.78 Option Rom execution Network [UEFI] Video [UEFI] →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults...
  • Page 44 Field Name Network Default Value [UEFI] Possible Value DO not launch UEFI Legacy Help Controls the execution of UEFI and Legacy PXE OpROM. Field Name Video Default Value [UEFI] Possible Value [Legacy] (Restore Legacy Default) [UEFI] (Restore UEFI Default) Help Controls the execution of UEFI and Legacy Video OpROM.
  • Page 45 USB Configuration Main Advanced Chipset Security Boot Save & Exit Item help USB Configuration USB Devices: 1 Keyboard, 1 Mouse, 2 Hubs →←: Select Screen ↑↓: Select Item Legacy USB Support [Enabled] XHCI Hand-off [Disabled] Enter: Select USB Mass Storage Driver Support [Enabled] +/- : Change Opt Port 60/64 Emulation...
  • Page 46 Help Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Field Name Port 60/64 Emulation Default Value [Disabled] Possible Value Disabled Enabled Help Enables I/O port 60h/64h emulation support.
  • Page 47 Chipset Page Main Advanced Chipset Security Boot Save & Exit ►System Agent (SA) Configuration Item help ►PCH-IO Configuration →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1249.
  • Page 49 System Agent (SA) Configuration Main Advanced Chipset Security Boot Save & Exit ►Graphics Configuration Item help ►Memory Configuration →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1249.
  • Page 50 Graphics Configuration Main Advanced Chipset Security Boot Save & Exit Item help Graphics Configuration IGFX VBIOS version 1024 DVMT Pre-Allocated [32M] DVMT Total Gfx Mem [256M] Primary IGFX Boot Display [LVDS Panel] →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values...
  • Page 51 36M/ 40M/ 44M/ 48M/ 52M 56M/ 60M Help Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Field Name DVMT Total Gfx Mem Default Value [256M] Possible Value 128MB / 256MB / MAX Help Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
  • Page 52 Memory Configuration Main Advanced Chipset Boot Security Save & Exit Item help Memory Information Memory Frequency 2133 Mhz Total Memory 8192 MB DIMM#0 8192 MB DIMM#1 →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...

  • Page 53: Pch-Io Configuration

    PCH-IO Configuration Main Advanced Chipset Security Boot Save & Exit Item help ►HD Audio Configuration [Disabled] DeepSx Power Policies State After G3 [S5 State] →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 54 HD Audio Configuration Main Advanced Chipset Boot Security Save & Exit Item help HD Audio Configuration →←: Select Screen HD Audio [Auto] ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Restore Legacy defaults F4: Save &...
  • Page 55 Security Page Main Advanced Chipset Security Boot Save & Exit Item help Password Description If the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. →←: Select Screen The password length must be ↑↓: Select Item in the following range: Minimum Length...
  • Page 56 Secure Boot Mode Main Advanced Chipset Security Boot Save & Exit Item help System Mode Setup Secure Boot Not Active Secure Boot [Disabled] Secure Boot Mode [Standard] ► Key Management →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults...
  • Page 57 Possible Value Standard Custom Help Secure Boot mode selector. 'Custom' Mode enables users to change Image Execution policy and manage Secure Boot Keys.. Field Name Key Management Help Enables experienced users to modify Secure Boot variables Comment Press Enter when selected to go into the associated Sub-Menu. Key Management Main Advanced Chipset...
  • Page 58 ESC: Exit Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc. Field Name Provision Factory Default Keys Default Value [Disabled] Possible Value Enabled Disabled Help Install Factory default Secure Boot Keys when System is in Setup Mode. Field Name Enroll All Factory Default Key Help Force System to User Mode - install all Factory Default keys(PK, KEK, db, dbx, dbt).
  • Page 59 1.Public Key Certificate in: a)EFI_SIGNATURE_ LIST, b)EFI_CERT_X509 (DER encoded), c)EFI_CERT_ RSA2048 (bin), d)EFI_CERT_SHA 256 (bin) 2.Authenticated UEFI Variable Key source: Default, Custom, Mixed (*) modified through Setup menu comment Press Enter when selected to go into the associated Sub-Menu. Field Name Forbidden Signature Default Value Size:0, Key#:0, Key source: *...
  • Page 60 Boot Page Main Advanced Chipset Security Boot Save & Exit Item help Boot Configuration...
  • Page 61 Setup Prompt Timeout Bootup NumLock State [On] Quiet Boot [Enabled] Fast Boot [Enabled] Boot mode select [LEGACY] →←: Select Screen FIXED BOOT ORDER Priorities ↑↓: Select Item Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Enter: Select Boot Option #3 [USB Hard Disk] +/- : Change Opt Boot Option #4...
  • Page 62 Field Name Quiet Boot Default Value [Enabled] Possible Value Enabled Disabled Help Enables or Disables Quiet Boot option Field Name Fast Boot Default Value [Enabled] Possible Value Enabled Disabled Help Enables or disables boot with initialization of a minimal set of devices required to launch active boot option.
  • Page 63 Help Sets the system boot order Field Name Boot Option #6 Default Value [USB Floppy] Possible Value Hard Disk, CD/DVD, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network, Disabled Help Sets the system boot order Field Name Boot Option #7 Default Value...
  • Page 64 Comment Press Enter when selected to go into the associated Sub-Menu. Field Name USB Floppy Drive BBS Priorities (UEFI Boot Mode Not Support) Help Specifies the Boot Device Priority sequence from available USB Floppy Drives. Comment Press Enter when selected to go into the associated Sub-Menu.
  • Page 65 (List Boot Device Type) Drive BBS Priorities Main Advanced Chipset Security Boot Save & Exit Item help Boot Option #1 [Boot Device Name 1] Boot Option #2 [Boot Device Name 2] →←: Select Screen ↑↓: Select Item Enter: Select +/- : Change Opt F1: General Help F2: Previous Values F3: Restore Legacy defaults...
  • Page 66 Save & Exit Page Main Advanced Chipset Security Boot Save & Exit Item help Save Options Save Changes and Reset Discard Changes and Reset Discard Changes and Exit Default Options Restore UEFI Defaults Restore Legacy Defaults Save as user Defaults Restore user Defaults Boot Override →←: Select Screen...
  • Page 67 Field Name Discard Changes and Exit Help Exit system setup with without saving any changes. Comment Field Name Discard Changes and Rest Help Reset system setup without saving any changes. Comment Field Name Save Changes Help Save Changes done so far to any of the setup options. Comment Field Name Discard Changes...
