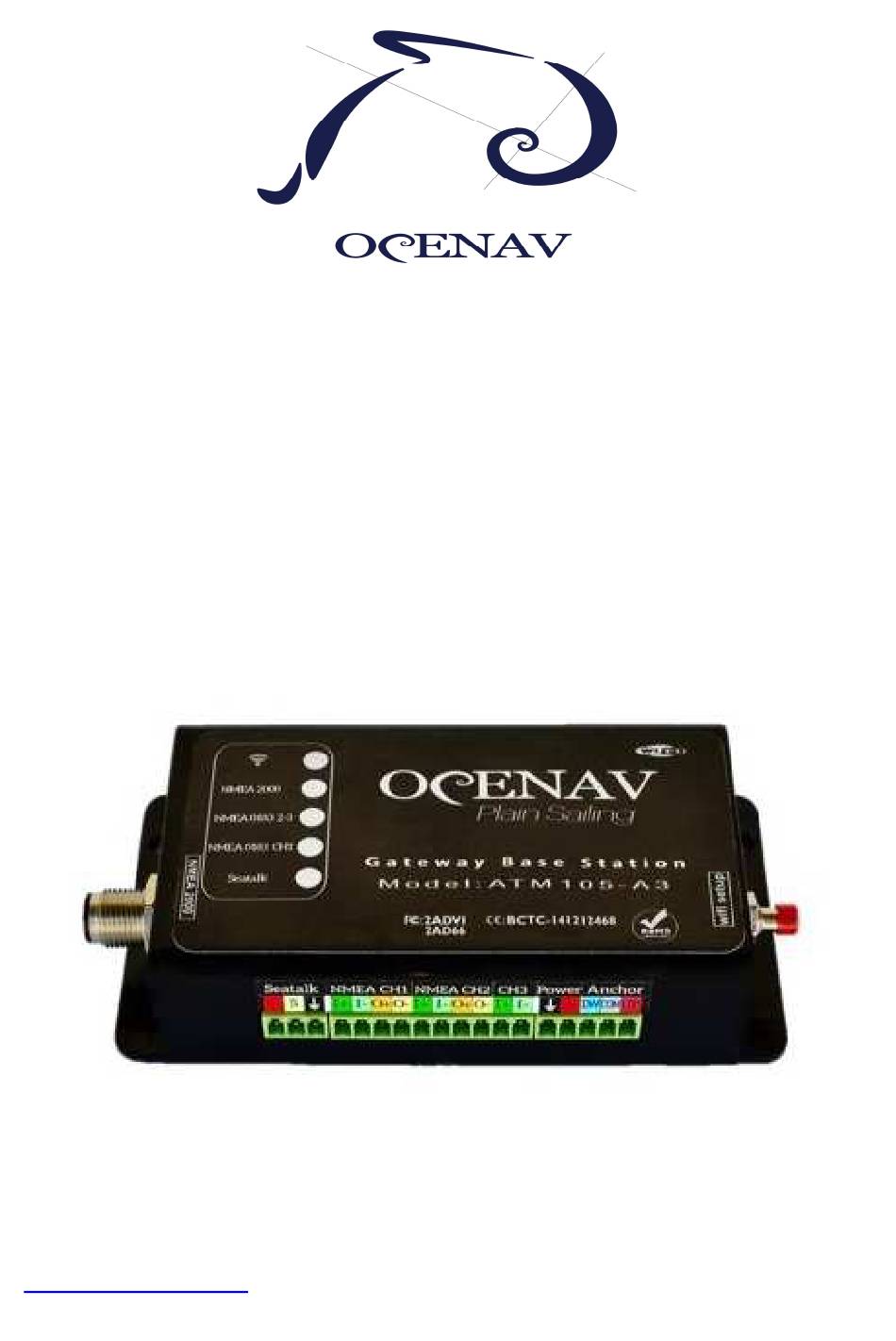

- Page 1 MULTIPLEXER / GATEWAY UNIT Quick installation guide. www.ocenav.com...
- Page 2 Information manual. The information in this document is subject to change without notice. Ocenav reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements.
- Page 3 Introduction: You have chosen an OCENAV gateway with Seatalk ™ bus and WIFI in all its versions. ATM105A2/A3 can handle several autopilot types. There is no single configuration connection for their installation, since many combinations of equipment that can be connected, however, the...
- Page 4 installation and determine where will be more convenient to place the ATM105A gateway. - Make sure the power is off before you start installing this product. - It is recommended that all instruments are interconnected through this gateway. That way the wiring is reduced and increases the communications performance.
- Page 5 - Connecting NMEA 0183 inputs and outputs, all channels: Connection to a instrument with differential input/output (RS422) Connecting to a instrument with single pole input/output (RS232) (Leave without connecting the ATM105A output O-) - Connecting NMEA2000: Connect the equipment to a power voltage drop or branch available by several manufacturers (Garmin, Lowrance, etc), or an adapter cable NMEA2000 / Seatalk (ng) Raymarine, or by type connector Brad Micro-Charge (M12) BINDER series or 763.
- Page 6 Open the phone / tablet browser. At this moment, the gateway will send a configuration page to said browser. If the configuration page does not open automatically, type www.ocenav.com in the address bar and / or clear the browser history. There are two groups of options: - Configuration of the access point: name of the WiFi, password, AP or Client, power of emission, ports, etc.
- Page 7 24 months from the date of first purchase. Ocenav its sole discretion repair or replace any defective product or component returned during the Warranty Period under the terms, conditions and limitations set forth herein.
- Page 8 OCENAV, June 2020 2nd revision: Mars 2017 3rd revisión: June 2020...
