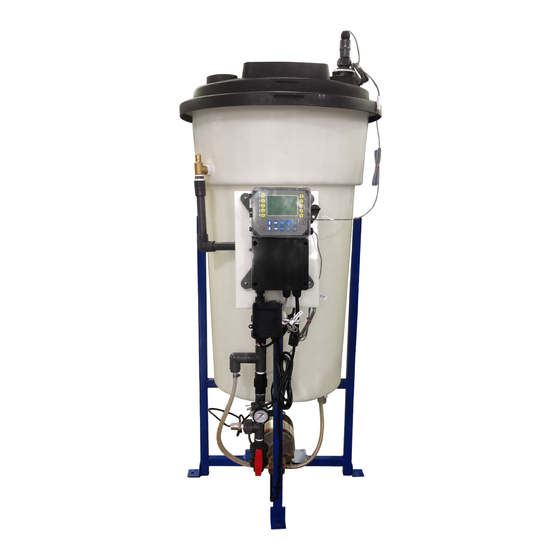

- Page 1 Manual Model GF Digital Glycol Feeder with NANO Installation Maintenance Repair Manual Advantage Controls GFPUMP-X Style Pump 4700 Harold-Abitz Dr. Muskogee, OK 74403 Phone: 800-743-7431 Fax: 888-686-6212 03/2021 www.advantagecontrols.com...
-
Page 2: Table Of Contents
Reference Chart % Propylene Glycol ................14 Reference Chart % Ethylene Glycol ................14 Introduction The Advantage Controls Glycol Feed Systems are design to regulate pressure in closed loop Hydronic Heating and Cooling applications. Advantage Controls micro-processor base controller reads a solid state pressure transducer, displays system pressure, and uses a keypad for the entry of control parameters. -
Page 3: Model Numbering And General Specifications
II. Model Numbering and General Specifications BUILD A MODEL GF - __ __ __ __ __ __ - __ __ TANK SELECTION 0 = No tank 1 = 55 gallon poly Most units include poly tank and stand, low 2 = 100 gallon poly... -
Page 4: Installation
III. Installation Electrical Wiring The standard digital glycol feeder controller has an internal regulated power supply that will operate in the range of approximately 100 to 250 VAC on the incoming wiring. Output relay(s) are protected with a replaceable fuse. Each relay’s output voltage will equal incoming line voltage. The Standard prewired units are supplied with a 8 foot, 16 AWG, 3 wire grounded, 120 VAC USA power cord for incoming power. -
Page 5: Typical Installation And Measurements
Typical Installation and Measurements System Connection GFPUMP-X Style Pump Circulation Pump GLYCOL STAND FOOT PRINT 1/4” bolt hole drilled 3/4” from outside edge Note: This is for mounting holes only. Controller will extend beyond this depth. 30 gal 23 ¾” 51” 27 ½”... -
Page 6: Relay And Logic Cards
Relay Card POWER SUPPLY CONTROL Ribbon Cable Relay Relay RELAY 1 RELAY 2 Power In Relay 1 Relay 2 NanoTron-N Logic Card If the mA OUT Power switch is on INT the unit’s internal 24 VDC is Contrast applied to the output. If set for EXT the external loop out power NanoTron-N Logic Card Power... -
Page 7: Start Up And Test Procedure / Recommendations
Start Up and Test Procedure / Recommendations 1. Before filling tank, be sure that the tank and the filter bowl are free of packing material and or construction debris. 2. Check plumbing as it may have become loose from vibrations during shipping. 3. Fill Tank 4. Open isolation valve to system. 5. If there are no leaks verify that the pressure gauge agrees with system pressure. This value may vary do to connection to Hydronic systems placement. -
Page 8: Nanotron Ma Menu Map
Calibration Pressure Set Timer Set Password 1 Point Cal: Y/N ON at: XXX.X Post Control 010% of Cntrl Hi Lvl: Op OFF at: XXX.X Limit Time hh:mm Cal: XX.XX 2 Point Cal: Y/N With Control Limit Time hh:mm DigIn: Drum High Alarm: XXX.X Utility Simulator: Y/N... - Page 9 Force Set Diagnostics Clock Set 4-20 Output Pulse Output Force On: Both Nano-4-20 0% of Cntrl Password 0000 Set Time 4 mA = 000.0 LoRate= 000.0 Hi Lvl: Open FW: ?.?.? Set Date R1 Cntrl mm:ss Time hh:mm 20mA= 999.9 HiRate= 700.0 Test Keypad DigIn: Drum 1&2...
-
Page 10: Parts List
Tank lid for 30 gl = LID-30-C1D; 55 gl = LID-55-C1D Tank for 30gl = AGF-APCT-30; for 55 gl = AGF-APCT-55 Pressure relief valve = AGF-PRV Glycol feeder controller = GF-NANO-M Isolation valve = BV-3/4 for PVC; GV-3/4 for copper Back check = CKV-3/4PP for PVC; CKV-3/4B for copper... -
Page 11: Troubleshooting And Maintenance
Here are the models and required suction sizing based on the Pump selection code in the model number (see model numbering on page 3): Pump Code Replacement Suction Assembly GFPUMP-1 GF-1-SUCTION includes ½” strainer and 3/8” tubing GFPUMP-2 GF-2-SUCTION includes ½” strainer and ½” tubing GFPUMP-3 GF-2-SUCTION includes ½” strainer and ½” tubing GFPUMP-4 GF-4-SUCTION includes ¾”... - Page 12 Maintenance Maintenance and care will depend upon the usage and environment in which the system is subjected to. The following is the suggested regular maintenance required to keep the glycol feed system operating properly: TANK AND PLUMBING Periodically check the piping and tubing to insure proper discharge of the glycol solution. The strainer should be periodically checked for clogging and wear.
-
Page 13: Warranty
Manufacturer’s Product Warranty Advantage Controls warrants units of its manufacture to be free of defects in material or workmanship. Liability under this policy extends for 12 months from date of installation for all aspects of the glycol feeder with the controller only covered for an additional 12 months. - Page 15 - Notes -...
- Page 16 Get the Advantage in Water Treatment Equipment Advantage Controls can give you the Advantage in products, knowledge and support on all of your water treatment equipment needs. Cooling Tower Controllers Boiler Blow Down Controllers Blow Down Valve Packages Solenoid Valves Water Meters Chemical Metering Pumps...
