Summary of Contents for Interflex IF-4076-0
- Page 1 Controller IF-4076-0 Access Manager 00-4076-04xx...
-
Page 2: Table Of Contents
Restoring the default IP address ....................21 5.3 Configuring the interfaces and the booking memory ..............21 5.4 Listing the configuration data of slave terminals ................. 23 5.5 Restarting the controller ......................24 © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... - Page 3 6 Updating the software ........................7 Upgrading the controller ........................8 Technical specifications ........................8.1 General ............................27 8.2 IF-4070............................27 9 Disposal ............................. 10 EU Declaration of Conformity......................© 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager...
-
Page 4: General Information
1 General information 1.1 Short description The IF-4076-0 access manager in metal housing with an integrated IF-4070 controller is used to accommodate up to 16 I/O controller boards and serves as a link between the host system and a maximum of 16 terminals (slaves) of the IF-7xx/IF-8xx series. -
Page 5: Target Group
This document is solely intended for experts and people trained in electrical engineering. Only perform the actions described in this document if you belong to this target group. Interflex Datensysteme GmbH is not liable for any damages caused by improper installation or initial operation. -
Page 6: Cable Lengths And Cable Types
In long cables, voltage losses can impair the functionality of the connected device. Therefore, do not use cables longer than specified in the table. Wire the +5 V and GND lines with two cores each for a cable length > 50 m. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 7: System Overview
System overview 2 System overview The IF-4076-0 access manager includes the following functions: Operation in conjunction with a host system for access control or time recording (e.g., IF-6020 or IF-6040) Connection and control of up to 16 slave terminals via I/O controller boards... - Page 8 1. Before opening an access manager that has already been put into operation, deactivate the alarm 2. Reactivate the alarm after work has been completed Detailed information on this subject can be found in the documentation of the host system © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager...
-
Page 9: Components
System overview Components Host system IF-4070 controller Slave Terminal Readers Control element Door opening push-button Door contact Power supply © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -

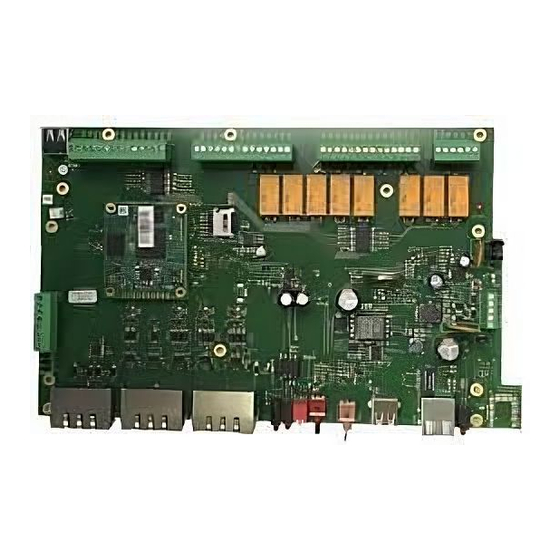

Page 10: If-4070 Controller Overview
RJ45 socket with RS232 interface for the connection of a service device 3-pin screw terminal for RS232 service cable (same function as socket 13) 7-pin screw terminal for RS485 data cable (same function as socket 10) © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 11: Leds And Switches
Delete stored data, restore standard parameters Save IP address settings temporarily and set default IP address to 172.18.70.52. Battery Switch battery on and off (only for devices with optionally installed emergency power supply) © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 12: Installing The Access Manager
Ground the shields of the cables with the shield connection terminals c) Secure the cables using the shield connection terminals d) Connect the cables and cable shields according to the specifications in this documentation © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 13: Wiring Components
LEDs and switches [} 11]. When assigning the IP address and setting up the network, observe the current state-of-the-art technology for securing and segmenting corporate networks. Interflex recommends operating all installed devices and servers in one VLAN. © 2021 Interflex Datensysteme GmbH... -
Page 14: Bus Data Cables With Slave Terminals
Only use shielded cables and shielded connection components, such as male Hirose connectors. Bus data cable to screw terminal 600 Use shield terminals for grounding the cable shields. Secure the cable with a strain relief. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 15: Floating Status Contacts And Relays
When connecting external devices, take into account the switching capacity, the cable length and the line resistance. Use several cable cores to switch remote devices. Connect the cable shields as shown in the diagram to maintain the required EMC values. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... - Page 16 14 NC 3 NC 6 NC contacts contacts contacts contacts contacts contacts contacts contacts 4 R1 3 R2 6 R3 9 R4 12 R5 1 R6 4 R7 7 R8 (on 802) © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager...
-
Page 17: Connecting The Controller
Provide power to actuators (e.g., door openers) separately from terminals/controllers Use mains filter These measures have been implemented in the distributors from Interflex. For further information, please get in touch with your Interflex contact. Connecting the 230 V power cable... -
Page 18: Initial Operation
Accessing the controller via SSH requires the freeware PuTTY version 0.73 or higher: 1. Switching on the power supply 2. Establish serial connection between host computer and controller 3. Open PuTTY 4. Check and adjust parameters © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... - Page 19 When the RUN LED lights up, an SSH connection can be established. The start-up procedure takes up to 30 seconds. Leave PuTTY open during the next steps as further entries are required during initial operation. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager...
-
Page 20: Checking And Setting Network Parameters
Confirm values (e.g. Gateway, Netmask, etc.) that you do not wish to change by pressing the Enter key. When your changes are complete, a list of the current network parameters is displayed after a few seconds and then the connection to the controller is terminated. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 21: Restoring The Default Ip Address
5.3 Configuring the interfaces and the booking memory Via the command oc -h, you can change interface settings adjust the size of the booking memory Press the Enter key to confirm values that you do not wish to change. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... - Page 22 Number of bookings Size of the booking memory (*1000) Default: 50, corresponds to 50 000 bookings The booking memory works as a ring buffer. When the memory is full, the oldest entry is overwritten. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager...
-
Page 23: Listing The Configuration Data Of Slave Terminals
+ - = 2nd I/O controller board (I/O expansion board) is ready for operation + + = 1st First I/O controller board and 2nd I/O controller board ready for operation - - = Slave terminal is operated without I/O controller board © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 24: Restarting The Controller
IP address or password, are retained. Use the cold boot during initial operation and in the event of malfunctions that cannot be remedied by other means, e.g., a warm boot. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... - Page 25 For initial operation, the controller can then only be accessed via a serial console or the IF- ServiceApp. 1. Set switches: 2. Shortly press the Reset button 3. Wait until the RUN LED lights up again (procedure can take up to 30 seconds) © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager...
-
Page 26: Updating The Software
3. Start cmd.exe and run the desired batch file A detailed list of the batch files and the associated call parameters is available from Interflex on request. To avoid errors, the files to be updated and the batch files should be located in the same folder. -
Page 27: Technical Specifications
Cable feed Surface-mounted 8.2 IF-4070 Output relay/switching capacity 8 relays with 'normally closed’ (NC) and 'normally open’ (NO) contacts Switching capacity up to 30 V, 2 A Operating status indicators 7 LEDs on front panel © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 28: Disposal
9 Disposal Once its service life comes to an end, the device must be disposed of properly as electronic waste. You can dispose of the device yourself or return it to the supplier. © 2021 Interflex Datensysteme GmbH IF-4076-0 Access Manager... -
Page 29: Eu Declaration Of Conformity
Version 2). Upon request and for a charge no more than your cost of physically performing source distribution, Interflex offers to provide you with a medium customarily used for software interchange containing a complete machine-readable copy of the source code of the programs used. This offer is valid for a period of three years, starting on the date the product is purchased.
