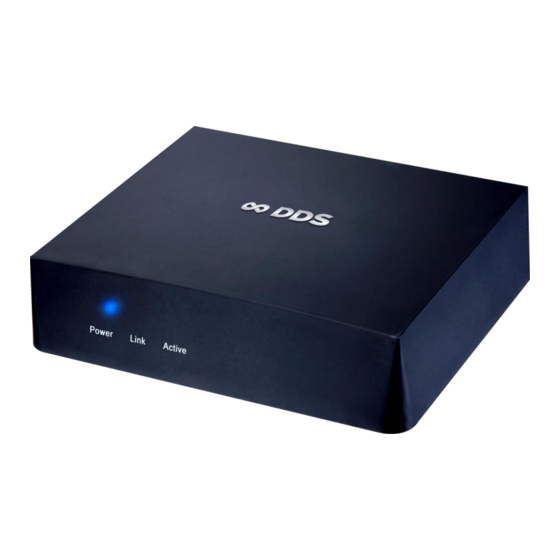

BlueEyes DDS Operation Manual

Advertising box

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Operation manual

2016/05/25

www.BlueEyestech.com

Table of Contents

Need help?

Do you have a question about the DDS and is the answer not in the manual?

Questions and answers

Summary of Contents for BlueEyes DDS

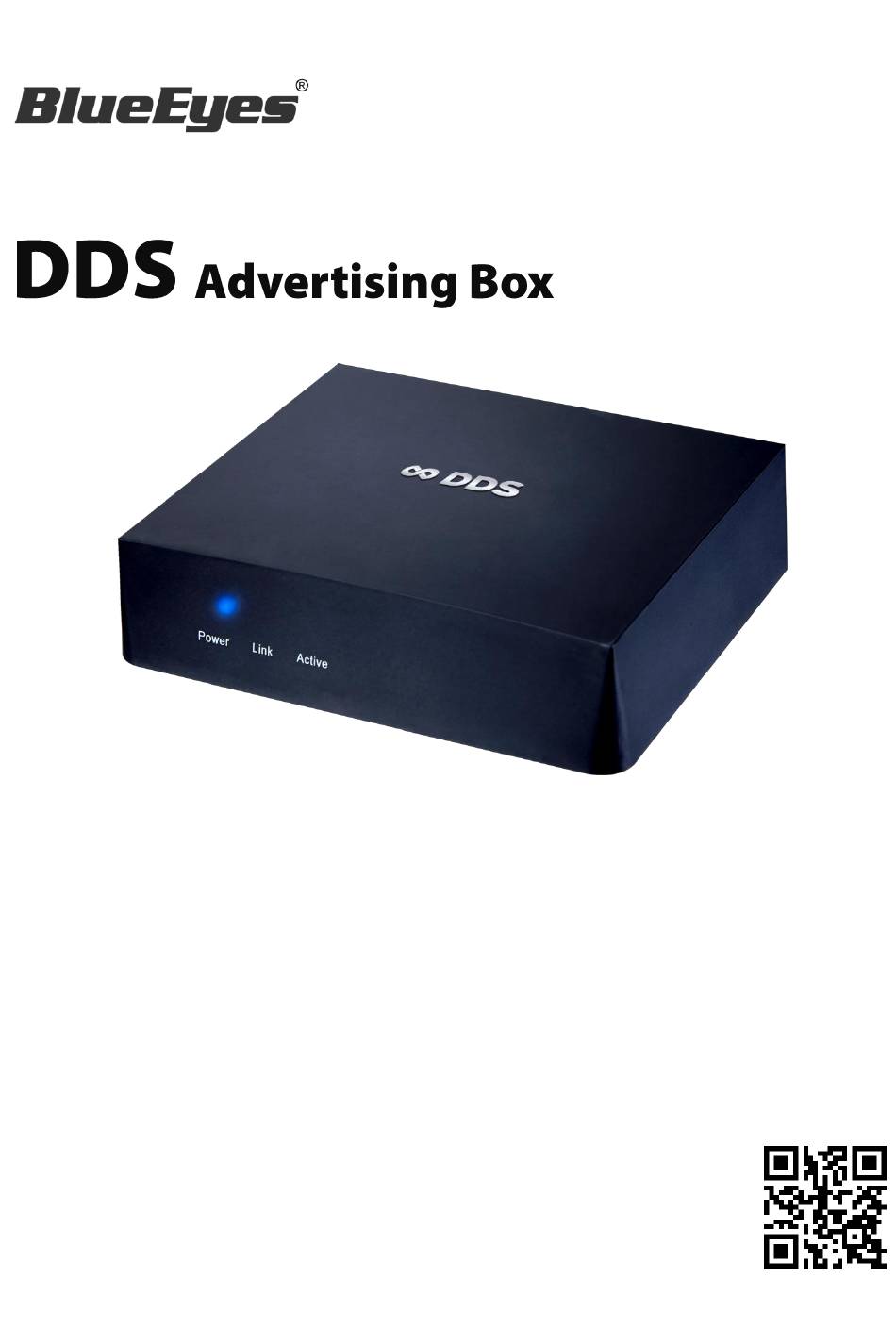

Page 1 Operation manual 2016/05/25 www.BlueEyestech.com...
Page 2 If you want to get the latest product information, operation manual, firmware, or you have any question to the products of BlueEyes Technology, please contact your local agent or go to the official website of BlueEyes Technology for further information.
Page 3: Table Of Contents
2.2.3.3 Picture on banner ..........................20 2.2.4 Scrolling text marquee ........................... 20 2.2.5 Main screen ............................21 2.2.5.1 Add texting ............................21 2.2.5.2 Publish picture/ video ......................... 22 2.2.5.3 Hide picture/ video ..........................23 2.2.6 Top vice-screen ............................23 BlueEyes Technology www.BlueEyestech.com...
Page 4 3.6 Create announcement or notification ..................... 45 3.6.1 Picture output ............................45 3.6.2 Film output ............................45 3.7 Record film／micro film／testimony film ..................46 3.7.1 SES lecture recording system ......................... 46 3.7.2 DV camera ............................. 46 3.7.3 Camera ..............................46 BlueEyes Technology www.BlueEyestech.com...
Page 5 5. Q&A ..........................48 【Question 1】How to shut down or reboot? ..................48 【Question 2】Can I set the timer for boot and shut down DDS automatically? ........ 48 【Question 3】The terminal of TV is VGA, not HDMI................48 【Question 4】Can I play with mute? ....................48 【Question 5】Forget the password ....................
Page 6: Introduction
1. Introduction 1.1 About the manual The manual can help you understand the function and operation methods of DDS player  The company suggested you that if you store all written records of important information, in some cases, it may cause data loss and change in the electrica l storage.
Page 7  Do not use any solvents, such as thinner and gasoline solvents, as these solvents can damage the machine’s surface. Moisture proof  When using this machine, you should try to avoid damp places, such as in a wet basement. BlueEyes Technology www.BlueEyestech.com...
Page 8 – Liquid spilled into the machine or something enters in the body – After the machine get wet because of the rain or water – The machine fall from high place or other reasons to cause damage. – Do as the manual but didn’t work BlueEyes Technology www.BlueEyestech.com...
Page 9: Connect To Wifi
DDS can update through wifi: Follow the steps to connect wifi: 1. DDS will automatically boot up after power on. The time to boot up is about 60 seconds. 2. Prepare a new USB (for first time to set wifi) 3.
Page 10  DNS: 8.8.8.8、168.95.1.1 </book> <book name="DNS2"> <value>8.8.4.4</value>  DNS: 8.8.4.4、168.95.192.1 </book> 8. Save config.xml file 9. Plug USB into DDS again 10. Open Chrome and enter IP (http://192.168.1.159:8080). Make sure connection is ok 11. Take out of USB BlueEyes Technology www.BlueEyestech.com...
Page 11: Customized Pattern
● (left) ● ● ● ● (right) ● ● ● (left) ● ● ● (right) ● ● ● ● (left) ● ● ● (right) ● ● (left) ● ● (right) ● ● ● ● ● ● ● ● BlueEyes Technology www.BlueEyestech.com...
Page 12: First Pattern
2.1.1 First pattern Pattern Main screen Banner Vice-screen Marquee ● ● ● (left) ● Illustrate Example 2.1.2 Second pattern Pattern Main-screen Banner Vice-screen Marquee ● ● ● (right) ● Illustrate Example BlueEyes Technology www.BlueEyestech.com...
Page 13: Third Pattern
2.1.3 Third pattern Pattern Main screen Banner Vice-screen Marquee ● ● (left) ● Illustrate Example 2.1.4 Fourth pattern Pattern Main screen Banner Vice-screen Marquee ● ● (right) ● Size (pixel) Illustrate Example BlueEyes Technology www.BlueEyestech.com...
Page 14: Fifth Pattern
2.1.5 Fifth pattern Pattern Main screen Banner Vice-screen Marquee ● ● ● (left) Illustrate Example 2.1.6 Sixth pattern Pattern Main screen Banner Vice-screen Marquee ● ● ● (right) Illustrate Example BlueEyes Technology www.BlueEyestech.com...
Page 15: Seventh Pattern
2.1.7 Seventh pattern Pattern Main screen Banner Vice-screen Marquee ● ● (left) Illustrate Example 2.1.8 Eighth pattern Pattern Main screen Banner Vice-screen Marquee ● ● (right) Illustrate Example BlueEyes Technology www.BlueEyestech.com...
Page 16: Ninth Pattern
2.1.9 Ninth pattern Pattern Main screen Banner Vice-screen Marquee ● ● Illustrate Example 2.1.10 Tenth pattern Pattern Main screen Banner Vice-screen Marquee ● ● Illustrate Example BlueEyes Technology www.BlueEyestech.com...
Page 17: Eleventh Pattern
2.1.11 Eleventh pattern Pattern Main screen Banner Vice-screen Marquee ● ● ● Illustrate Example 2.1.12 Twelfth pattern Pattern Main screen Banner Vice-screen Marquee ● Illustrate Example BlueEyes Technology www.BlueEyestech.com...
Page 18: Website
2.2 Website 2.2.1 Connect to website Enter the IP of DDS and add 8080. We advise you use Google Chrome as your browser. For example: http://192.168.0.100:8080 Default account is admin, default password is on default value of manufacturing list. 2.2.2 Status It shows used memory, DDS version, memory, left memory, Wi-Fi MAC, Wi-Fi SSID, IP, mask, Gateway, DNS1, DNS2.
Page 19: Banner Logo
Used memory Used memory, you can save data at SD card or USB. Version of DDS Version information Memory Total memory Left memory Left memory Wi-Fi MAC Address of Wi-Fi MAC Wi-Fi SSID Name of Wi-Fi MAC SSID IP of DDS...
Page 20: Upload Picture
Chinese, should less than 17 words; for English, should less than 34 words. Besides, the background color can be changed (black, white, red, blue, yellow, green, dark red) Format of Html: this is (red) marquee! this is (blue) marquee! this is (yellow) marquee! BlueEyes Technology www.BlueEyestech.com...
Page 21: Picture On Banner
 this is (olive) marquee! 2.2.3.3 Picture on banner Click〈delete〉to delete the picture on banner. 2.2.4 Scrolling text marquee You can enter number, Chinese, English, html. For Chinese, should less than 17 words; for English, should less than 34 words. BlueEyes Technology www.BlueEyestech.com...
Page 22: Main Screen
You can enter number, Chinese, English, html. The texting can’t more than eight sentences. For Chinese, should less than 17 words; for English, should less than 34 words. Besides, the background color can be changed (black, white, red, blue, yellow, green, dark red) BlueEyes Technology www.BlueEyestech.com...
Page 23: Publish Picture/ Video
 this is (maroon) marquee! this is (olive) marquee! 2.2.5.2 Publish picture/ video It shows information of picture or video on main screen, including 縮圖、檔名、大小、排序、隱藏、刪除等資訊。若啟用圖片清單中沒有任何圖片，副畫面將顯示為預設圖片。縮圖 The picture of uploading picture and video BlueEyes Technology www.BlueEyestech.com...
Page 24: Hide Picture/ Video
The picture of uploading picture and video Name Name of picture and video 大小 The size of picture and video Publish You can publish your picture and video Delete Click to delete picture and video 2.2.6 Top vice-screen BlueEyes Technology www.BlueEyestech.com...
Page 25: Add Texting
Chinese, should less than 16 words; for English, should less than 32 words. Besides, the background color can be changed (black, white, red, blue, yellow, green, dark red) The format of htmt: this is (red) marquee! this is (blue) marquee! this is (yellow) marquee! BlueEyes Technology www.BlueEyestech.com...
Page 26: Publish Picture
 this is (olive) marquee! 2.2.6.2 Publish picture It shows the information about picture on top vice-screen, including 縮圖、檔名、大小、排序、隱藏、刪除等資訊。縮圖 The picture of uploading picture 檔名 Name of picture 大小 The size of picture 排序 The order of picture BlueEyes Technology www.BlueEyestech.com...
Page 27: Hide Picture
等資訊。隱藏圖片將不會顯示畫面中。縮圖 The picture of uploading picture 檔名 Name of picture 大小 The size of picture 顯示 You can publish your picture Delete Click to delete picture 2.2.7 Foot sub-screen The resolution of picture should be 600x400. BlueEyes Technology www.BlueEyestech.com...
Page 28: Add Texting
(black, white, red, blue, yellow, green, dark red) The format of html: this is (red) marquee! this is (blue) marquee! this is (yellow) marquee! this is (lime) marquee! BlueEyes Technology www.BlueEyestech.com...
Page 29: Publish Picture
It shows the information about picture on foot vice-screen, including 縮圖、檔名、大小、排序、隱藏、刪除等資訊。縮圖 The picture of uploading picture 檔名 Name of picture Size The size of picture Order The order of picture Hide You can hide your picture BlueEyes Technology www.BlueEyestech.com...
Page 30: Hide Picture
The picture of uploading picture 檔名 Name of picture Size The size of picture Publish You can publish your picture Delete Click to delete picture 2.2.8 Setting It shows related setting of DDS, including 橫幅目錄、主畫面目錄、主畫面設定、副畫面設定、上方副畫面目錄、下方副畫面目錄、副畫面顯示方式、跑馬燈設定、跑馬燈檔案、天氣、時間、靜音，修改完畢後，點擊〈確定修改〉即可。 BlueEyes Technology www.BlueEyestech.com...
Page 31 Default is top sub-screen catalogue Foot sub-screen Default is Foot sub-screen catalogue Display way of vice- 可設定副畫面顯示方式，副畫面置左或至右 screen Marquee Can set the time for loop, including 5, 6, 7, 8, 9, 10, 15, 20, 30, 60(s). File of marquee 顯示跑馬燈檔案，預設為主畫面/預設字幕檔.txt BlueEyes Technology www.BlueEyestech.com...
Page 32: Weather
When you enable the weather function, it would be show on the right side of marquee. You can choose country and city you want to display. The word number of marquee with weather should be less than 14 Chinese, 28 English. If you need to use weather function, DDS must connect to internet. BlueEyes Technology www.BlueEyestech.com...
Page 33: Date & Time
When you enable the date & time function, it would be show on the right side of marquee. The word number of marquee with date and time should be less than 14 Chinese, 28 English. If you need to use date and time function, DDS must connect to internet. 2.2.9 System maintaining 您可重新載入系統內容，點擊〈服務重新載入〉即可。...
Page 34: Revise Password
2.2.10 Revise password You can revise login password. 2.2.11 Logout You can close window after clicking logout. Because the limitation of FAT32, each size of film can’t be more than 4GB. 2.3 USB (prepare in advance) BlueEyes Technology www.BlueEyestech.com...
Page 35: Folder
Because the limitation of FAT32, each size of film can’t be more than 4GB. 2.3.2 Playing order You can have the playing order you want. DDS will play base on the file name. You can revise the file name. For example: 01_XXX.JPG...
Page 36: Hide File
2.3.3 Hide file If you don’t want some video or picture be played. You can add some word behind the file name. For example: xxx.mp4 will be played, revise to xxx.mp4.tmp will not be played BlueEyes Technology www.BlueEyestech.com...
Page 37: Content Style
3. Content style 3.1 Content DDS is a diversity and powerful advertisement weapon. Shop School 3.2 Category of content The content can be film, picture, photo or word. BlueEyes Technology www.BlueEyestech.com...
Page 38: Scrolling Text Marquee
（maroon） （olive） 3.4 Photo/ picture You can set your photo or picture on main screen or vice-screen of DDS. 3.5 Size You can adjust the size of photo or picture to suitable size. The screen will become better.
Page 39: Paint
3.5.1 Paint You can adjust size of photo or picture via paint. 1. Start「paint」請您點擊「開始」功能鍵→選擇「所有程式」→選擇「附屬應用程式」→點擊「小畫家」即可開啟。 2. Open picture/ photo Click and,「開啟舊檔」選擇您所需要更改的圖片/照片。 BlueEyes Technology www.BlueEyestech.com...
Page 40 3. Change the size of picture After choosing the picture/ photo, click「影像」中「調整大小」選項，將顯示「調整大小及扭曲」視窗。請將「調整大小」選項中，依照(B)改為【像素】、水平(H)改為【600】、並勾選維持外觀比例(M)，更改完畢後選擇確定即可。 BlueEyes Technology www.BlueEyestech.com...
Page 41 4. Choose suitable size 選擇「選取」中「選取矩形」，裁剪您所需要的高度大小，如果是主畫面，圖片高度改為 95 像素，會得到較佳觀看效果；如果是副畫面，圖片高度改為 400 像素會得到較佳觀看效果。 BlueEyes Technology www.BlueEyestech.com...
Page 42 You can choose the size you want by click the mouse. Click 「裁剪」to the size you need. Click and choose 「另存新檔」 to save the new file. BlueEyes Technology www.BlueEyestech.com...
Page 43: Xnview Software
3.5.2 XnView software 1. Install XnView software Official download: http://download3.xnview.com/XnView-win-full.exe Official website: http://www.xnview.com/en/xnview/ 2. Change size of picture Perform Xnview software, choose 【tool】【批次轉換】 Add picture or add folder. BlueEyes Technology www.BlueEyestech.com...
Page 44 【轉換】【調整大小】【加入】【寬度】set 600 (sub-screen) or 1280 (main screen) 最後點擊【開始】，此軟體就會自動將圖片調整為寬 600 且長寬比不變的圖片。 3. Choose suitable size Choose the suitable size by click left button of mouse. BlueEyes Technology www.BlueEyestech.com...
Page 45: Picture (Photo) Add With Music
3.5.3 Picture (photo) add with music If you want to have music while playing picture or photo, we recommend you use following software. ★JPGAvi Download website: http://www.ndrw.co.uk/download/shareware/jpgavi/jpgavi.zip Official website: http://www.ndrw.co.uk ★Power director Download website: http://tw.cyberlink.com/downloads/trials/powerdirector-ultimate-suite/download_zh_TW.html Official website: http://tw.cyberlink.com/products/powerdirector-ultimate-suite/features_zh_TW.html BlueEyes Technology www.BlueEyestech.com...
Page 46: Film Editing
After finish PowerPoint, please remember to save as PNG or JPG. We recommend you use Microsoft Office 2010 or latest version. 3.6.2 Film output After finish PowerPoint, please remember to save as WMV. We recommend you use Microsoft Office 2010 or latest version. BlueEyes Technology www.BlueEyestech.com...
Page 47: Record Film／Micro Film／Testimony Film
This is the best tool to record film. Most of DV has built-in hard disk which suitable for store film. 3.7.3 Camera The memory is limited, but suitable for short film. If it can’t play in DDS, please transform the format of it into .mp4.
Page 48 4. APK When there is a new version for DDS, we will inform you to update APK software. HDMI Connect to HDMI TV Connect to USB DC IN Connect to power Connect to the mouse of USB BlueEyes Technology www.BlueEyestech.com...
Page 49 【Question 2】Can I set the timer for boot and shut down DDS automatically? 【Answer】 There is no timer built-in DDS, but you can buy a timer for it. It still can boot and shut down automatically. 【Question 3】The terminal of TV is VGA, not HDMI.
Page 50 【Answer】 when you need to adjust the size of DDS, please follow the steps. 〈Step 1〉 You need to prepare a USB, and insert it into DDS. Click the second sign from left. 〈Step 2〉 Click the sign on top-right.
Page 51 〈Step 4〉 Click screen and go to 〈Screen Scale〉. 〈Step 5〉 You can start to adjust the size of DDS. After setting, reconnect DDS with power. The size of DDS already be changed. BlueEyes Technology www.BlueEyestech.com...
Page 52 【Question 7】There is no frame on DDS 【Answer】 please follow the steps: 「step 1」take out of SD card, and reboot. 「step 2」if the frame back, please format the SD card. 「step 3」put the data into SD card again. ╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳ 本...
Page 53 Note BlueEyes Technology www.BlueEyestech.com...
Page 54 Note BlueEyes Technology www.BlueEyestech.com...
Page 55 Note BlueEyes Technology www.BlueEyestech.com...
