Summary of Contents for BlueEyes BE-5302

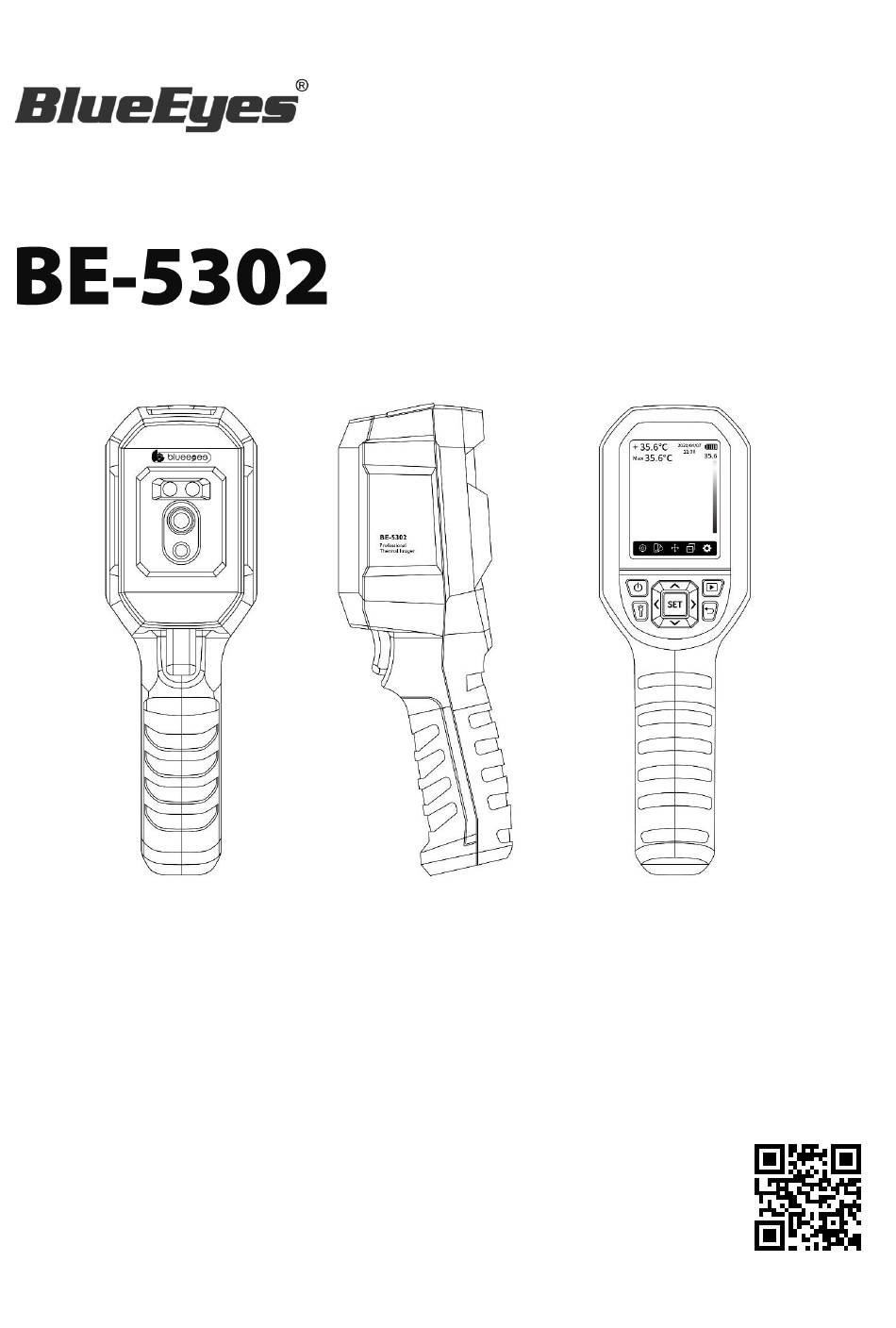

- Page 1 Thermal imager User Manual 2020/4/24 www.BlueEyes.com.tw...
- Page 2 BlueEyes products, please contact your local supplier or go to the official BlueEyes website for information. The contents of this manual may not be copied or used without the written consent of BlueEyes Technology, or otherwise altered in the information and distribution of this manual.
-
Page 3: Table Of Contents
11.13 Format SD card ................................36 12. Emissivity ....................................37 13. Temperature compensation (Temp comp) ........................... 38 14. Image view ................................... 39 15. Image Capture ..................................40 16. Illumination ..................................41 17. SD card ....................................41 18. Charging ....................................41 BlueEyes Technology www.BlueEyes.com.tw... - Page 4 20. USB connection to PC ................................42 21. Safety ....................................43 22. Notes for use ..................................43 23. Software ....................................44 23.1 System Requirements ..............................44 23.2 USB mode for software ..............................44 23.3 USB camera ................................... 45 23.4 USB disk ..................................48 BlueEyes Technology www.BlueEyes.com.tw...
-
Page 5: Introduction
1. Introduction 1.1 About this manual Thank you for purchasing the BE-5302 Thermal Imager. In order to use this product properly, please read the entire manual carefully before using it, especially the section on "Safety precautions before use". If you have read this manual in its entirety, it is recommended that you keep it in a safe place with your thermal imager or in a place where you can access it at any time for future use. -
Page 6: Precautions And Restrictions Before Use
10. Use the infrared video thermometer in a windless indoor environment. 11. Pedestrian flow control should be carried out at the detection site, and the measuring line should be mainly passed by a single person in slow steps, otherwise it will affect the BlueEyes Technology www.BlueEyes.com.tw... - Page 7 22. The infrared image pyrometer should not be used in an electromagnetic interference field. 23. The infrared thermometer has operating limitations in small spaces because it is too close to focus. BlueEyes Technology www.BlueEyes.com.tw...
-
Page 8: Place
1.4 cleanliness 1. Unplug the power cord before cleaning the unit. 2. For difficult to clean spots, soak a soft cloth in water, wring it out, wipe it off, and dry the machine with a soft dry cloth. BlueEyes Technology www.BlueEyes.com.tw... -
Page 9: Pedestrian Flow Control And Route Planning
1.5m for the front and back of the distance between the two people, otherwise it will affect the accuracy of the measurement of infrared video thermometer. The following is our proposed route arrangement. BlueEyes Technology www.BlueEyes.com.tw... -
Page 10: Height And Shooting Angle
50 cm after turning to pass, to ensure that the subject can be infrared video thermometer to capture the forehead temperature. The following is our recommended height and shooting angle for the thermal imager. BlueEyes Technology www.BlueEyes.com.tw... -
Page 11: Temperature Detection Of Major Areas
The temporal artery from the forehead to the upper edge of the temporal cavity is the main temperature detection area, which may affect the accuracy of the temperature measurement if the subject wears a hat, has a low head, has a long fringe, and has too large a frame. BlueEyes Technology www.BlueEyes.com.tw... -
Page 12: Moisture-Proof
– When the machine falls from a height or is damaged for other reasons – When the machine is operated according to the instructions in this manual but does not work properly 1.10 Temperature measurement and calibration BlueEyes Technology www.BlueEyes.com.tw... -
Page 13: Intellectual Property Rights
The Company reserves the right to amend, adjust or change the contents of this manual, and in case of any incomplete matters, shall comply with the relevant regulations or explanations of the Company, and may at any time make supplementary announcement on the official website at the following address https://www.blueeyetech.com BlueEyes Technology www.BlueEyes.com.tw... -
Page 14: Specification
Image storage Micro SD card Power A single Li-ion 3.7V/5000mAh 26650 battery Display 2.8" TFT LCD Product size 236mm x 75.5mm x 86mm Standard accessories Manual, Type-C USB cable, 16GB TF card Standard carton gross weight 2.2kg BlueEyes Technology www.BlueEyes.com.tw... -
Page 15: Appearance
Terminal Protection Cover up key White Lighting Photo Browser Infrared Thermal Imaging Lens right click Visible Light Lens Back to button Take a shot of the trigger button. SET Setting Key LCD monitor Bracket fixing screw holes BlueEyes Technology www.BlueEyes.com.tw... -
Page 16: Show Description
Resolution: 320 (vertical) x 240 (horizontal) Description. Description. Center temperature High Temperature Warning Automatic tracking of temperature Automatic tracking of temperature maximums maximums Auto-calibration in progress Temperature Color Bar Automatic tracking of temperature lows Current Battery Level Main Menu Current Time BlueEyes Technology www.BlueEyes.com.tw... -
Page 17: Power On/Off
Calibrating will disappear before measuring. When the Calibrating... prompt appears on the screen, pause the temperature measurement, which may not be accurate. Please wait for the Calibrating... prompt to disappear before taking the measurement. BlueEyes Technology www.BlueEyes.com.tw... -
Page 18: Measurement
5. Press the SET key to select the center point or high and low temperature point to open or close. 6. Press the return button to return to the main menu and thermal imaging screen . BlueEyes Technology www.BlueEyes.com.tw... -
Page 19: Palette
8. Palette BE-5302 can choose from a variety of color palettes, so that you can adjust the most suitable color palette according to the field environment and the use of the situation, the current color palettes include Iron, Rainbow, White Hot, Red Hot, Black Hot, Lava, Rainbow HC, etc. - Page 20 Iron Rainbow White Hot Red Hot Black Hot Lava Rainbow HC BlueEyes Technology www.BlueEyes.com.tw...
-
Page 21: Point Temperature
SET button to apply, and read the current point temperature . 6. If the current temperature point is selected to be turned off, press the SET key to turn it off. 7. Press the return button to return to the main menu. BlueEyes Technology www.BlueEyes.com.tw... -
Page 22: Image Mode
4. Press the up/down button to select different photo modes, the photo modes are thermal imaging, digital camera (visible light), and fusion. 5. Press the SET key to apply the current mode after selection. 6. Press the return button to return to the main menu and thermal imaging screen . BlueEyes Technology www.BlueEyes.com.tw... - Page 23 Press the Back button to return to the Main Menu and Thermal Imaging In the fusion imaging mode, after returning to the thermal imaging measurement screen, you can select different fusion ratios by pressing the left/right button. BlueEyes Technology www.BlueEyes.com.tw...
-
Page 24: Settings
1. After entering the settings menu, press the up/down button to select the language o ption. 2. Press the SET button to select the language. 3. Press the up/down button to select Chinese or English. 4. Press the SET key to save the current setting. BlueEyes Technology www.BlueEyes.com.tw... -
Page 25: Date And Time
4. Press the SET key to select the time node. 5. Press the up/down button to add or subtract time. 6. Press the SET key to save the set value. 7. Press the Back button to return to the previous menu after setting. BlueEyes Technology www.BlueEyes.com.tw... -
Page 26: Temperature Unit
2. Press the SET key to enter the temperature unit setting. 3. Press the up/down button to select different temperature units . 4. Press the SET key to save the setting value, then press the Return key to return to the previous menu. BlueEyes Technology www.BlueEyes.com.tw... -
Page 27: Hi/Lo Alert
5. Select the temperature value and press the SET key to enter the setting value . 6. Press the up/down button to add or subtract values. 7. When finished, press the Back button to save the settings and return to the pre vious menu. BlueEyes Technology www.BlueEyes.com.tw... - Page 28 When the warning is turned on, an alarm will appear in the screen when the temperature exceeds the set range, as follows. BlueEyes Technology www.BlueEyes.com.tw...
-
Page 29: Measurements
5. Press the up/down button to add or subtract values. 6. Press the SET key to save the measurement parameters after setting. 7. Press the Return button to return to the previous menu level. Please refer to [11. Emissivity] for details of measurement parameters. BlueEyes Technology www.BlueEyes.com.tw... -
Page 30: Display Brightness
4. Press the SET key to select and save the settings. 5. Press the Return button to return to the previous menu level. The higher the brightness, the less power consumption, the shorter the time of use of the equipment. BlueEyes Technology www.BlueEyes.com.tw... -
Page 31: Auto Power Off
4. Press the SET key to select and save the setting. 5. Press the Return button to return to the previous menu level. There are four options for auto shutdown time: 5 minutes, 10 minutes, 30 minutes and off auto shutdown. BlueEyes Technology www.BlueEyes.com.tw... -
Page 32: Usb Mode
1. USB disk mode: You can view photos and analyze data on your computer after connecting to a Windows computer. 2. USB camera mode: Real-time picture mirroring function can be realized when connected to a Windows PC. BlueEyes Technology www.BlueEyes.com.tw... -
Page 33: Auto Save
Do not disconnect the SD card while saving and viewing photos. It is recommended to store no more than 1000 photos to avoid affecting the machine's response speed. When the number of photos exceeds 1000, please clean the SD card in time. BlueEyes Technology www.BlueEyes.com.tw... -
Page 34: System Settings
3. Press the up and down button to select the corresponding system setting function . 4. Press the SET button to proceed to the next menu level. 5. Press the Return button to return to the previous menu level. BlueEyes Technology www.BlueEyes.com.tw... -
Page 35: Device Information
1. In the system settings, press the up/down button to select the device information option . 2. Press SET button to access the device information. 3. Press the Return button to return to the previous menu . The capacity here refers to the storage capacity of the SD card currently in use. BlueEyes Technology www.BlueEyes.com.tw... -
Page 36: Factory Reset
2. Press the SET key to enter, then press the up/down button to select whether to resume the factory setting. 3. Press SET key to confirm. 4. Press the Return button to return to the previous menu. Do not force other operations during the restoration of factory settings to avoid errors. BlueEyes Technology www.BlueEyes.com.tw... -
Page 37: Format Sd Card
3. Press the up/down button and press the SET key to select whether to format the SD card . 4. Press the Return button to return to the previous menu . Do not forcefully remove the SD card or perform other operations during the SD card formatting process to avoid errors. BlueEyes Technology www.BlueEyes.com.tw... -
Page 38: Emissivity
Copper oxide 0.78 water 0.96 lacquer brick 0.75 Tapes 0.96 black paper 0.86 gypsum 0.75 asphalt 0.96 wood 0.85 Stainless Steel 0.14 Black Aluminum 0.95 Cast iron 0.81 aluminum plate 0.09 rubber 0.95 rust copper plate 0.06 BlueEyes Technology www.BlueEyes.com.tw... -
Page 39: Temperature Compensation (Temp Comp)
13. Temperature compensation (Temp comp) To adapt to different environments and venues, you can perform manual temperature compensation. Please see 10.5 measurement parameters for detailed operation. BlueEyes Technology www.BlueEyes.com.tw... -
Page 40: Image View
3. Press the SET key to access the full screen. In full screen mode. 4. Tap the SET button to access the photo information and delete the photo . Note: You cannot force the SD card to be plugged or unplugged during the photo viewing process to prevent errors. BlueEyes Technology www.BlueEyes.com.tw... -
Page 41: Image Capture
Photos can only be saved when an SD card is installed. Do not disconnect the SD card while saving and viewing photos. It is recommended to store no more than 1000 photos to avoid affecting the machine's response speed. When the number of photos exceeds 1000, please empty your SD card in time. BlueEyes Technology www.BlueEyes.com.tw... -
Page 42: Illumination
If you need to reboot the device, please unplug the Type-C USB cable, disconnect the power and reboot the device. 19. Maintenance Clean the structure's outer shell with a damp cloth or weak alkaline soap solution. Never use abrasives, isopropyl alcohol or solvents to clean the casing or lens of an instrument. BlueEyes Technology www.BlueEyes.com.tw... -
Page 43: Usb Connection To Pc
You can use a USB cable to connect to a Windows computer to enable large screen display with preset or custom audio alerts when over temperature. 1. Please contact your agent or our company to obtain the BE-5302 computer software and complete the installation. -
Page 44: Safety
Due to the inherent temperature drift characteristics of the sensor, the sensor will occasionally have inaccurate temperature measurement, the sensor will automatically open the shutter and make temperature correction, in order to product measurement accuracy must wait for the temperature to stabilize before reading the value. BlueEyes Technology www.BlueEyes.com.tw... -
Page 45: Software
23. Software Please ask your vendor or BlueEyes Technology for software to use with the BE-5302. 23.1 System Requirements The computer on which the software is installed must meet the following specifications. CPU at 1GHz or higher 1GB or more of memory ... -
Page 46: Usb Camera
Live Image alarm setting Alarm Information List of alarm history Full screen mode Press Zone 2 twice to enter full screen mode. Double press Zone 2 or press the ESC key to exit full screen mode. BlueEyes Technology www.BlueEyes.com.tw... - Page 47 When an audible alarm is enabled, an audible alarm will be alerted . When alarm generation is enabled, an alarm history file will be generated, and images of the time of the alarm (1 image) and before and after the alarm (3 images each) will be BlueEyes Technology www.BlueEyes.com.tw...
- Page 48 For example, you can add a guiding phrase such as "If you are passing through the test area, please go to the review area for further temperature measurement, thank you for your cooperation". C:\Program Files (x86)\Thermal Analyzer-K\Sound\EN BlueEyes Technology www.BlueEyes.com.tw...
-
Page 49: Usb Disk
23.4 USB disk Area Description Menu. Option to view a list of images or image information List of folders in SD memory card Picture List BlueEyes Technology www.BlueEyes.com.tw... - Page 50 Double-clicking on any of the 4 image files in the Area 4 image list will open the current image file and display the relevant information. The details of the picture will be displayed on the right side of the window. BlueEyes Technology www.BlueEyes.com.tw...
- Page 51 Select points, lines, rectangles, and circles to draw on the picture, and on the right side you will record the data of the drawn picture. Used to select the color to be painted. Used to delete selected drawing graphics. BlueEyes Technology www.BlueEyes.com.tw...
- Page 52 In the bottom right corner of the window, the temperature of the Meta point where the image cursor is located is displayed. The top right corner of the window is used to set the temperature units, either Celsius or Fahrenheit. This is the end, thank you for your patience in reading! BlueEyes Technology www.BlueEyes.com.tw...
- Page 53 Note ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── BlueEyes Technology www.BlueEyes.com.tw...
- Page 54 Note ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── BlueEyes Technology www.BlueEyes.com.tw...
- Page 55 Note ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── ────────────────────────────────────────────────────────── BlueEyes Technology www.BlueEyes.com.tw...
- Page 56 © BlueEyes Technology Corporation. All rights reserved. PRINTED IN TAIWAN This paper is for informational purposes only. BlueEyes is registered trademarks or trademarks of BlueEyes Technology Corporation. Other product or company names mentioned herein may be the trademarks of their respective owners.
