DMP Electronics SCS-104 Installation Manual

MODEL SCS-104 LINE CARD
Installation Guide
DESCRIPTION
The SCS-104 provides four digital
dialer (DD) lines and a network
connection for communication to
DMP panels. Each card includes one
Ethernet network connection. Each
card also includes a non-shielded
eight-pin modular connector that
supports up to four digital dialer
lines, when connected to a standard
RJ61 jack.
An optional PC software
application, SCS-CTM Check-in
Table Manager, is available to
backup the SCS-104 records of
all supervised network accounts
for up to 32 different SCS-104 line
cards. The SCS-CTM program is
compatible with SCS-104 Version
100 or higher. For complete
operation information, refer to the
SCS-CTM User's Guide (LT-0940).
Contact DMP Customer Service to
purchase a copy of the SCS-CTM
Check-in Table Manager software.
Compatibility
• DMP SCS-1R Network Enabled
Receiver
What is Included?
• One SCS-104 Line Card
• Hardware pack
OVERVIEW
To complete an SCS-104 Line Card installation, this guide walks you through
these required steps:
Reset
1.
Load
Power 2.
DTR
Line 1
Line 2
Line 3
Line 4
1
2
Install the SCS-104 Line Card.
Connect communication lines.
INSTALL THE LINE CARD
Install the line card in any one of the rack positions with the card
puller in the up position. Connect the line card cable from the
processor card to the line card with pin 1 up. The line card's number is
determined by the cable it's connected to.
Rack-Mounting
Holes (4)
SCS-150 Receiver

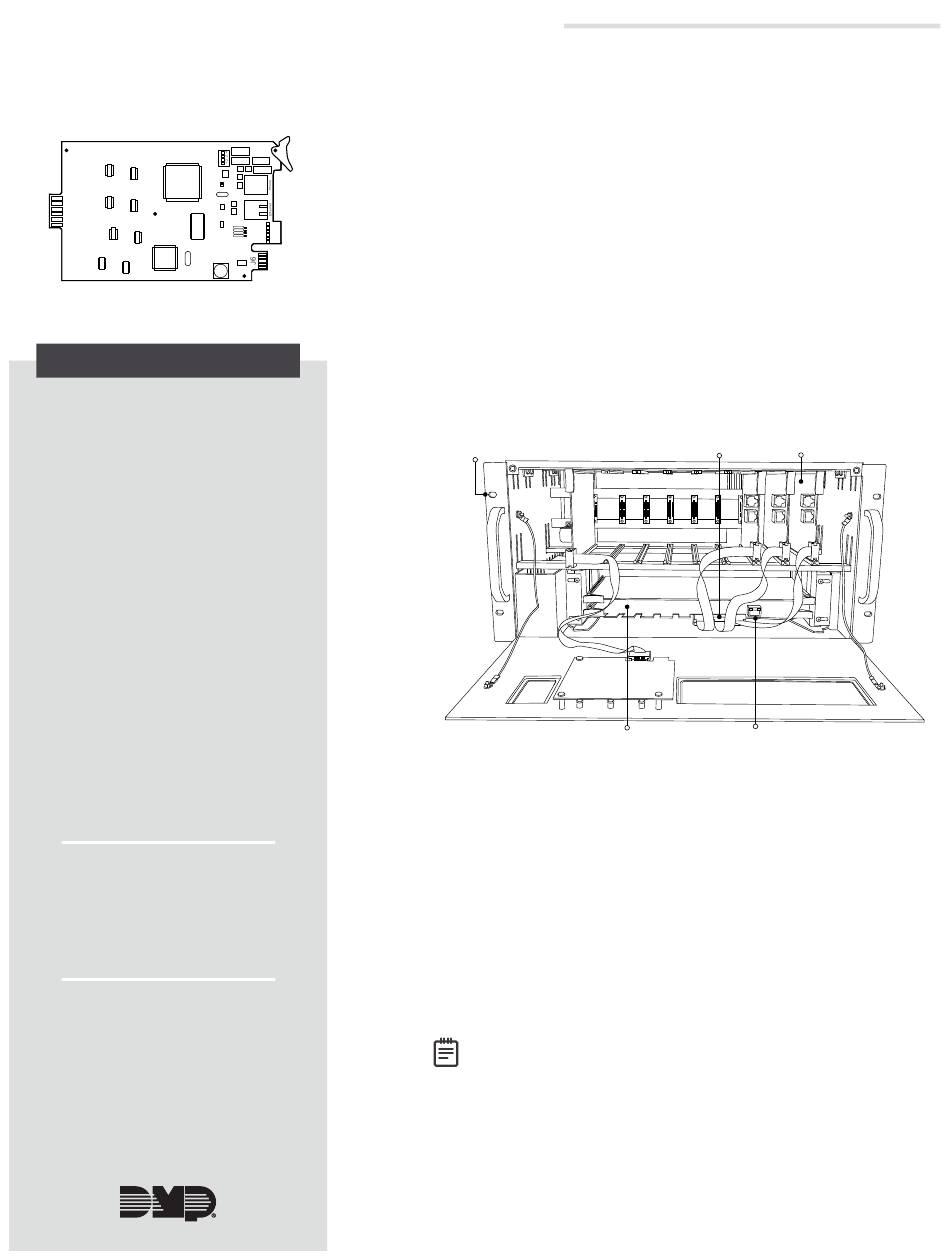

Figure 1: SCS-104 Line Card Positions in the SCS-1R
CONNECT COMMUNICATION LINES
Connect network and digital dialer lines to the SCS-104 as
needed.
Network
Connect an Ethernet cable from the line card to the customer's
network. Maximum line impedance is 100 Ohms. The SCS-104
automatically communicates UDP or TCP and uses 128-bit or 256-
bit AES Encryption with compatible panels.
Note: 256-bit encrypted messages sent to the SCS-1R
receiver from an XR550E Panel with Version 104 or higher
requires SCS-104 Line Cards with Version 102 or higher.
Digital Dialer
Connect a phone line from the line card to the customer's phone
line. Use a standard 103J voice grade (analog) line. Cables can
be fed through the slot in the receiver back plate. Maximum line
impedance is 100 Ohms. Refer to Figure 2 for pinout.
The SCS-104 is registered with the FCC, registration number
CCKCN03BSCS-104; Ringer Equivalence 0.3B.
Line Card
Connector
SCS-150
Network Connection
Processor Card
SCS-104
Line Card
