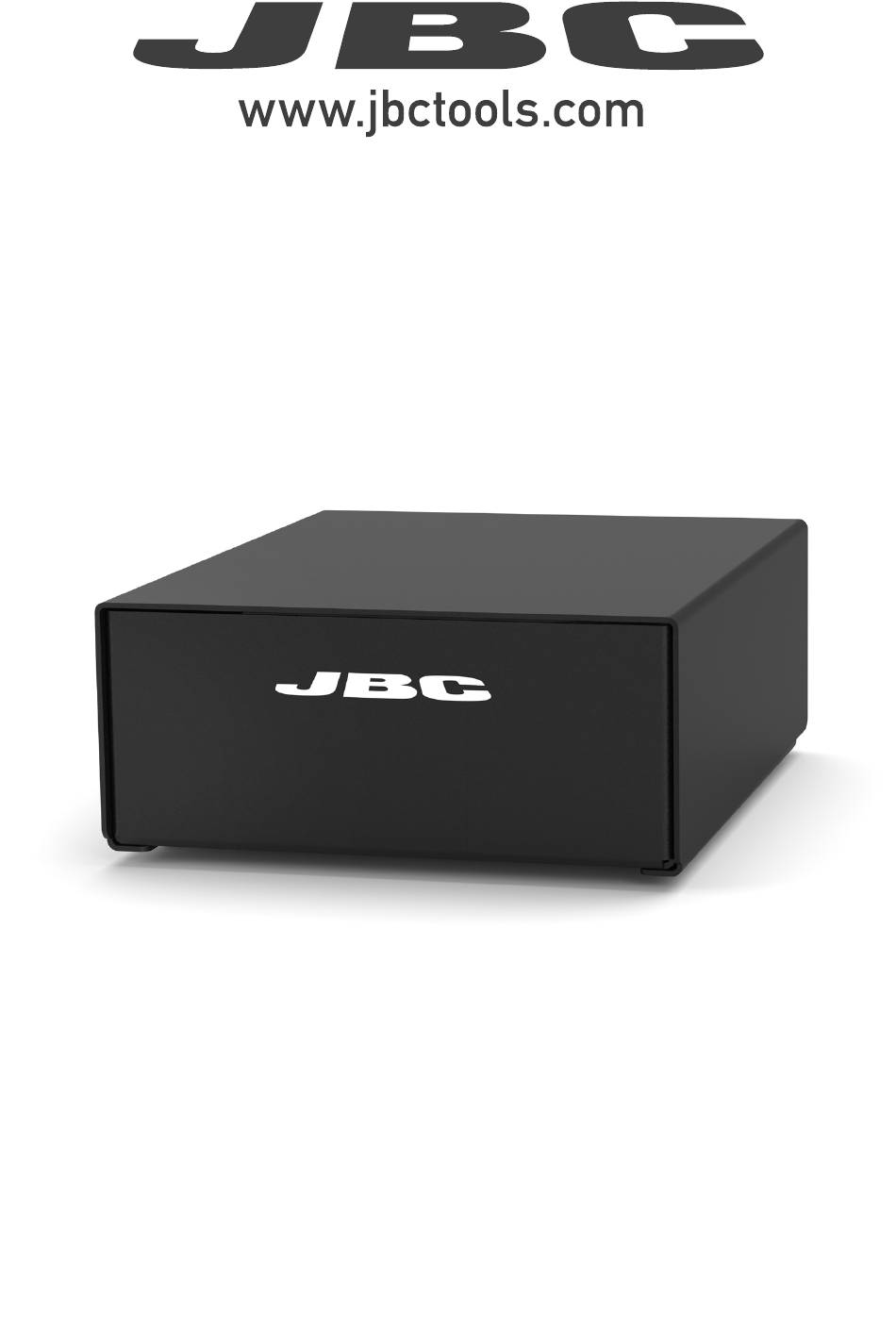

- Page 1 INSTRUCTION MANUAL Control Box for Robot...
-
Page 2: Packing List
This manual corresponds to the following references: - UCR245-5A - UCR470-5A Packing List Either Ref. UCR245-5A or Ref. UCR470-5A is included in UCR box: Control Box for Robot .............. 1 unit Tool Cable 3m ....1 unit Ref. 0027924 Power Cord 1.5m ..1 unit Communications Manual ...... - Page 3 Due to overload wait until the device has cooled down 7 times Short-circuit Check if the cartridge is compatible with the Control Box 12 times Memory error Reset the Control Box If the error persists, contact with JBC technical service.
- Page 4 Connection - UCR can be connected to a PLC by a five-pin Communications Cable (Ref. 0020261). - For a proper connection, it is necessary to connect only three cables to the corresponding 3 pins at a typical DB9 male connector (PLC or computer).
- Page 5 Compatibility UCR can be used with both solderin irons, TR and TRA, and its cartridge ranges R245 and R470 respectively. Connect any of those soldering irons with the provided tool cable (Ref. 0027924). See the table below to check the compatibility of the devices.
- Page 6 UCR245-5A / UCR470-5A CONTROL UNIT FOR AUTOMATION Dimensions 1,693 2,992 1,693 4 x M4 max. depth 12 (4 x M4 max. depth 0,472) 6,378 (in) (in)
- Page 7 w w w.jbctools.com Work Place Example GSFR *Not included, sold separately...
-
Page 8: Maintenance
Fuse. If necessary, use a flat screwdriver to return it to the station. lever it off. Fuse Holder - Replace any defective or damaged part. Only use original JBC spare parts. - Repairs should be performed only by a JBC authorized technical service. - Page 9 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the equipment for any purpose other than soldering or rework. Incorrect use may cause fire. - The main cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 10 Notes...
-
Page 11: Specifications
w w w.jbctools.com Specifications Control Box for Robot Ref.: UCR245-5A Ref.: UCR470-5A UCR245-5A 100 - 240V 50/60Hz. Input fuse: 2.5A. Output: 21V. - Output Peak Power: 160W - Temperature Range: 90 - 450 ºC / 190 - 840 ºF - Total Net Weight: 2581 g / 5.69 lb - Package Dimensions/Weight: 328 x 258 x 208 mm / 3160 g... - Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
