- Page 1 ® Video Laryngoscope System Instructions for Use Dilon Technologies, Inc 12050 Jefferson Ave Newport News, VA 23606 +1.855.CoPilot +1.855.267.4568 www.CoPilotVL.com...
- Page 2 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 3 ® Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 4 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 5: Table Of Contents
Check the Operational Status......24 Tips for Intubating with the CoPilot VL +..25 ® Cleaning and Maintenance..........28 Specifications..............32 Temperature Guidelines........32 General Cautions..........33 Icons.................35 Warranty, Service, and Replacement......37 Limited Warranty..........37 Ordering Replacement Sheaths and Bougies..42 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 6: Introduction
Every patient. Every time. Our affordable video laryngoscope makes video laryngoscopy available for ALL your patients. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 7: What's Included

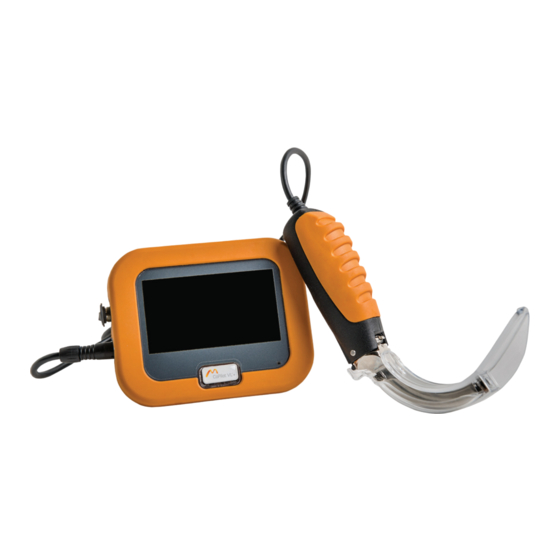

+ system comes with everything you ® need to start using it right out of the box. Inspect all components prior to use for any obvious physical damage that may have occurred during shipping. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 8 CoPilot VL ® + Disposable 3730 Sheaths 3740 • Adult Size 3 • Adult Size 4 Power Supply 1400 (AC Adapter) Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 9: Features Of The Copilot Vl
® are no buttons to push and no settings to change. When the video blade is fully opened, the display will turn on and the battery status indicator will illuminate. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 10: Display - Side View
Power Supply Input Video Cable Input Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 11: Video Handle And Blade
Prior to use, confirm full functionality of the device. Open the video blade to engage the unit and verify that the LEDs on the end of the blade are illuminated and that the display is showing a clear image. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 12: Disposable Sheaths
Note: Sheaths are provided in sealed pouches. Examine each pouch for damage, including breach of seal, prior to use. Do not use sheath if the seal is damaged or breached. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 13 With the system powered on, slide a new CoPilot VL ® disposable sheath over the end of the video blade until it snaps into place. Note: Examine the sheath for any visible signs of damage prior to use. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 14 This mechanism allows the contaminated sheath to be disposed of without requiring the user to touch the sheath. Depress eject button to discard sheath. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 15: Iv Pole Clamp Use
IV pole. Hand- tighten only. Do not use tools to tighten the knob. Do not use the clamp to support any other device. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 16 Features of the CoPilot VL ® Next, slide the display unit onto the IV pole mount until it locks into place. CLAMP CLAMP Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 17 Features of the CoPilot VL ® The IV pole clamp also provides a convenient place to store the video handle when not in use. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 18: Using The Built-In Stand
CoPilot VL + straight up. Place the display on the ® flat surface and pull out the bottom of the built-in stand to the desired viewing position. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 19: Powering The Copilot Vl
+ power supply should be kept ® immediately available for charging. Green: Charged. Orange: Approximately 20% battery life remaining. Recharge as soon as possible. Red: Less than 10% battery life remaining. Charge immediately! Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 20 Warning: If any battery leakage is observed, discontinue use. Do not touch. Contact Dilon Technologies for further instructions. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 21: Using The Copilot Vl
The plug and receptacle are shaped to fit only one way. DO NOT force or twist the plug into place. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 22 Using the CoPilot VL ® Power Supply Input Video Cable Input To turn the device on, simply open the video blade. The LEDs will illuminate and an image will appear on the display. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 23 Finally, attach a new CoPilot VL + disposable sheath to the ® video blade. With the video blade open, slide the disposable sheath over the end of the video blade until it snaps into place. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 24: Check The Operational Status
LEDs and battery status indicator will turn on. While the device is powered on, you should check the battery status indicator on the front of the display and recharge if necessary. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 25: Tips For Intubating With The Copilot Vl
This is the most important tip for ensuring success with video laryngoscopy. Often, a grade 2a or 2b can be easier to intubate than a grade 1. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 26 If the endotracheal tube does not enter easily into the trachea, you may try turning the endotracheal tube 90 degrees counter clockwise and gently advance into the trachea. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 27 Remove the stylet and verify proper endotracheal tube placement. e. The reusable rigid stylet must be cleaned via the method below after every use. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 28: Cleaning And Maintenance
The CoPilot VL + must be properly handled, cleaned and ® disinfected before use and between uses. To do otherwise presents an infection-control risk to both medical personnel and the patient. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 29 1 minute to loosen/remove excessive visible soil. Moisten a lint free cloth with purified water. (ie: DI water, RO water, Distilled water, etc.) Wipe handle with Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 30 STEP 1: Clean the CoPilot VL + Rigid Stylet ® Rinse the stylet in clean tap water and scrub with a soft bristled brush until all visible contamination has been Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 31 Fast Non Lumen Cycles. Autoclave Steriliza- Minimum: 3 minutes (steam tion at 134° C (273° F) or 4 cycle) minutes and 132° (270°F) Maximum: 8 minutes at 133°C (273°F) Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 32 Warning: Always ensure the display is unplugged from the power supply before cleaning! Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7 Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 33: Specifications
(10% - 95%) Operating the CoPilot VL + outside the recommended ® operating temperature environment may negatively impact device performance, may cause damage to the device and will void the warranty. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... -
Page 34: General Cautions
Do not use if the item has been damaged. If the battery status indicator is yellow or red, connect to power supply before use. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 35 Do not expose the CoPilot + to X-rays, gamma rays, or other ionizing radiation, ® or to strong electric or magnetic fields. A traditional laryngoscopy should be available in the event of electrical interference. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 36: Icons
Indication that disposables delivered are non-sterile. Indication not to use if packaging is open or damaged. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 37 Contents are fragile. Keep dry. Conforms To UL STD 60601-1, AAMI STD ES60601- 1, IEC STDS 60601-2-18 & 60601-1. Certified To CSA STD C22.2 # 60601-1. 5010123 Component sterilized using ethylene oxide. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 38 Warranty, shall not be binding on Dilon unless approved in writing by an officer of Dilon. This warranty is not transferable to anyone who subsequently purchases, leases or otherwise obtains the hardware from you. The warranty does not apply to any expendable, disposable or consumable items supplied with the hardware.
-
Page 39: Warranty, Service, And Replacement
(b) by the use of parts or accessories not approved or supplied by Dilon; (c) by modification of the hardware; (d) as a result of service by anyone other than Dilon or Dilon’s Authorized Service Provider;... - Page 40 HARDWARE, EVEN IF DILON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU AGREE THAT REPAIR, REPLACEMENT OR REFUND, AS APPLICABLE, UNDER THE WARRANTY SERVICES DESCRIBED HEREIN ARE YOUR SOLE AND EXCLUSIVE REMEDIES WITH Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 41 Please visit www.CoPilotVL.com contact information. 3. Dilon will attempt to resolve all technical issues over the phone with your assistance. If the problem cannot be resolved, you will be issued Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
- Page 42 RMA number on the inside of the package. Technical Support Please visit our website at www.CoPilotVL.com information on receiving Dilon technical support. Note: All terms and conditions subject to change without notice. Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7...
-
Page 43: Ordering Replacement Sheaths And Bougies
Warranty, Service, and Replacement Ordering Replacement Sheaths and Bougies Contact Dilon Technologies, Inc to order replacement or extra parts. +1.855.CoPilot +1.855.267.4568 www.CoPilotVL.com Copyright 2019 Dilon Technologies, Inc. All rights reserved. Version 1.7... - Page 44 CoPilot VL ® The first time. Every time.
