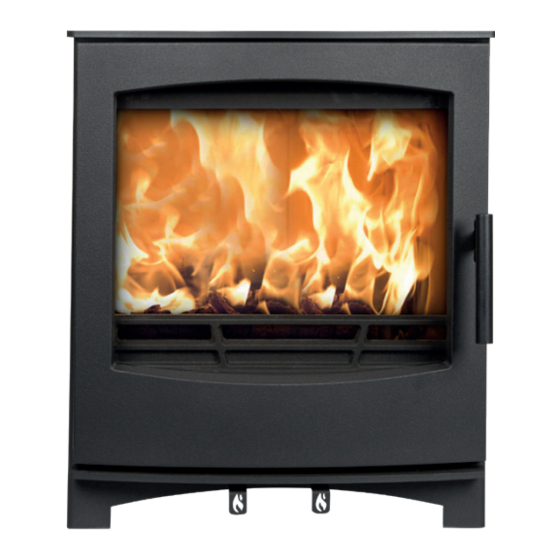

- Page 1 User & Installation Manual MODEL: Small Tinderbox Multifuel BS EN 13240:2001 + A2:2004 Medium Tinderbox Multifuel Tested as intermittent appliances burning wood logs Large Tinderbox Multifuel www.mi-fires.com Version_2_06_2021_Tinderbox MF...
- Page 2 At Mi-Fires, we believe the best way to enjoy the maximum benefit from your new stove is that it should be installed by a fully trained competent stove installer that can identify the optimal way to install and commission your new appliance.
-
Page 3: Table Of Contents
Small Tinderbox Multifuel ........ -
Page 4: Compliance
COMPLIANCE 1.1 TECHNICAL DATA This appliance designed for intermittent operation only. SMALL TINDERBOX MULTIFUEL Item No. 137-SMF-TBOX Mi-Fires Small Tinderbox MF (Multifuel) Weight 59Kgs Dimensions (WxDxH mm) 370 x 319 (max footprint/exc handle) x 548 (inc flue) Flue size 125mm MEDIUM TINDERBOX MULTIFUEL Item No. -
Page 5: Installation Of The Stove
Remember, it is your responsibility that rules in force are complied with. MI-Fires freestanding stoves do not require a constructional hearth beneath them as they do More information can be found out by consulting: not cause the floor temperature to exceed 100°C, British Standards BS 8303. -
Page 6: Flue Requirements
Small Tinderbox Medium Tinderbox Large Tinderbox Multifuel Multifuel Multifuel Back wall (Combustibles) 350mm 450mm 500mm Side Wall (Combustibles) 600mm 600mm 600mm Hearth Projection front 300mm 400mm 400mm Hearth Projection Side 150mm 150mm 150mm Back Wall (Non-Combustibles) 50mm 50mm 50mm Side Wall (Non-Combustibles) 75mm 75mm 75mm... -
Page 7: Ventilation / Fresh Air Supply
This appliance must not be used in a shared flue In normal scenarios this stove complies with the system guidance given in approved Document J of the Building Regulations that states that purpose The minimum flue draft is 12 Pascal’s at nominal provided ventilation is not required in England output. -
Page 8: Lighting And Using The Stove
Check all the levers are operating fully and freely. same room as the appliance. CO Alarm: Building Regulations require that Further guidance is available in BS EN50292:2002 whenever a new or replacement fixed solid fuel or and from the alarm manufacturer’s instructions. wood/biomass appliance is installed in a dwelling Provision of an alarm must not be considered a a carbon monoxide alarm must be fitted in the... -
Page 9: Lighting A Fire In The Wood Burning Stove
stoking should burn down to embers before new This appliance is designed to operate with the logs are added. door closed, except for lighting and reloading, failure to close the door during operation can To obtain the best possible combustion, you result in fume spillage. -
Page 10: Lighting A Fire Using Smokeless Fuel
water inside the wood thus creating very poor Care should be taken to ensure that the firebox is conditions for combustion. not overfilled with smokeless fuel – it should be no higher than the log guard. The main cause of burning problems with 3.8 IMPORTANT INFORMATION FOR wood stoves is due to excessively damp wood. -
Page 11: Cleaning And Maintenance
4.6 CLEANING THE STOVE intensively the stove is used. The stove’s surface is treated with a heat-resistant Spare parts are available from MI-Fires directly or Senotherm® paint, which will stay at its best just from your local Mi-Fires dealer. by being vacuumed with a small, soft mouthpiece 4.3 GLASS... -
Page 12: Installer Details And Handover Checklist
EXCLUSIONS & LIMITATIONS ■ Secondary steel baffle ■ Door and glass rope seals The warranty will be void if the appliance is not ■ Paint finish installed by a suitably qualified person, or is not It is a condition of the warranty that the stove installed in accordance with the current building is only used in accordance with the installation regulations. -
Page 13: Annual Service / Sweeping Record
5.3 ANNUAL SERVICE / SWEEPING RECORD CERTIFICATE DATE ENGINEER/SWEEP NAME RETAINED... -
Page 14: Warranty Registration
5.4 WARRANTY REGISTRATION To validate and start your warranty please fill out this form and return it to: MI-Flues Ltd, MI-Fires Warranty Registration, Taymin Business Park, Mitcham Road, Blackpool, Lancashire, FY4 4QN Your Details Name Address Postcode Contact Number Email... -
Page 15: Stove Dimensions
6. STOVE DIMENSIONS SMALL TINDERBOX MULTIFUEL... -
Page 16: Medium Tinderbox Multifuel
MEDIUM TINDERBOX MULTIFUEL... -
Page 17: Large Tinderbox Multifuel
LARGE TINDERBOX MULTIFUEL... - Page 18 MI-Flues Ltd Taymin Business Park Mitcham Road sales@mi-flues.com Blackpool, Lancashire sales@mi-fires.com FY4 4QN www.mi-fires.com...
