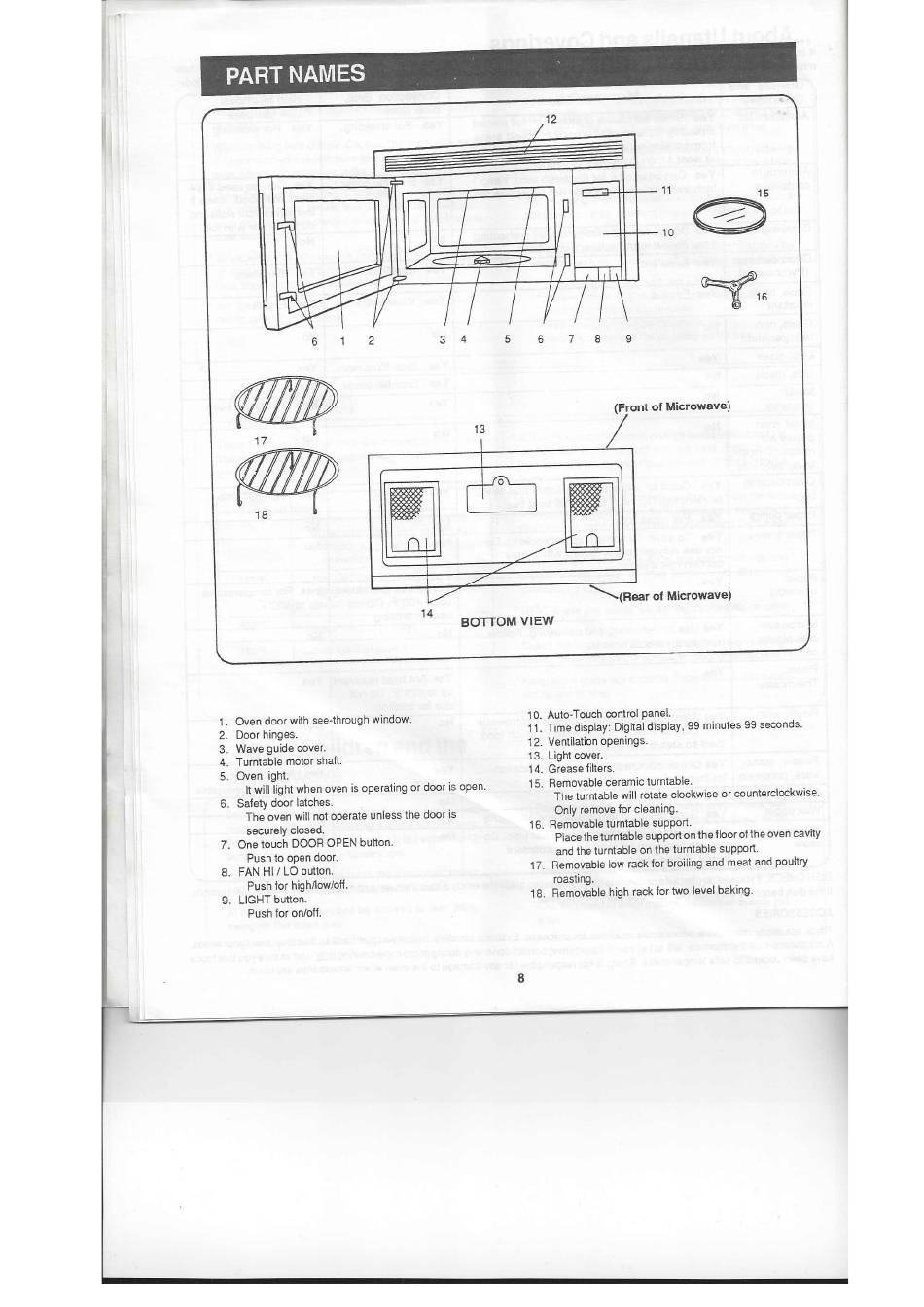

PART NAMES

2
6
1. Oven door with see-through window.
2. Door hinges.
3. Wave guide cover.
4. Turntable motor shaft.
S. Oven light.
It will light when oven is operating or door is open.
6. Safety door latches.
will
The oven not operate unless the door is
securely closed.
7. One touch DOOR OPEN button.
Push to open door.
8. FAN HI/ LO button.
Push for high~ow/off.
9. LIGHT button.
Push for on/oil.
12
8
5 7
3 4 6
13
14
BOTTOM VIEW
10. Auto-Touch control panel.
11. Time display: Digital display, gg minutes gg seconds.
12. Ventilation openings.
13.
Light cover.
14. Grease filters.
15. Removable
The turntable will rotate clockwise or counterclockwise.
Only remove for cleaning.
16. Removable turntable support.
Place the turntable support on the floor of the oven cavity
and the turntable on the turntable support.
17. Removable low rack for broiling and meat and poultry
roasting.
18. Removable high rack for two level baking.
8
~16
9
(Front of Microwave)
ceramic turntable.
