Boss Ladderspan 3T Instruction Manual

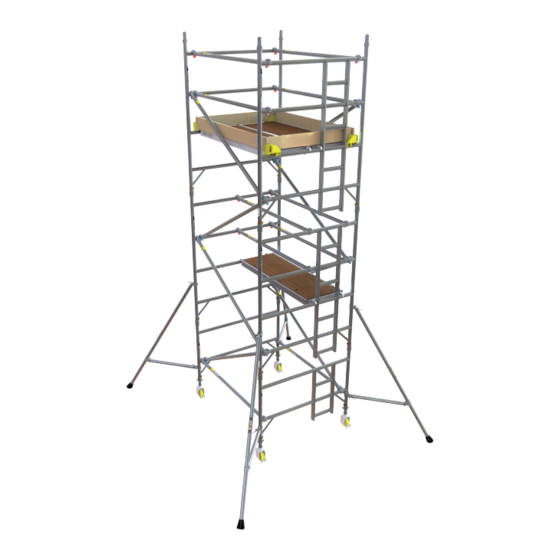

Mobile aluminium tower 1450/850 ladderspan
Hide thumbs
Also See for Ladderspan 3T:
- User manual (32 pages) ,
- Instruction manual (28 pages) ,
- Instruction manual (28 pages)
Related Manuals for Boss Ladderspan 3T
Summary of Contents for Boss Ladderspan 3T
- Page 1 Ladderspan Mobile Aluminium Tower 1450/850 Ladderspan 3T - Through the Trapdoor Method Instruction Manual...
- Page 2 BoSS Ladderspan 3T Instruction Manual...
-
Page 3: Table Of Contents
Contents Safety First Introduction Tower Designation Maintenance - storage - transport Building the Tower Pre-Assembly Checks Component Diagram Quantity Schedule Stabilisers Assembly 2.5.1 Assembly for 1450 Towers 2.5.2 Assembly for 850 Towers Dismantling Using the Tower Safety Checklist Pre-Use Checklist Movement of the assembled prefabricated tower scaffold bossaccesstowers.com... -
Page 4: Safety First
Please note that diagrams are for illustrative purposes only. Instruction manuals are also available to download at www.bossaccesstowers.com. BoSS mobile aluminium towers are light-weight scaffold towers used throughout the building and construction industry for both indoor and outdoor access solutions where a stable and secure platform is required. -
Page 5: Tower Designation
Clear Height Class (H1 = 1.85m, H2 = 1.90m) Maintenance - storage – transport • The BoSS mobile tower system is robust and requires little maintenance. • All components and their parts should be regularly inspected to identify damage, particularly to joints. -
Page 6: Building The Tower
This structure is designed to be self-supporting under the loading condition requirements of EN 1004-1:2020 and does not require tying in. Consideration should be given to potential wind conditions if the tower is left unattended. BoSS Ladderspan 3T Instruction Manual... -
Page 7: Component Diagram
Building the Tower Component Diagram Horizontal Brace Ladder Frame 4 Rung Span End Toe Frame Board 4 Rung Side Board Platform (Fixed and Trapdoor Decks) Diagonal Brace Stabiliser Span Frame 2 Rung Adjustable Leg Instruction Ladder Frame Castor Manual 2 Rung bossaccesstowers.com... - Page 8 Building the Tower BoSS Ladderspan 3T Instruction Manual...
- Page 9 bossaccesstowers.com...
-
Page 10: Quantity Schedule
High clearance frames must not be used in conjunction with walk-through frames. Component Weight Description Code (kg) High Clearance Frame 30051500 10.0 1.8m High Clearance Frame 30151500 12.0 2.5m BoSS Ladderspan 3T Instruction Manual... -
Page 11: Stabilisers
Building the Tower If end walk-through access is required at the base of 2.2m, 4.2m, 6.2m, 8.2m, 10.2m or 12.2m platform height, 1450 wide towers, walk-through frames may be used. In this case the 1m ladder frame and span frame must be fitted above the walk-through frames. -
Page 12: Assembly
Ensure when the base is levelled the distance from the ground to the first climbing rung is less than 400mm. • Stabilisers of the size specified in the quantity schedule should be fitted at the earliest opportunity. BoSS Ladderspan 3T Instruction Manual... -
Page 13: Assembly For 1450 Towers
Building the Tower 2.5.1 Assembly for 1450 Towers Push castor into adjustable leg. Push castor/adjustable leg assemblies into 2 rung span frame. Lock castors. Repeat procedure with 2 rung ladder frame. It is recommended that for ease of levelling a gap of 50mm is left between Unlocked the bottom of the leg and the adjustable nut. - Page 14 Fit two diagonal braces (blue) in opposing directions, between the 1 and the 3 rungs. Ensure the frames are vertical and level by checking with a spirit level and setting the adjustable legs as required. BoSS Ladderspan 3T Instruction Manual...
- Page 15 Building the Tower Fit a temporary deck on the lowest rungs. Fit a trapdoor deck on the rung (2.0m) with the trapdoor next to the ladder. Ensure the trapdoor is positioned with the hinges towards the outside of the tower as shown. Climb the ladder and, from the protected trapdoor position, fit guardrails on the 5 and 6...
- Page 16 7 and 9 rungs as shown. Climb up the ladder, and from the protected trapdoor position, fit the guardrails on the 9 and 10 rungs, in that order, on both sides of the tower. BoSS Ladderspan 3T Instruction Manual...
- Page 17 Building the Tower Continue to add pairs of end frames, diagonal braces and fit trapdoor decks as shown in the previous steps. Add guardrails at 0.5m and 1.0m, (in that order), above the platform from the protected trapdoor position. Do not climb onto the deck until all guardrails are in place.
-
Page 18: Assembly For 850 Towers
Steps 2 and 3 for the 1450 tower procedure (pages 11 and 12). Fit a trapdoor deck on the 2 rung. Fix the horizontal braces (red) as guardrails on the 3 and 4 rungs (2 and 4 rungs above the platform) on both sides of the tower. BoSS Ladderspan 3T Instruction Manual... - Page 19 Building the Tower Fit two diagonal braces in INTERLOCK CLIP Unlocked opposing directions between the Locked and 3 rungs. Ensure that the frames are vertical and level by checking with a spirit level and setting the adjustable legs as necessary. Fit stabilisers (see notes on page 9).
-
Page 20: Dismantling
When removing the guardrails unlock the four claws furthest from the trapdoor and return immediately to the protected position within the trapdoor. The other claws can then be unlocked, and the guardrails removed from the tower . BoSS Ladderspan 3T Instruction Manual... -
Page 21: Using The Tower
Using the Tower Safety Checklist This inspection must be carried out before initial use, after moving the tower, if any environmental condition change that may affect the tower and at regular intervals determined by local regulations. Local regulations may also specify other information to be supplied to the user. These regulations must be followed. -
Page 22: Use
• Sheets, tarpaulins, or signage must not be attached to this tower outdoors. • Towers above 8.2m platform height are for indoor use only. BoSS Ladderspan 3T Instruction Manual... -
Page 23: Movement Of The Assembled Prefabricated Tower Scaffold
Using the Tower Movement of the assembled prefabricated tower scaffold Ensure gloves or other suitable hand protection is worn. Before • Survey the route to be taken. Assess the ground condition/slope and any overhead obstructions or hazards. • Tower stability will be improved by reducing the height before movement. •... - Page 24 For further information and support for the Ladderspan or any other products and services, please contact: Werner UK Sales & Distribution Ltd. Blackwater Trading Estate, The Causeway, Maldon, Essex, CM9 4LJ, United Kingdom WernerCo Hungary Kft. 6000 Kecskemét, Szt. Istvan Krt. 19. +44 (0)1621 745900 uk.customercare@wernerco.com bossaccesstowers.com...
