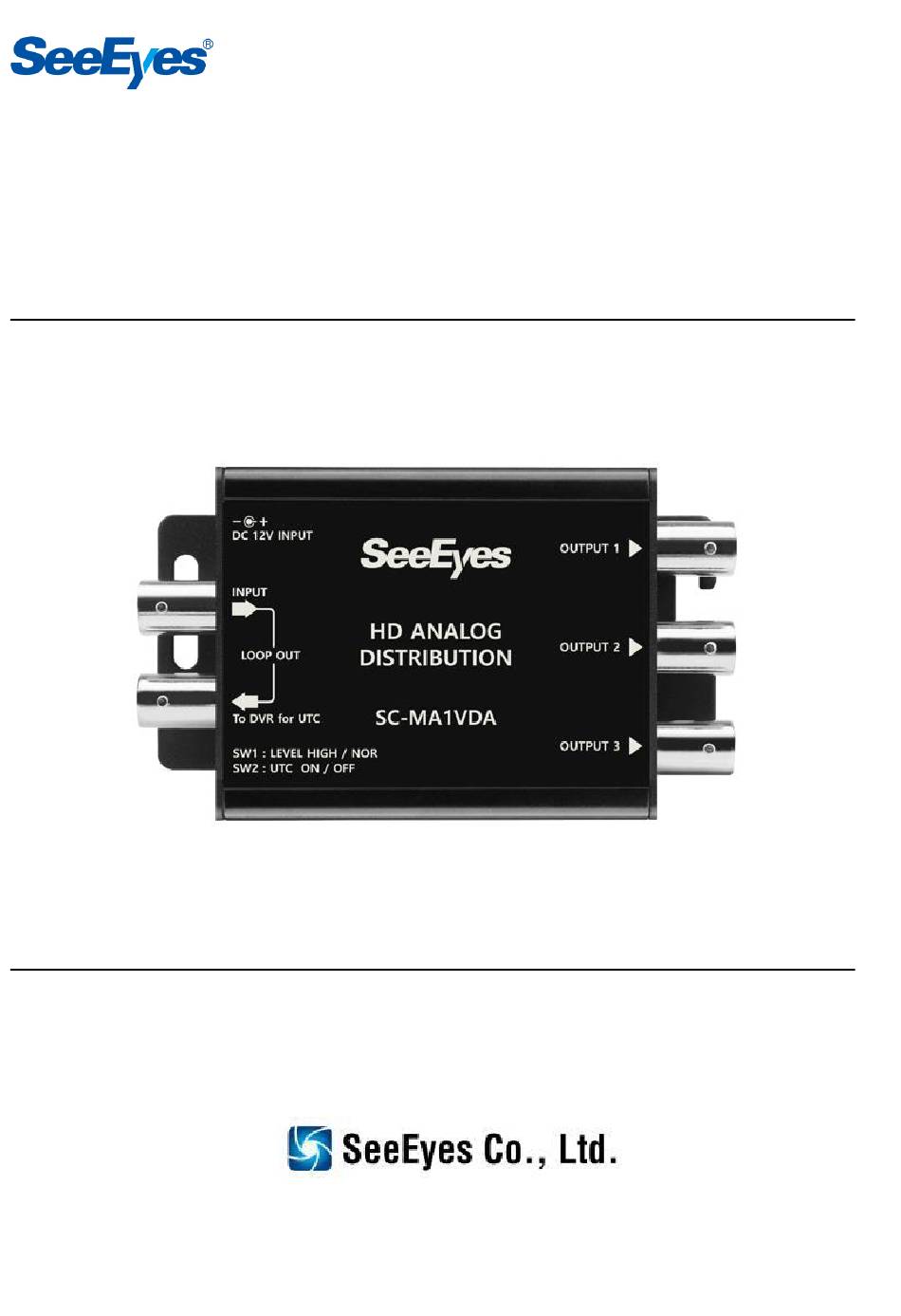

- Page 1 Release Version 3.0 HD ANALOG SIGNAL 1 IN 4 OUT DISTRIBUTOR SC-MA1VDA User Manual...
- Page 2 Release Version 3.0 Precaution and Safety Guidelines Please read this user manual prior to using this product. Avoid installation in the following places: above 50℃ or under -10℃; places exposed to rain, snow, or high humidity; places containing or exposed to oil or gas; places exposed to vibration or shock; places under direct sunlight or exposed to outdoor weather conditions;...
- Page 3 1. Introduction 1-1. Overview SC-MA1VDA is a device that distributes one input signal into four output signals. It is possible to output the same resolution as the input signal resolution, and supports HD Analog and SD/CVBS input. (HD Analog AHD/TVI/CVI ~4K resolution supported) UTC is available for HD Analog signals (AHD, TVI, CVI) up to 4K resolution.
-
Page 4: Application Diagram
Release Version 3.0 2. Product Parts & Installation guide 2-1. Part names and Function Name Function ① Power Input Part DC 12V Input port ② POWER LED In case of power input, RED LED ON ③ INPUT Video signal input port ④... -
Page 5: Troubleshooting
Release Version 3.0 2-3. How to Set the UTC Setting Switch Set SW2 to ON when using the UTC function and OFF when not in use. There is a difference in the level that recognizes UTC signals depending on the format of the video signal and the ... -
Page 6: Specifications
Release Version 3.0 Specifications Model SC-MA1VDA Video Input AHD, TVI, CVI, CVBS Video Output Same as Input 1280x720p 25/30Hz, 1920x1080p 25/30Hz, 2560x1440p 15/25/30Hz, 2592x1944p 12/20Hz 3840x2160p 15 1280x720p 25/30Hz, 1920x1080p 25/30Hz, UTC Supported Resolutions 2560x1440p 15/25/30Hz, 2592x1944p 12/20Hz 3840x2160p 12.5/15 1280x720p 25/30Hz, 1920x1080p 25/30Hz, 2560x1440p 25/30Hz, 3840x2160p 12.5/15... -
Page 7: Warranty Certificate
Release Version 3.0 5. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name...
