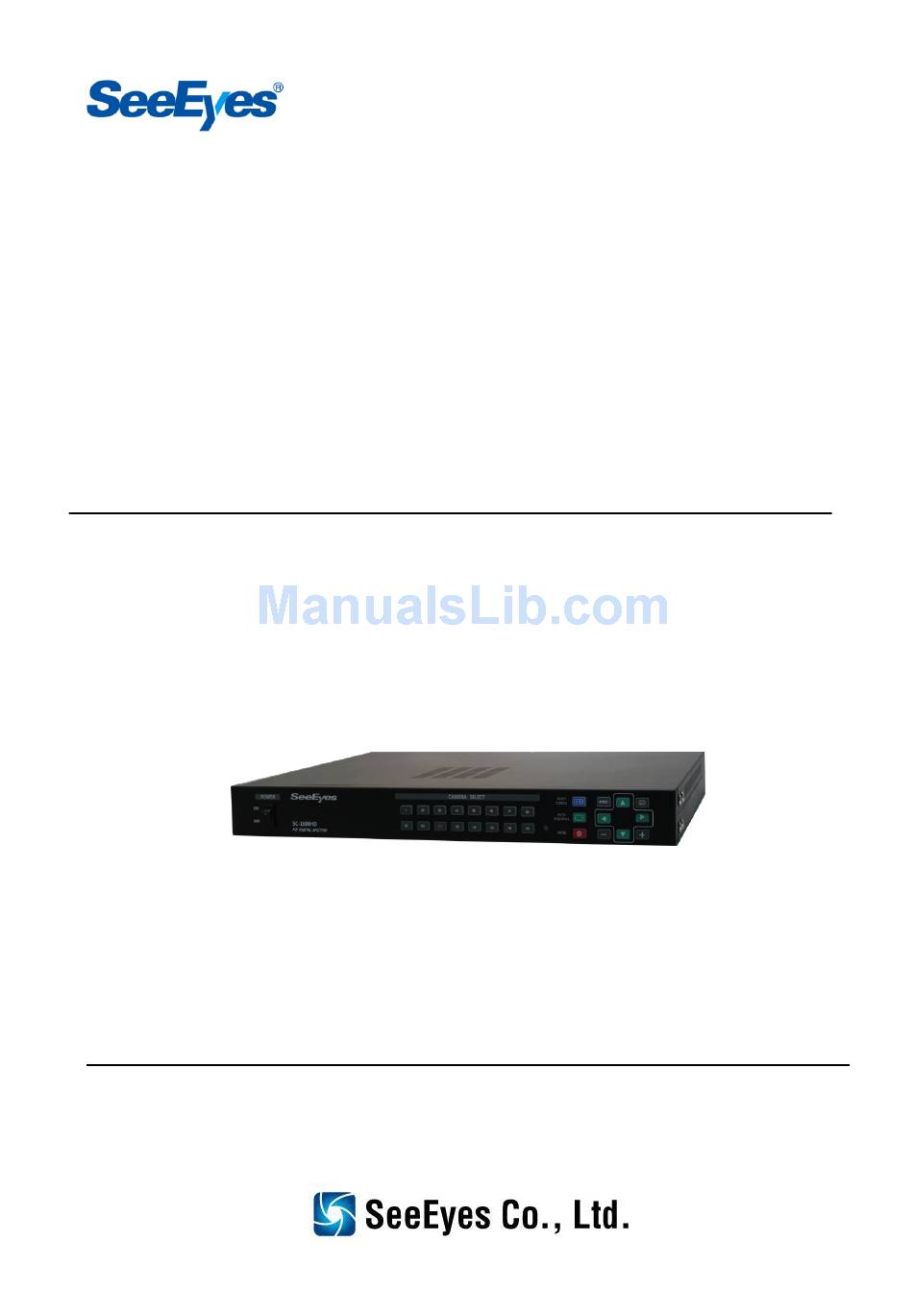

Release Version 1.2
16 Channel video input HD analog splitter
SC-16MHD
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-16MHD and is the answer not in the manual?

Questions and answers

Related Manuals for SeeEyes SC-16MHD

Summary of Contents for SeeEyes SC-16MHD

  • Page 1 Release Version 1.2 16 Channel video input HD analog splitter SC-16MHD User's Manual...
  • Page 2 Release Version 1.2 Precaution and Safety Guidelines Please read this user’s manual thoroughly prior to the use this unit for its easy and convenient use. Caution (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death) ■...
  • Page 3 Release Version 1.2 - The appropriate temperature for this product is between 0°C and 40°C. ■ Please take special care not to have this product any foreign substances inside, and do NOT put any heavy objects on this product. - It may cause the malfunction of this product. ■...
  • Page 4 1. Introduction 1-1. Overview SC-16MHD is a 16 channel multiformat video digital splitter, which provides high-resolution display in various split modes in real time. This item supports various input such as AHD, TVI, CVBS and has various output ports to be compatible with many different external devices. Also, remote control operation is available through the RS-485 port.

  • Page 5: Product Parts And Peripheral Device Connection

    Release Version 1.2 3. Product Parts and Peripheral Device Connection 3-1. Front Interface ① POWER: To turn the power on/off. ② CHANNEL DISPLAY: To display a selected channel in Full screen. ③ MENU: To set up this item and/or check the current settings. ④...
  • Page 6 Release Version 1.2 3-2. Backside Interface ① VIDEO OUTPUT: Looped through output (AHD, TVI, CVBS). ② VIDEO INPUT: HD Analog (AHD, TVI) and CVBS video input (up to 16 channels). ③ CVBS OUT: CVBS video output. ④ VGA: VGA output.s ⑤...

  • Page 7: Menu Setup

    Release Version 1.2 4. Menu Setup 4-1.SYSTEM 4-1-1. Status ▶ Use a mouse for the menu settings. ▶ Enter the Setup menu to show the following screen. - Device Name - Device ID - Date - Firmware (Firmware version) - Language (Language settings) - Camera (Camera status) 4-1-2.
  • Page 8 Release Version 1.2 4-1-2-1. Set up Device Name - Set up the device name. - Click the keyboard icon( ) on the right side to display the following keyboard on the screen. - Enter a device name by using the above keyboard popped up. ①...
  • Page 9 Release Version 1.2 4-1-2-2. Date / Time - Click the date and time menu ( ) to see the calendar as follows. - Set up the date (year/ month/ day) by using following arrow keys. ∙ : To change the year. ∙...
  • Page 10 Release Version 1.2 4-2. DEVICE 4-2-1. DISPLAY ▶ Enter [Device] → [Display] to show the following screen. 4-2-1-1. General - Set video output resolutions. - Set the CVBS video to NTSC, PAL or AUTO. - The default setting is ‘AUTO’. - Reboot this splitter after changing the settings to recognize the video signal again.
  • Page 11 Release Version 1.2 4-2-1-2. OSD Icon ▶ Enter [Display] → [OSD Icon] to show the following screen. - Select which items will be shown on the screen (OSD). - Reset it to the factory default settings by clicking ‘Default’ on the right side. - Adjust the position of OSD icons by the OSD position options at the bottom.
  • Page 12 Release Version 1.2 4-2-1-4. Sequence ▶ Enter [Display] → [Sequence] to show the following screen. - Select the channels to be in Auto Sequence mode and set the display switching time. ∙ X1 Seq: Set the display switching time in Full screen. ∙...
  • Page 13 Release Version 1.2 4-2-1-5. Spot Monitor ▶ Enter [Display] → [Spot Monitor] to show the following screen. - Select the channels to be in Auto Sequence mode of Spot monitor and set the display switching time ∙ X1 Seq: Set the display switching time in Full screen. ∙...
  • Page 14 Release Version 1.2 4-2-2. ALARM ▶ Enter [Device] → [Alarm] to show the following screen. 4-2-2-1. Alarm-In - Select alarm names and types in this menu. - Click the keyboard icon in the ‘Alarm-in’ menu to show the keyboard and enter the name. - Available to set specific channels for Alarm input.
  • Page 15 Release Version 1.2 4-2-2-2. Alarm-Out ▶ Enter [Alarm] → [Alarm-Out] to show the following screen. - Select alarm names and types in this menu. - Click the keyboard icon in the ‘Alarm-in’ menu to show the keyboard and enter the name. - Select types of alarm out in the ‘Type’...
  • Page 16 Release Version 1.2 4-2-3. CAMERA ▶ Available to contact a PTZ camera when connecting your PTZ camera to the RS-485 Tx. terminal. ▶ Enter [Device] → [Camera] to show the following screen. - Click the keyboard icon in each ‘Name’ menu to show the keyboard and enter each camera name. - Click the number icon in each ‘ID’...

  • Page 17: Display Mode

    Release Version 1.2 Operation 5-1. Functions of the Mouse Press the right button of the mouse to who the following menus. Functions Key Name Color Set up specific channel’s brightness/ darkness/ chroma values Activate or deactivate PTZ control function Picture in Picture function Position Change the position of camera video 5-2.
  • Page 18 Release Version 1.2 5-4-2. Alarm-In Operation ▶ Connect the relevant channel’s alarm signal line(contact signal, which does not have electric signal) and GND line. 5-5. Alarm-Out function 5-5-1. Alarm-Out port - Connect the signal port to COM port and NC or NO.. Example for Alarm-Out...

  • Page 19: Connection Method

    Release Version 1.2 5-6. RS-485 5-6-1. Connection Method ▶ Refer to the ‘4-2-3. CAMERA’ for more information on camera settings. 5-6-2. Control communication data format ▶ Set up the split screen or others by a RS-485 controller in remote distance. - Data Length: 8 Bit, Start/Stop Bit: 1Bit, Parity Bit: None, Baud Rate: 9600 Byte Value...
  • Page 20 Release Version 1.2 5-6-3. RS-485 Control Data Code Function Packet 1CH Full Display 0XA0 0X16 0X01 0X30 0X47 2CH Full Display 0XA0 0X16 0X01 0X31 0X48 3CH Full Display 0XA0 0X16 0X01 0X32 0X49 4CH Full Display 0XA0 0X16 0X01 0X33 0X4A 5CH Full Display 0XA0 0X16 0X01 0X34 0X4B 6CH Full Display...

  • Page 21: Connection Diagram

    Release Version 1.2 6. Connection Diagram...

  • Page 22: Troubleshooting

    • Please check the monitor’s supported signal resolutions. • Please check the connected cable length. No camera video • Please check the camera output resolution. output when • Please reboot SC-16MHD after changing any video resolution or changing video type. resolution...

  • Page 23: Specifications

    Release Version 1.2 8. Specifications Model SC-16MHD Video Input AHD, TVI, CVBS HD-Analog 1920x1080p 25/30Hz, 1280x720p 25/30Hz Input Resolution CVBS NTSC, PAL Loop through Same as the input signal format CVBS 704x480(NTSC), 704x576(PAL) Output Resolution HDMI 1920x1080p 50/60Hz, 1280x720p 50/60Hz, 1024x768...

  • Page 24: Warranty Certificate

    Release Version 1.2 9. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name...
  • Page 25 Release Version 1.2 [MEMO]...
  • Page 26 Release Version 1.2 [MEMO]...
  • Page 27 Release Version 1.2 [MEMO]...
  • Page 28 Release Version 1.2 SeeEyes Co.,Ltd #503~509 Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5831, 5834 FAX: +82-(0)31-777-3512 E-MAIL : overseas@sscctv.com http://www.sscctv.com/eng...
