Universal Tool UT59A Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
0.73 lbs
0.33 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use of Tool

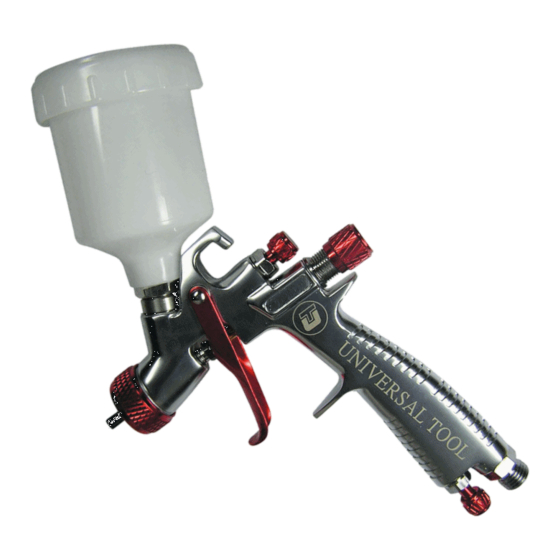

This model is a mini touch-up with an external mix, high capacity spray
gun, designed for high quality production spraying of paint and other
finishing material from a gravity plastic cup. Spray all of small area,
touch-up, detail and miniature artwork spraying.
The material inlet is located directly on the top of the spray gun and the
air inlet is located at the bottom of the spray gun handle.
The fluid control knob located at the rear of the spray gun, the pattern
control knob is located at the left side of the spray gun.
Work Stations
The spray gun should only be used as a handheld hand-operated
device. It is always recommended that the spray gun is used when
standing on the solid floor. It can be used in other positions provided the
spray gun is kept near vertical and the operator has a firm grip and
footing. Any work station must take account that the liquid being
sprayed should not be breathed in and the liquid can be highly
flammable and spraying should never be undertaken near naked flames
or hot surfaces. Do not smoke. It
should also take account that not all of
the liquid being sprayed will be
applied to the object being sprayed
and account must be taken that this
Operating
Prior to shipment, this gun was
treated with an anti corrosive agent,
before using this gun make sure that it
is carefully flushed with thinners.
To use the gun, tighten the air cap
with its stamping number in an
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
2.06 bar 30
psi
n/a bar n/a psi
2.76 bar 40
psi
Yes
Yes
Yes
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
1mm Spray Gun - Touch Up
Gravity Feed Cup (125cc)
Model No/Nos
UT59A
Recommended Hose Bore
Size - Minimum
5/16 Ins 8
Noise Level Sound Pressure Level TBA dB(A)
Sound Power Level TBA dB(A)
Test Method Tested in accordance with ISO
Standard 3744
Vibration Level
Test Method Vibration testing not required for a
spray gun

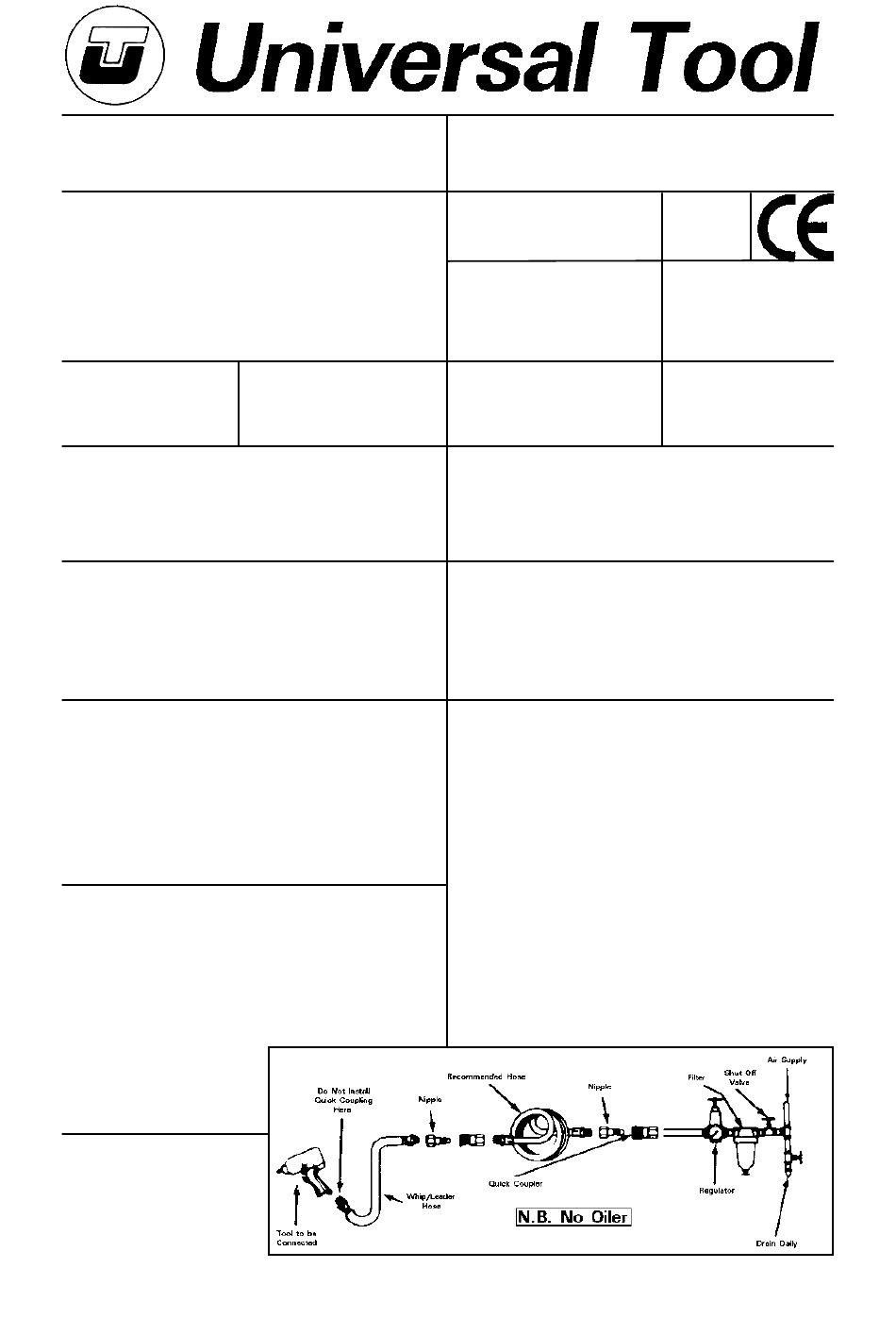

upward direction. Attach material cup to the gun. Attach an air supply
line to the ¼" BSP air inlet. Check for the correct tightening of nut (4) so
that no air will escape but air valve stem (16) still slides. Caution:
Never point spray gun at yourself or any other person. Accidental
discharge of material may result in serious injury. Adjust air pressure to
spray gun. Caution: Do Not exceed 100 psi. Depress spray gun
trigger to spray material. To adjust the amount of material released
(density of fan spray), turn the fluid control knob (7) (counter clockwise
to increase, or clockwise to decrease). To adjust the width of fan spray,
turn the pattern control knob (15) (counter clockwise to increase, or
clockwise to decrease). To adjust the air quality turn the Air Volume
control knob (20) (counter clockwise to increase, or clockwise to
decrease). Note: Care should be exercised when handling spray gun
to avoid damage to the orifice of the air cap and tip of fluid nozzle,
damage to these parts will result in irregular spray patterns
Page No 1
RPM
N/A
Cycles Per Min
N/A
Serial No
Recommended Max.
Hose Length
M/M 30 Ft 10
N/A Metres / Sec²
M
