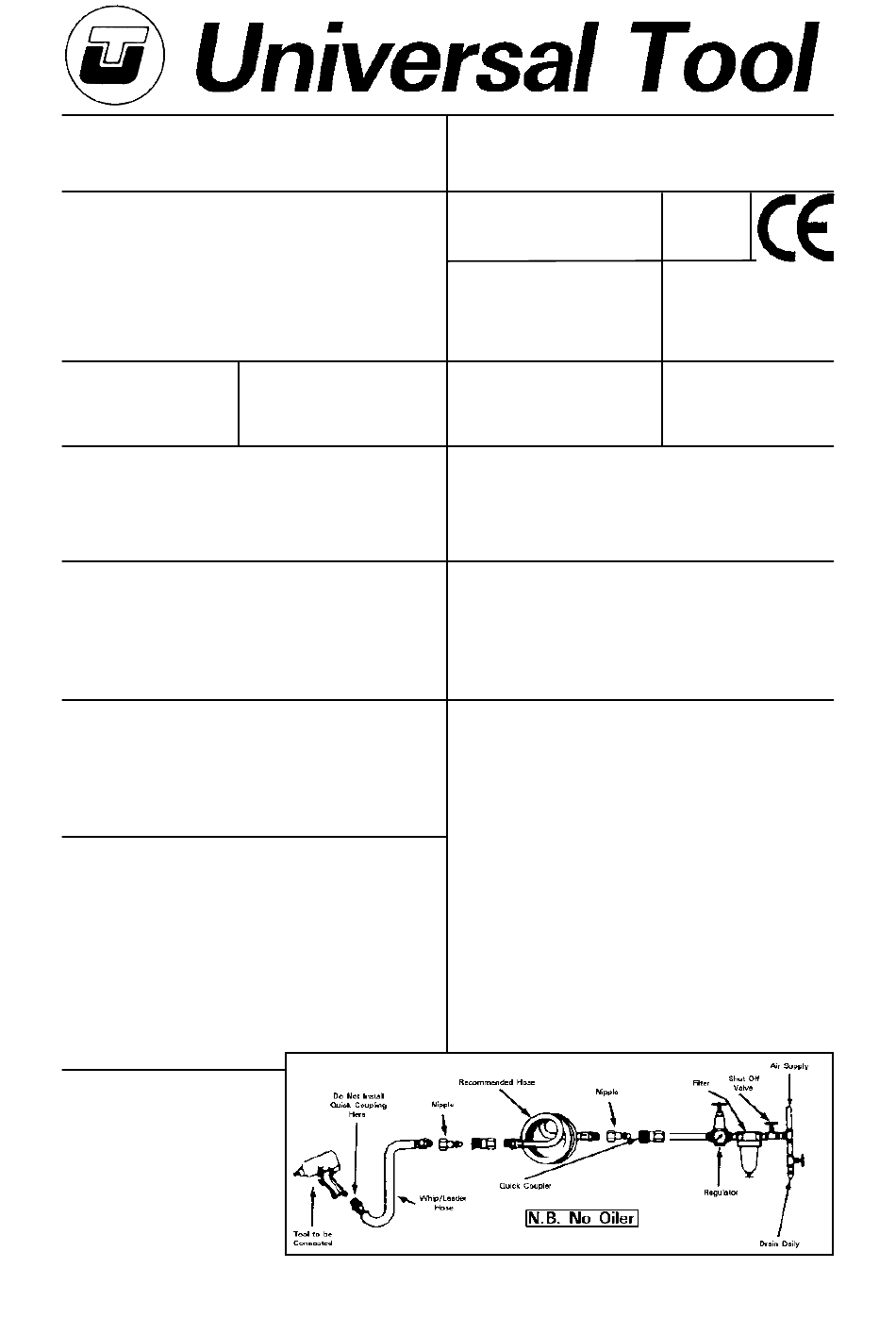

Universal Tool UT57A Operator Instructions Manual

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
1.85 lbs
0.84 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum

Personal Safety Equipment

Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors

Foreseen Use of Tool

This product is designed for the purpose of applying liquids in the form
of paint, lacquers, etc. to a surface for the purpose of providing a
decorative or protective finish. It must not be used for or modified for
any other purpose unless first consulting the manufacturer or an
authorised representative.

Work Stations

The spray gun should only be used as a handheld hand-operated
device. It is always recommended that the spray gun is used when
standing on the solid floor. It can be used in other positions provided the
spray gun is kept near vertical and the operator has a firm grip and
footing. Any work station must take account that the liquid being
sprayed should not be breathed in and the liquid can be highly
flammable and spraying should never be undertaken near naked flames
or hot surfaces. Do not smoke. It should also take account that not all of
the liquid being sprayed will be applied to the object being sprayed and
account must be taken that this surplus, i.e. "over spray" will be
deposited in the surrounding area.

Operating

The Spray Gun is a handheld syphon type
compressed air atomising spray gun
suitable for use with most liquids for paint
spray finishing or the application of
surface coatings. It is a non bleeder type
with external mix nozzle air cap assembly
and full control for material application
and spray pattern between round and fan
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
2.06 bar 30 PSI
n/a bar n/a PSI
4.83 bar 70 PSI
Yes
Yes
Yes
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Spray Gun - Syphon Type
(1 litre cup) 1.8mm
Model No/Nos
UT57A
Recommended Hose Bore
Size - Minimum
5/16 Ins 8
Noise Level Sound Pressure Level TBA dB(A)
Sound Power Level TBA dB(A)
Test Method Tested in accordance with ISO
Standard 3744
Vibration Level
Test Method Vibration testing not required for a
spray gun
(see later). The gun is fitted with a quart (2 pints/1.13 litres) syphon cup
complete with paint strainer.
Use 1.8mm diameter nozzle for polymer paints, oil base paints, epoxy
paints for metals, acrylic lacquers, urethane.
Before spraying any material first read any instructions concerning its
safe use and if nothing is available check with the manufacturer about its
use and the need to use personal safety equipment.
Prepare the paint in accordance with the manufacturer's
recommendations and place in syphon container. Do not overfill.
Connect the gun to a clean, moisture/oil free air supply at the right
pressure. Fit container to the gun and lock in position. Use the material
adjustment control screw (18) to adjust material flow and the fan
adjustment assembly (17) to adjust from round to fan spray pattern.
Make all adjustments before attempting to spray the work piece.
Note the spray gun can work at pressures of between 30 and 70 psi
and the air consumption is approximately for these pressures from 3 to
7 cfm.
For advice on spraying, using, cleaning, etc., the spray gun, see
attached sheets 4 to 7.
Page No 1
RPM
N/A
Cycles Per Min
N/A
Serial No
Recommended Max.
Hose Length
M/M 30 Ft 10
N/A Metres / Sec²
M
