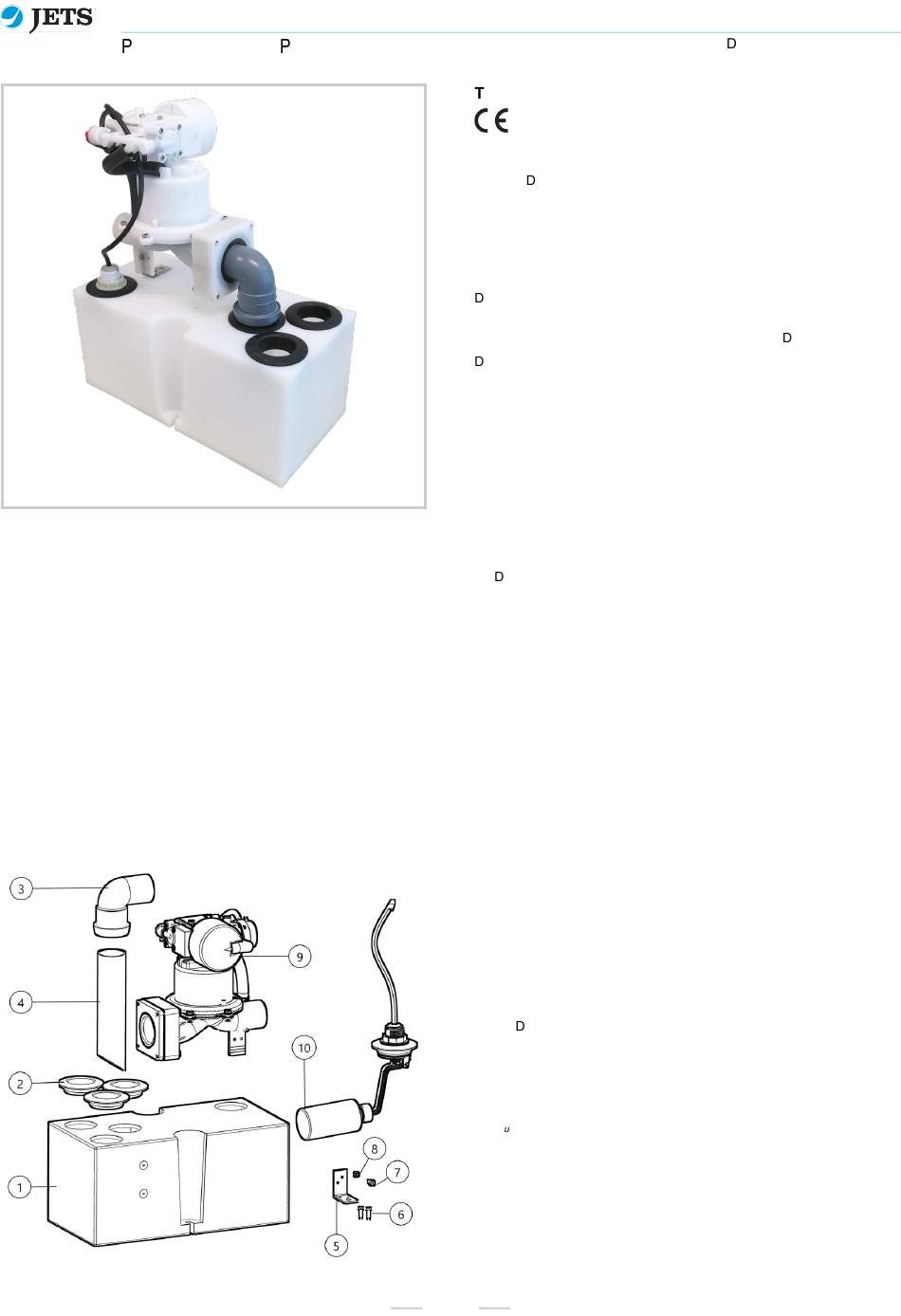

Grey Water Interface Unit 12L
roduct No. GWT800 L

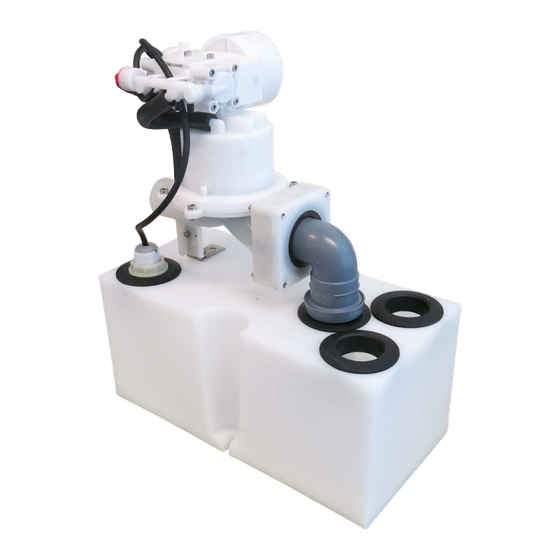

Jets™ Grey Water Interface Unit consists of a tank fitted with a level
switch and a discharge valve. Grey water is led to the tank by gravity
and interfaced with the vacuum system via the valve. The valve is
activated by the water level inside the tank.
echnical Data
Tank Type
........................................
Outside imensions
..................................
Weight
.................................................................................
Generic Material
..................................................................................
Color Range
....................................................................................
Tank Volume
...............................................................................
ischarge Volume
...........................................
Inlet
............................................................................
ischarge Valve Outlet
..................................
Note:
.....................
Values may vary depending on selected components
Disclaimer
Note: Our products and services are offered and sold subject to Jets
Vacuum AS' General Sales Conditions, copies of which will be
furnished upon request. Information provided herein is solely for
information purposes, does not constitute any warranty or
representation of any kind and is subject to change without notice.
We strive to reproduce product colors reasonably accurate. Without
prior written approval, this document or any part of may not be
reproduced in any form. Jets™, Vacuumarator™, Helivac™, VC™,
VO ™, CVS™ and Softsound™ are trademarks and/or registered
trademarks of Jets. © Jets AS. All rights reserved.
Components
1
|
Grey Water Tank 12L, plastic .................................... 080500026*
2
|
Tank/Pipe Seal, ø50mm ............................................ 034505310*
3
|
Pipe Bend, ø50mm 90dg .......................................... 034512584*
4
|
Suction Pipe .............................................................. 034512700*
5
|
Bracket ...................................................................... 010100750*
6
|
Screw, 4x20 .............................................................. 036515607*
7
|
Screw, M5x10 ........................................................... 036531600*
8
|
Nut, M5 ..................................................................... 036304802*
9
|
V Valve, Piston Complete ....................................... 054100955*
10
|
Level Switch ............................................... see product selection
Accessories
Constr ction Characteristics
Rubber Elbow, ø50 w/Hose Clip............................................. 034505450
Rubber Sleeve, ø50 w/Hose Clip........................................... 034505550
Air/Overflow Valve, Complete................................................. 035202511
Level Switch........................................................................... 032803900
Rubber Elbow, ø50/ø60 w/Hose Clip..................................... 034512802
Rubber Sleeve, ø50/ø60 w/Hose Clip.................................... 034512902
1
Tel. +47 70 03 91 00
www.jetsgroup.com
oc. Rev.: 2 (2019-06-17)
Interface Unit/Buffer Tank Assembly
400 x 200 x 473 mm (LxWxH)
Approx. 4 kg
12 Litres
4 Litres at 30% Vacuum
4.5 Litres at 55% Vacuum
iameter - Ø50mm
Outside diameter Ø 50 mm
* Component/s avaliable as replacement parts.
PE
White
