Summary of Contents for Phoenix Contact FL MGUARD Series
- Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.
- Page 2 User manual for the hardware and software of FL MGUARD security appliances User manual UM EN FL MGUARD2...
- Page 3 FL MGUARD RS2000 TX/TX VPN 2700642 FL MGUARD RS4000 TX/TX 2700634 FL MGUARD RS4000 TX/TX VPN 2200515 FL MGUARD SMART2 2700640 FL MGUARD SMART2 VPN 2700639 FL MGUARD PCI4000 2701274 FL MGUARD PCI4000 VPN 2701275 FL MGUARD DELTA TX/TX 2700967 PHOENIX CONTACT 8334_en_02...
- Page 4 How to contact us Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be found on the Internet at: www.phoenixcontact.com Make sure you always use the latest documentation. ...
- Page 5 The receipt of technical documentation (in particular user documentation) does not consti- tute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observ- ing the applicable standards and regulations.
-
Page 6: Table Of Contents
Configuring the FL MGUARD PCI4000 on startup ....... 37 4.2.4 Configuring the FL MGUARD PCI4000 on startup ....... 41 Establishing a local configuration connection ............43 Remote configuration ..................45 Configuration ...........................47 Operation......................47 Management menu ..................... 50 5.2.1 Management >> System Settings ............50 8334_en_02 PHOENIX CONTACT... - Page 7 Egress Queues .................. 261 5.9.3 Egress Queues (VPN) ................ 263 5.9.4 Egress Rules ..................266 5.10 Redundancy ...................... 270 5.10.1 Redundancy >> Firewall Redundancy ..........270 5.10.2 Redundancy >> FW Redundancy Status ........... 280 5.10.3 Ring/Network Coupling ..............285 PHOENIX CONTACT 8334_en_02...
- Page 8 Requirements for flashing ..............325 7.3.2 Flashing procedure for FL MGUARD RS4000/RS2000, FL MGUARD SMART2, FL MGUARD DELTA TX/TX ..........326 7.3.3 Flashing procedure for the FL MGUARD PCI4000 ......328 7.3.4 Installing the DHCP and TFTP server ..........329 8334_en_02 PHOENIX CONTACT...
- Page 9 FL MGUARD2 Technical data ........................331 FL MGUARD RS4000/RS2000 ................. 331 FL MGUARD PCI4000..................332 FL MGUARD DELTA TX/TX................334 ......................FL MGUARD SMART2 Ordering data ....................336 8.5.1 Products .................... 336 8.5.2 Accessories ..................336 PHOENIX CONTACT 8334_en_02...
-
Page 10: Introduction
The device can be configured easily using a web browser. Further information can be found on the Phoenix Contact website at: phoenixcontact.net/products Network features –... - Page 11 Can act as an NTP and DNS server via the LAN interface Support Additional information on the device as well as on release NOTE: notes and software up- dates can be found on the Internet at: phoenixcontact.net/products. PHOENIX CONTACT 8334_en_02...
-
Page 12: Device Versions

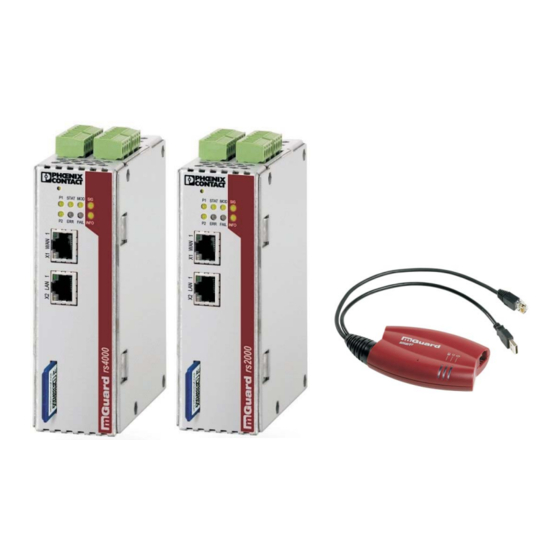

SD cards are not supplied as standard.) The fanless metal housing is mounted on a DIN rail. The following connectivity options are available FL MGUARD RS4000: (LAN/WAN) FL MGUARD RS2000: (LAN/WAN) TX/TX Ethernet/Ethernet TX/TX VPN Ethernet/Ethernet + VPN TX/TX VPN Ethernet/Ethernet + VPN Figure 1-1 FL MGUARD RS4000/FL MGUARD RS2000 8334_en_02 PHOENIX CONTACT... - Page 13 Individual devices or network segments can be safely networked and comprehensively protected. The FL MGUARD DELTA TX/TX can be used as a firewall between office and production networks as well as a security router for small and medium-sized workgroups. Figure 1-4 FL MGUARD DELTA TX/TX PHOENIX CONTACT 8334_en_02...
-
Page 14: Operating Elements And Leds
Ethernet status. Indicates the status of the LAN or WAN port. As soon as the device is connected to the relevant network, a continuous light indicates that there is a connection to the network partner in the LAN or WAN. When data packets are transmitted, the LED goes out briefly. 8334_en_02 PHOENIX CONTACT... -
Page 15: Fl Mguard Smart2
WAN: connection to the network partner is present Flashing WAN: data transmission is active 1, 2, 3 Various LED light Recovery mode. After pressing the Rescue button. codes See “NOTE: Restart, recovery procedure, and flashing the firmware” on page 323 PHOENIX CONTACT 8334_en_02... -
Page 16: Fl Mguard Pci4000
Press the Reset button (for 1.5 seconds). • Alternatively, briefly disconnect the device power supply and then connect it again. If the error is still present, start the recovery procedure (see “Performing a recovery procedure” on page 324) or contact your dealer. 8334_en_02 PHOENIX CONTACT... -
Page 17: Fl Mguard Delta Tx/Tx
Green 100 Mbps Flashing 100 Mbps, data transmission active Green Supply voltage OK STAT Green Flashing The FL MGUARD is ready to operate. System error FAULT FL MGUARD in the booting or flashing state INFO Not used PHOENIX CONTACT 8334_en_02... -
Page 18: Startup
5% ... 95%, (FL MGUARD RS4000/FL MGUARD RS2000, FL MGUARD PCI4000, FL MGUARD DELTA TX/TX) To avoid overheating, do not expose to direct sunlight or other heat sources. NOTE: Cleaning Clean the device housing with a soft cloth. Do not use abrasive solvents. 8334_en_02 PHOENIX CONTACT... - Page 19 Page 30 Work through the individual menu options offered by the FL MGUARD configuration interface. Read the explanations in this user manual in order to determine which settings are necessary or desirable for your operating environment PHOENIX CONTACT 8334_en_02...
-
Page 20: Checking The Scope Of Supply
The FL MGUARD RS4000 and FL MGUARD RS2000 also include: – COMBICON plug-in connector for the power supply connection and inputs/outputs (in- serted) The FL MGUARD DELTA TX/TX also includes: – 12 V DC power supply including different country adapters 8334_en_02 PHOENIX CONTACT... -
Page 21: Installing The Fl Mguard Rs4000/Rs2000
(CAT5), which is not included in the scope of supply. • Connect the internal network interface LAN 1 of the FL MGUARD to the corresponding Ethernet network card of the configuration computer or a valid network connection of the internal network (LAN). PHOENIX CONTACT 8334_en_02... -
Page 22: Service Contacts
250 mA. The button or on/off switch is used to establish and release a predefined VPN connection. The output indicates the status of the VPN connection (see “IPsec VPN >> Global” on page 214 under “Options”). 8334_en_02 PHOENIX CONTACT... - Page 23 During a restart, the signal contact is switched off until the FL MGUARD RS4000/RS2000 has started up completely. This also applies when the signal contact is manually set to “Closed” under “Manual configuration” in the software configuration. PHOENIX CONTACT 8334_en_02...
-
Page 24: Connecting The Supply Voltage
If the supply voltage is not redundant, the FL MGUARD RS4000 indicates the failure of the supply voltage via the signal contact. This message can be prevented by feeding the supply voltage via both inputs (P1/P2) or by installing an appropriate wire bridge between connections P1 and P2. 8334_en_02 PHOENIX CONTACT... -
Page 25: Connecting The Fl Mguard Smart2
For security reasons, we recommend you change the default root and administrator passwords during initial configuration. WARNING: This is a Class A item of equipment. This equipment can cause radio interference in residential areas, and the operator may be required to take appropriate measures. PHOENIX CONTACT 8334_en_02... -
Page 26: Installing The Fl Mguard Pci4000
Use a UTP cable (CAT5). The cable is not supplied as standard. Figure 3-4 FL MGUARD PCI4000 structure Install the FL MGUARD PCI4000 in a free PCI slot. Observe the notes in the documentation for your system. 8334_en_02 PHOENIX CONTACT...
