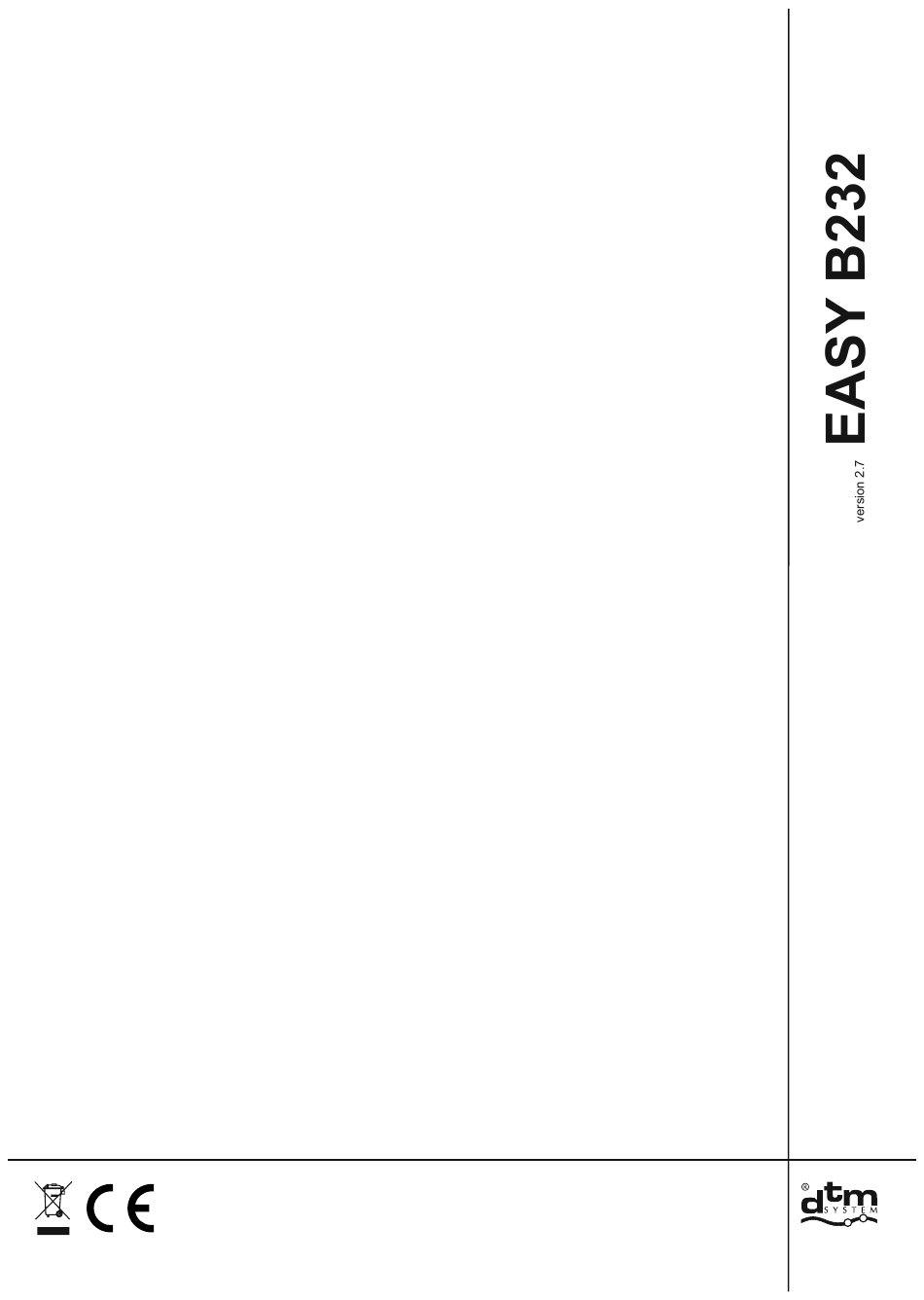

- Page 1 AUTOMATIC SYSTEMS GATE CONTROL UNIT installation and manual DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa ul. Brzeska 7, 85-145 Bydgoszcz tel./fax. (52) 340-15-83, 340-15-84 www.dtm.pl, dtm@dtm.pl...
-
Page 3: Technical Data

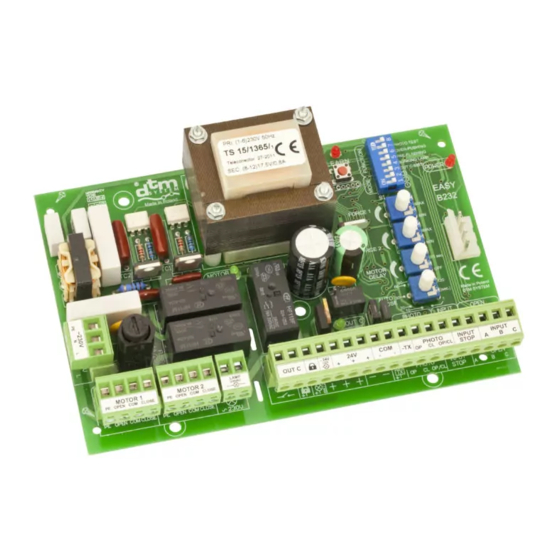

1. Introduction EASY B232 gate control unit is used to control drives of double leaf gates powered by alternating voltage 230V, 50 Hz, max power 350W. With the cooperation of the Easy RX radio card of the capacity of 35 remote controls DTM433MHz series (secured transmission based on the Keeloq system), the driver gains the radio control function. - Page 4 Radio part – receiver EasyRX - Radio module superheterodyne, ensuring high reliability, repeatability and resistance to radio noise -Transmission protection 64-bit dynamically changing Keeloq® - Modulation type/ frequency ASK / 433,92 MHz - Input aerial impedance 50 W - Aerial internal, terminals for external aerial connection - Outputs digital steering output...
-
Page 5: Installation
Device is designed to operate with dangerous 230V/50Hz voltage, turn all power off while installing. EASY B232 control unit is classified as „ Gate and automatic doors” category which indicates special safety measures. The installers task is safe installation of the device which enables maximum reduction of risks connected with its operation. - Page 6 21. accessories Power connector (+24V) 22. LED lamp connector (mass potential max. 6W) 3.3. Description of electric connections of EASY B232 control unit Only qualified specialist, having suitable qualifications, can perform connecting to electrical grid 230 VAC. The delivered control unit is at once ready for the work, all required terminals are connected with themselves, and every installed safety devices is stuck instead of the small wire bridge (jumper).
- Page 7 C O N N E C T A D D I T I O N A L P A R R A L E L E N G I N E S . EASY B232 button external OPEN C (NO)
- Page 8 ( it May be necessary to engage CLOSING Direction and then OPENING). 5. Programming of EASY B232 control unit EASY B232 control unit is programmed to needs of the given installation using the LEARN button with the LEARN diode, DIP-SWITCH microswitches with the division into two sections FUNCTION and MODE and three rotational potentiometers.
- Page 9 - set the leaf delay time and/or auto closing time - make adjustment of the strength of the towing power of servomotors with potentiometers FORCE 1 i 2 - conduct the learning (in the simplified mode, p. 5.5 or in OUTC extended mode p.
- Page 10 Decreasing the operational power of the servomotor has positive influence on safety conditions, as well as to the vitality of mechanical fittings. 5.4. Przełącznik DIP-SWITCH sekcja MODE - tryb (logika) pracy sterownika EASY B232 DIP-SWITCH MODE section - EASY B232 control unit operation mode (logic) Below there are operation modes of EASY control unit.
- Page 11 5.4.2. 2/S mode This mode, similarly to 1/A, is automatic mode, it has function of auto closing the gate after max. 120 seconds. Function of the wicket and photo closing active OUTC Tab. 2. 2/S mode 2/S mode closed opens closing stopped open...
- Page 12 5.4.4. 4/EP mode Semi automatic mode – step by step. OPEN A and OPEN B control respectively: open-stop-close, in the event when the gate is opened: close-stop-open. Function of the wicket active, function of auto and photo closing disabled. OUTC Tab.
- Page 13 5.4.6. 6/C mode Mode which requires the constant presence of the operator. The gate movement lass as long as the button is pressed. Radio frequency disabled in this mode. OUTC Tab. 6. 6/C mode 6/C mode closed opens closing stopped open closed opens...
- Page 14 5.4.8. 8/P mode Semi automatic mode – step by step. OPEN A and OPEN B control respectively: open-stop-close, when the gate is open: close-stop-open. Wicket and autoclosing functions active, photo closing disabled. OUTC Tab. 8. 8/P mode 8/P mode closed opens closing stopped...
- Page 15 programmed remote control), if necessary disarrange servomotor and close the gate manually, next arrange again. - make sure that there is no obstacle in the way of photocells barriers, and on the way of the move of the gate, - press and hold LEARN button up to the moment when LEARN diode goes on (after about 3 seconds) - press LEARN button shortly again (for learning you can use instead of LEARN button any OPEN A, OPEN B, OPEN C button or remote control button programmed on the radio card) begins slowed movement of the first leaf towards opening.
- Page 16 CAUTION! EasyRX radio card is intended exclusively for the cooperation with EASY B231- DTM6 control unit produced by DTM System. It should not be used autonomously. 6.1. General information This receiver expands functional possibilities of EASY control unit to remote steering with DTM 433MHz series remote controls.
- Page 17 6.6. Blocking of remote subscribing of remote control It is a function which prevents all remote controls, both already subscribed as well as the one subscribed in the future, from participating in the process of remote subscribing of new remote control. In order to protect the device against unauthorized attempts to subscribe additional remote control (particularly essential in areas with protected access of users), it is recommended to block the function of remote subscribing of remote controls.
-
Page 18: Acceptance Tests
6.7. Deleting of the remote control from memory Deleting single remote control from the receiver memory is as follows: - press and hold A and B buttons, - press the button of remote control which is to be deleted. CAUTION! Holding the buttons on the card for too long (more than 10 seconds) may lead to format of the memory and as a result to the removal of ALL remote controls. - Page 19 7.1. General remarks After installing control unit and all cooperating devices, especially safety devices, final trials should be performed to check the entire automation. These trials should be executed by the competent staff, being aware of existing dangers! Final trials are the most important phase at the realization of automation. Individual components, as the engine, photocells, and the like, can require the peculiar control and because of this, executing checking procedures, included in the manual of given components are recommended.
-
Page 20: Warranty
8. Warranty. DTM System provides operational and ready to use devices. The producer gives 24 months warranty from the selling date to the end customer. This time is counted according to the producer warranty labels or serial numbers placed on every product. Producer obliges himself to repair the device for free if during the warranty period there are problems which come because of his fault. - Page 21 DTM System hereby declares that the gate controller complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at the Internet address: www.dtm.pl The intention of the WEEE Directive (Directive 2002/96/EC on waste electrical and electronic equipment) is to reduce the amount of hazardous substances in waste.
- Page 24 DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa ul. Brzeska 7, 85-145 Bydgoszcz, Polska http://www.dtm.pl...
