PREMIER COLLECTIONS
Step 1:
Unroll the kite.
Step 2:
Identify and organize struts, tassels, and tail.

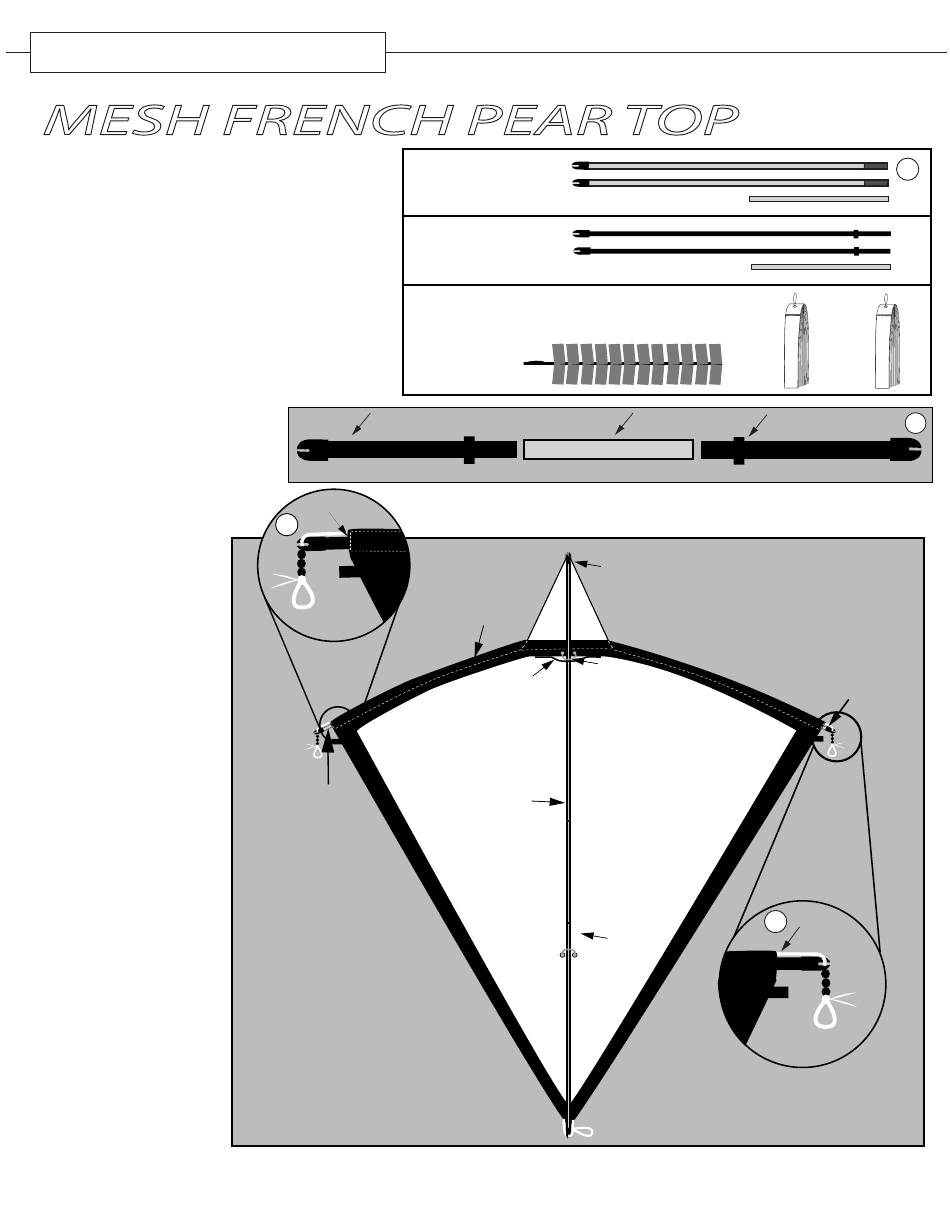

(Diagram A.)
Step 3:
Assemble the leading
edge spar. Insert the
nocked struts into the
blank strut. (Diagram B)
Step 4:
Slide the leading edge
spar into the small
opening on one side of
the kite, all the way
through to the other side
of the kite.(Diagram C)
Step 5:
Pull the tensioning line
through the nocked strut
on both sides of the kite to
create a bow. (Diagram D)
Spine
Leading Edge Spar
Tail and Tassels
Nocked Strut
Insert strut here.
C
Upper Spreader
Tail
Blank Strut
Nock
Sleeve
Bridle
Spine
Loop
Guide
Spine
Bridle
Loop
assembly instructions
A
Tassels
B
Nocked Strut
Tension line
D
Tension line
