  • Page 1 WPL-3000 Operating Manual 48726...
  • Page 2 You can help improve this manual by calling attention to errors and by recommending improvements. Please convey your comments to the nearest Ishida Company regional representative. Thank you! Copyright © 1997 by Ishida Co., Ltd. All Rights Reserved. No part of this manual may be reproduced in any form, by mimeograph or any other means, without written permission of the publisher.
  • Page 3 SAFETY CONSIDERATIONS To ensure safe operation, the general safety considerations below must be followed. Grounding This instrument is a Class 1 device which requires protective grounding for safe operation. To avoid potential shock hazards, a protective grounding conductor for the instrument must be securely connected to the main grounding provision by qualified service personnel.
  • Page 4 CAUTIONS FOR USE Always operate the scale on Do not disassemble the scale. a level surface. Do not expose the scale to direct Do not allow any liquids to come into Do not expose the scale to direct sunlight for long periods. contact with the scale or terminal.
  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Chapter 3 Overview Subtraction Appearance......... 2 Subtraction Mode ......22 Display ..........2 Operation Keys ........3 1.3.1 Operation Key Sheet ........... 3 1.3.2 Basic Function Keys ..........4 1.3.3 Additional Function Keys ........5 Loading Label/Receipt Roll ....
  • Page 6: Overview

    CHAPTER OVERVIEW Contents Appearance ........2 Display ..........2 Operation Keys ......... 3 1.3.1 Operation Key Sheet ........3 1.3.2 Basic Function Keys .......... 4 1.3.3 Additional Function Keys ......... 5 Loading Label/Receipt Roll ..... 7...
  • Page 7: Appearance

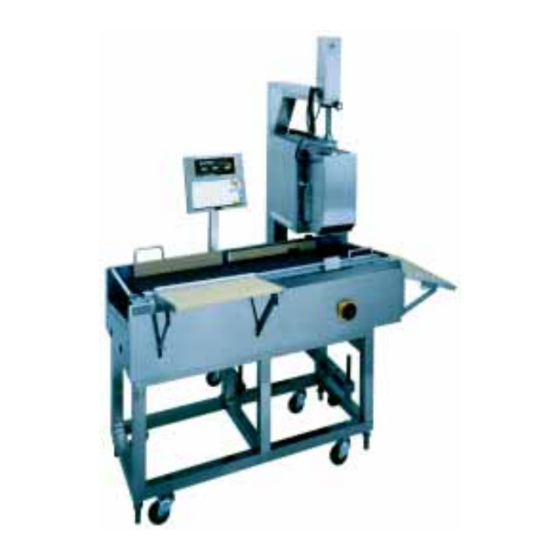

    Appearance Printer Unit Display Conveyor Check Weighing Unit Key Sheet Display WEIGHT  lb UNIT PRICE  $ TOTAL PRICE  $ ZERO SAVE AUTO Scale capacity 30  X  0.01 lb WPL - 3OOO Conveyor capacity 10  X  0.01 lb WPL-3000 • User’s Manual (Operator) • Rev 0 page 7...
  • Page 8: Operation Keys

    Operation Keys 1.3.1 Operation Key Sheet PACK ZERO HELP COUNT RESET VOID MODE LABEL LOWER BATCH PRESET PAPER DATE MULTIPLY PACK FEED PRINT TARE Preset Keys Additional Function Keys Four of the following options can Keys 1 to 4 are dealer options. be preset by the dealer in Default preset functions: accordance with the customer‘s...
  • Page 9: Basic Function Keys

    1.3.2 Basic Function Keys NUMERIC ENTRY PREPACK Keys 0 through 9 are used to enter Used to switch between auto printing PACK numeric data. mode and the manual printing mode. PRINT PRINT Used to print labels/receipts. CLEAR PROGRAM MODE Used to cancel incorrectly entered Used to access the program subtraction, MODE numeric data.
  • Page 10: Additional Function Keys

    1.3.3 Additional Function Keys DATE/TIME DISCOUNT DATE Used to display the current date and time Used to enter a special selling price. DISCOUNT TIME for a few seconds. STORE NAME AMOUNT DISCOUNT STORE –$ Used to access the store name corres- Used to subtract the entered amount from NAME ponding to the entered number after the...
  • Page 11 Used to toggle between add and no add function. When key is pressed, the activate mode will be displayed. START START Used to start conveyor manually. When PLU is not active, the product will pass through without being weighed. STOP STOP Used for conveyor emergency stop.
  • Page 12: Loading Label/Receipt Roll

    Loading Label/Receipt Roll Make sure that the power is off. Open the side cover of the printer unit. Pull the release lever to raise the printer head. Insert a new roll onto the label holding shaft. When using the label roll, remove labels from the first 30 cm (12 inches) of backing paper.
  • Page 13: Daily Operation

    CHAPTER DAILY OPERATION Contents Pre-operation Inspection ....10 Power On ......... 11 Prepack for Weighed Item .... 12 Prepack for Fixed-price Item ..13 Sales of Weighed Item ....14 Sales of Fixed-price Item ....15 Label Batch Print ......16 Pack Count Sub-total .....
  • Page 14: Pre-Operation Inspection

    Pre-operation Inspection In order to maintain optimum scale performance, perform the following inspection before starting daily operations. Always turn off the power switch when performing this inspection. CAUTION Make sure that the power is off. Check that the scale is clean and free of foreign matter. If not, wipe any soiled areas with a dry cloth.
  • Page 15: Power On

    Power On Turn on the power. The machine will perform display check before entering normal mode and starting weighing function. Make sure that nothing is on the weigh platter. Check that the ZERO and AUTO indicators are lit. KEY IN ITEM No. TOTAL MODE PRESS [ ] KEY ZERO...
  • Page 16: Prepack For Weighed Item

    Prepack for Weighed Item Check that nothing is on the weigh TOTAL MODE PRESS [ ] KEY KEY IN ITEM No. platter. • Check that the ZERO and AUTO indicators are lit. AUTO ZERO • If the AUTO indicator is not lit, press the PREPACK key.
  • Page 17: Prepack For Fixed-Price Item

    Prepack for Fixed-price Item Check that nothing is on the weigh platter. KEY IN ITEM No. TOTAL MODE PRESS [ ] KEY • Check that the ZERO and AUTO indicators are lit. • If the AUTO indicator is not lit, press the ZERO AUTO PREPACK key.
  • Page 18: Sales Of Weighed Item

    Sales of Weighed Item Press the PREPACK key. • Check that nothing is on the weigh platter. • Check that the ZERO indicator is lit. PACK Note: If the ZERO indicator is not lit, press KEY IN ITEM No. TOTAL MODE PRESS [ ] KEY the ZERO key.
  • Page 19: Sales Of Fixed-Price Item

    Sales of Fixed-price Item Press the PREPACK key. • Check that nothing is on the weigh platter. PACK • Check that the ZERO indicator is lit. TOTAL MODE PRESS [ ] KEY KEY IN ITEM No. Note: If the ZERO indicator is not lit, press the ZERO key.
  • Page 20: Label Batch Print

    Label Batch Print This function presets the number of fixed-price labels (for up to 20 items) to be printed. This function is only available for fixed-price items when in the AUTO mode. Enter the label batch print mode. LABEL BATCH •...
  • Page 21: Pack Count Sub-Total

    Pack Count Sub-total This function is used to print labels for packing, including the total quantity, total weight and total sales amount which have been issued since the last time the PACK COUNT key was pressed. Enter the pack count sub-total mode. PACK COUNT •...
  • Page 22: Mark Down Functions

    Mark Down Functions The following mark down options are available. Only one of these three options can be programmed for use. (1) Amount discount (2) Percentage discount (3) Special price 2.9.1 Amount Discount Enter the discount amount. Example: Discount Amount = $0.50 Note: Discount amount must be less than –$ displayed total price.
  • Page 23: Unit Price Override

    2.10 Unit Price Override This feature only functions for the weighed PLUs which are programmed to allow unit price override. Enter the desired unit price. Example: $3.50 Note 1: If the entered unit price is not accepted at this point, possibly the PLU has not been programmed to allow price override.
  • Page 24: Target Control

    2.14 Target Control A target quantity, sales amount, or weight can be preset by using the TARGET QUANTITY, TARGET PRICE, or TARGET WEIGHT key. When the target is reached or exceeded, the scale will inform the operator that the target has been reached and operations will be suspended until a new target is set. If more than one target is set, the first target to be reached will have priority over the other targets.
  • Page 25: Subtraction

    CHAPTER SUBTRACTION Contents Subtraction Mode ......22...
  • Page 26: Subtraction Mode

    Subtraction Mode The subtraction mode is used to correct the running totals. The totals require correction if accurate reports are to be generated. The following are two examples of when the subtraction mode is used. a. product returned by customers b.
  • Page 27 Step Description Keys and Display Amount of Item • Enter the amount of the item (label) to be TOTAL MODE PRESS [ ] KEY 000002 ENTER PRICE 0.00) subtracted, followed by the VOID key. Example: $3.75 VOID Note: If a mistaken entry was made, use the VOID key to return to the screen with the mistake.
  • Page 28: Troubleshooting

    CHAPTER TROUBLESHOOTING Contents Error Messages ........ 26 How to Release Error Conditions ... 27 How to Replace Fuse ..... 27 Other Problems ....... 27 page 28 WPL-3000 • User’s Manual (Operator)• Rev 0...
  • Page 29: Error Messages

    Error Messages When errors occur, use the error table below to ascertain the cause of the error and to recover normal operations. WEIGHT  lb UNIT PRICE  $ TOTAL PRICE  $ ZERO SAVE AUTO Scale capacity 30  X  0.01 lb WPL - 3OOO Conveyor capacity 10  X  0.01 lb Error Error Contents Error Message...
  • Page 30: How To Release Error Conditions

    How to Release Error Conditions • If an error occurs for any reason, use the CLEAR key to release the error condition. • If trouble occurs during operations and you are unable to return to normal operation, use the RESET key to re-initialize the scale.
  • Page 31 44 SANNO-CHO SHOGOIN SAKYO-KU KYOTO, 606 JAPAN PHONE: (075) 771-4141 FACSIMILE: (075) 751-1634 TELEX: 05422065 SCALES J CABLE ADD: “SCALES”KYOTO IW512P1003...
