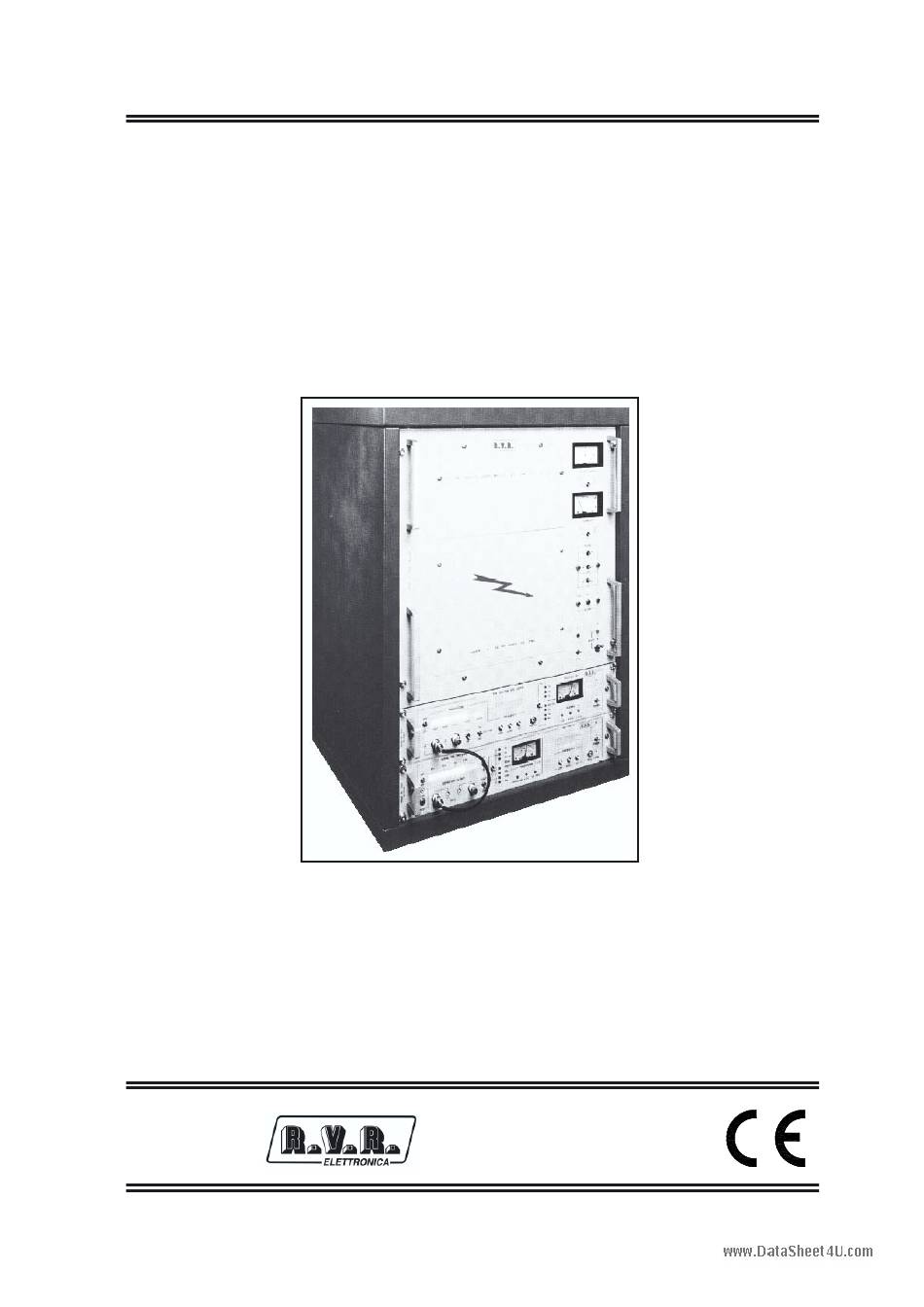

  • Page 1 VJ1000 www.DataSheet4U.com User Manual Prodotto da Italia...
  • Page 2 VJ1000 - USER MANUAL Versione 3.0 © Copyright 1993-2001 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telefono: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it Web: www.rvr.it All rights reserved Printed and bound in Italy. No part of this manual may be reproduced,...

  • Page 3: Table Of Contents

    VJ1000 Table of Content 1. Istruzioni preliminari 2. Garanzia 3. Primo soccorso 3.1 Trattamento degli shock elettrici 3.1.1 Se la vittima ha perso conoscenza 3.1.2 Se la vittima è cosciente 3.2 Trattamento delle ustioni elettriche www.DataSheet4U.com 3.2.1 Vaste ustioni e tagli alla pelle 3.2.2 Ustioni Meno gravi...
  • Page 4 VJ1000 9.1 Telemetry Connector 10. Telemetry Card Option 10.1 Calibration of the Voltages on the Telemetry connector 10.2 Wiring Connections details 10.3 General Verifications Appendix www.DataSheet4U.com Rev. 3.0 - 26/02/01 USER MANUAL...

  • Page 5: Istruzioni Preliminari

    VJ1000 1. Preliminary instructions This manual is written as a general guide for those having previous knowledge and experience with this kind of equipment. It is not intended to contain a complete statement of all safety rules which should be observed by personnel in using this or other electronic equipment.

  • Page 6: Garanzia

    VJ1000 2. Warranty Any product of R.V.R. Elettronica is covered by a 12 (twelve) month warranty. For components like tubes for power amplifiers, the original manufacturer’s warranty applies. R.V.R. extends to the original end-user purchaser all original manufacturers warranties which are transferable and all claims are to be made directly to R.V.R.
  • Page 7 VJ1000 DO NOT RETURN UNITS WITHOUT OUR AUTHORIZATION AS THEY WILL BE REFUSED. a Be sure to enclose a written technical report where mention all the problems found and a copy of your original invoice establishing the starting date of the warranty.

  • Page 8: Primo Soccorso

    VJ1000 3. First Aid The personnel employed in the installation, use and maintenance of the device, shall be familiar with theory and practice of first aid. 3.1 Treatment of electrical shocks 3.1.1 If victim is not responsive follow the A-B-C's of basic life support www.DataSheet4U.com...

  • Page 9: Se La Vittima È Cosciente

    VJ1000 3.1.2 If victim is responsive • Keep them warm Keep them as quiet as possible • Loosen their clothing (a reclining position is recommended) • • Call for medical help as soon as possible 3.2 Treatment of electrical Burns www.DataSheet4U.com...

  • Page 10: General Description

    4. General Description 4.1 Mechanical Description The VJ1000 is housed in a 19" rack-mountable frame, 14U high, of which 4U are free and may be used for an exciter, a receiver or other equipment. All controls and switches are situated on the front panel together with two analog meters.

  • Page 11: Protection System

    15 Fig.1); an on-off switch and corresponding indicator (14 and 16 Fig.1). 4.4 Protection System The VJ1000 features protection against: excess VSWR, excess grid current, opening of panels with the unit active, and insufficient ventilation. Under abnormal conditions the unit will be automatically disactivated; after 90 seconds the www.DataSheet4U.com...
  • Page 12 VJ1000 TABLE A ELECTRICAL SPECIFICATIONS Power Supply Single Phase: 220-240 V, 50-60 Hz Frequency Range 87,5 - 108 MHz (others on request) www.DataSheet4U.com Output Power 850 - 1000 W RF Output Impedance 50 Ohm Output Connector "LC” connector, 7/8" o 7/16"...
  • Page 13 VJ1000 TABLE B DIMENSIONAL AND ENVIRONMENTAL SPECIFICATIONS Rack Dimensions 540mm(21,26")W 540mm(21,26)D 698,3mm(27,49")H www.DataSheet4U.com Panel Dimensions 483mm(19)W 443mm(17,44")H Weight 60 Kg Operating Temperature Range da -10 a +45°C Maximum Humidity max 90%, senza condensa USER MANUAL Rev. 3.0 - 26/02/01 9 / 40...

  • Page 14: Electrical Description

    VJ1000 5. Electrical Description 5.1 Introduction This section describes in detail, the operation of the VJ1000. For ease of description, the unit has been divided into sections, each of which is described in detail, below. 5.2 Power Supply www.DataSheet4U.com The power supply, accessible via the rear panel, has been designed to be both rugged and at the same time simple to maintain, allowing easy access to every component thus easing repair work.
  • Page 15 VJ1000 TABLE C CARATTERISTICHE TECNICHE DELLA VALVOLA Model 3CX800A7 Anode Dissipation 800 W approx www.DataSheet4U.com Grid Dissipation 4 W approx Max Frequency 350 MHz Cooling System Forced Ventilation Filament Voltage 13.5 V Filament Current 1.5 A Capacitance with Grounded Grid...
  • Page 16 VJ1000 Maximum Anode and Seal 250°C Core Temperature Maximum Lenght 64,01 mm (2,52 inch) Maximum Diameter 64,26 mm (2,53 inch) www.DataSheet4U.com Weight 0,326 Kg (11,5oz) Operational Position 12 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 17 VJ1000 FRONT PANEL’S VIEW DESCRIPTION (FIG. 1) OUTPUT POWER Analog meter for the measurement of direct and reflected output power DIR/REF Switch for the selection of direct or reflected power measurment www.DataSheet4U.com CURRENTS Analog meter for the measurement of anode...
  • Page 18 VJ1000 www.DataSheet4U.com FIG. 1 14 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 19 VJ1000 POWER SUPPLY’S VIEW DESCRIPTION (FIG. 2) ....Auxiliary and filament transformer ....Anode supply filter capacitator ....High voltage rectifier board ....Anode supply transformer www.DataSheet4U.com ....High voltage resistor ....High voltage resistor ....Anode delay timer ....Solenoid switch ....
  • Page 20 VJ1000 www.DataSheet4U.com FIG. 2 16 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 21 VJ1000 R.F. CAVITY’S VIEW DESCRIPTION (PHOTO 1) ....Cooling air outlet ....Plate tuning control motor ....Output connector (to antenna) ....End of tuning range switch (87,5MHz) www.DataSheet4U.com ....Directional coupler for output power measurement ....Line ....Tube ....
  • Page 22 VJ1000 www.DataSheet4U.com PHOTO 1 18 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 23 VJ1000 R.F. BLOCK’S VIE DESCRIPTION (PHOTO 2) ....Plate tuning control motor ....Cooling air outlet ....Air flow switch www.DataSheet4U.com ....Input connector (to exciter) ....Air blower ....Alarms card USER MANUAL Rev. 3.0 - 26/02/01 19 / 40...
  • Page 24 VJ1000 www.DataSheet4U.com PHOTO 2 20 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 25 VJ1000 R.F. BLOCK’S VIEW 2 DESCRIPTION (PHOTO 3) ....End of tuning range switch (87.5 Mhz) ....Input Matching Board ....Load tuning control motor ....End of tuning control motor (108 Mhz) www.DataSheet4U.com ....Multipolar circolar connector ....Grid/Plate meter board USER MANUAL Rev.
  • Page 26 VJ1000 PHOTO 3 22 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 27 VJ1000 TABLE D TYPICAL VALUES OF THE OPERATING PARAMETERS Power Voltage Nominal Tension ± 5% MAX COS-FI better than 0,9 www.DataSheet4U.com Output Power 1 KW approx Input Power 18-20 W Anode Current 0,45 A Grid Current < or = 20 mA...

  • Page 28: Installation Procedure

    VJ1000 6. Installation Procedure Introduction This chapter contains information necessary for the installation and initial testing of the VJ1000 amplifier. Is necessary, to not damage the amplfier, to execute the procedure below in the right www.DataSheet4U.com sequency. 6.2 Unpacking Remove the unit from its packing and, before any other operation, ensure that the unit has not suffered any damage in transit and that all its front panel controls are useable.
  • Page 29 VJ1000 After having connected the 220 V driver supply and an RF output connector to the driver, switch the VJ1000’s POWER switch to OFF and the ST.BY. switch to ON. Adjust the exciter power output control to minimum power. Connect the line supply (220V ±5%) to the unit.

  • Page 30: Fault Finding During The Setup Procedure

    VJ1000 6.5 Fault Finding during the Setup Procedure The following fault conditions may occur during the setup procedure: THE RED LIGHT "PRESS." STAYS ON Check that the rear air filter is not blocked and that there is at least 40/50 cm clearance between the rear of the unit and any obstructions such as a wall.
  • Page 31 VJ1000 TABLE E RECOMMENDED TEST EQUIPMENT INSTRUMENT TYPE SUGGESTED MODEL TECH. SPECIFICATIONS Non Inductive Bird 50 Ohm P >1KW Dummy Load www.DataSheet4U.com Non Inductive Bird 50 Ohm P >1KW Dummy Load Calibrated in-line Bird MOD. 43 50 Ohm Wattmeter with...

  • Page 32: Maintenance Procedure

    VJ1000 7. Maintenance Procedure 7.1 Safety Procedures WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING When the amplifier is operational with the rear panel removed, lethal voltages are easily accessible. Use properly insulated tools for any calibration work and do not make contact with any internal www.DataSheet4U.com...

  • Page 33: Replacement Of The Tube

    VJ1000 7.4 Replacement of the Tube Ensure that the unit is isolated from its supply and, to avoidsevere burns, that the tube that has to be replaced is no longer hot. Ensure also that all terminals are at 0V, and if not use a shorting stick to remove any residual charge.

  • Page 34: Calibration Procedure

    VJ1000 8. Calibration Procedure N.B. THE FOLLOWING PROCEDURE SHOULD ONLY BE CARRIED OUT BY QUALIFIED PERSONNEL USING THE CORRECT TOOLS AND EQUIPMENT. UNQUALIFIED OR INEXPERIENCED PERSONNEL NOT USING THE CORRECT TOOLS AND EQUIPMENT CAN EASILY CAUSE DAMAGE TO THE UNIT WHICH WILL IMMEDIATELY INVALIDATE THE GUARANTEE.

  • Page 35: Calibration Of The Protection Card

    VJ1000 REPEAT STEPS 7 AND 8 SEVERAL TIMES TO OBTAIN THE OPTIMUM SETTINGS Increase exciter power until an output power of 800/850 W is obtained and repeat steps 7 and 8. 10) With output power at 1000 W, make small adjustments, as above, to minimize grid and anode currents;...

  • Page 36: Calibration Of The Pwr Meter (Ref)

    Perform the calibration procedure for the V.S.W.R. protection upto step b) (paragraph 5.2 (2)). At this point verify that the VJ1000 meter reading is correct; adjustment may be made with trimer R6 situated in the directional coupler on the output of the low-pass filter, near the antenna connector.

  • Page 37: Calibration Of Anode Measurement (Ia)

    The polarity should be such as to produce a clockwise deflection. www.DataSheet4U.com Increase the power supply voltage and check for a proportional increase in the grid current (as measured by the VJ1000 meter) and in the current supplied by the power supply. Adjust trimmer R2 for a correct reading.
  • Page 38 VJ1000 www.DataSheet4U.com SETUP 1 / FIG. 3 34 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 39 VJ1000 www.DataSheet4U.com SETUP 2 / FIG. 4 USER MANUAL Rev. 3.0 - 26/02/01 35 / 40...
  • Page 40 VJ1000 www.DataSheet4U.com SETUP 3 / FIG. 5 36 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...

  • Page 41: Connectors Description

    VJ1000 9. Connectors Description 9.1 Telemetry Connector Type: DB25 Female Anodic Voltage Output 3V X 4000V (ONLY VJ2000) Anodic Current Measurement Output 5V X 1A www.DataSheet4U.com Reflected Power Measurement Output 1.4V X 100W Not Used Not Used Not Used Input Command ON (High Volteage)

  • Page 42: Telemetry Card Option

    VJ1000 10. Telemetry Card Option 10.1 Calibration of the Voltages on the Telemetry connector The VJ’s internal Telemetry connector gives to the external the voltages referred to the various values under control. The voltage related to the Forward Power output is 1,6V for 1KW. To calibrate this voltage follow the procedure below: Adjust the power of the machine to the nominal value of 1KW.

  • Page 43: General Verifications

    When Standby mode and operating the ralated switch, the exciter shall go in RF Mute mode. VJ1000/2000 shall switch to Standby mode if the exciter put in the OFF status. www.DataSheet4U.com If the VJ has completed a reset cicle for 6 times and it’s thus blocked, a series of ON-OFF-ON of the exciter shall reset the alarms.

  • Page 44: Appendix

    VJ1000 www.DataSheet4U.com This page intentionally left blank 40 / 40 Rev. 3.0 - 26/02/01 USER MANUAL...
  • Page 45 / Component layouts, schematics, bills of material Questa parte del manuale contiene i dettagli tecnici riguardanti la costruzione delle singole schede componenti il VJ1000. L’appendice è composta dalle seguenti sezioni: www.DataSheet4U.com This part of the manual contains the technical details about the different boards of the VJ1000.
  • Page 46 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page intentionally left blank 2 / 2 3.1 - 20/05/02 User Manual Technical Appendix...
  • Page 47 VJ1000 www.DataSheet4U.com Rev. 1.0 - 26/02/01 Appendice Tecnica Flat Cable - 1 / 2...
  • Page 48 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 2 / 2 - Flat Cable Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 49 VJ1000 www.DataSheet4U.com Appendice Tecnica Rev. 1.1 - 26/02/01 Telemetry Cable - 1 / 2...
  • Page 50 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 2 / 2 - Telemetry Cable Rev. 1.1 - 26/02/01 Technical Appendix...
  • Page 51 VJ1000 www.DataSheet4U.com Appendice Tecnica Rev. 1.0 - 26/02/01 Power Supply - 1 / 4...
  • Page 52 VJ1000 www.DataSheet4U.com 2 / 4 - Power Supply Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 53 VJ1000 Power Supply Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ 15/50W RESISTOR RAF050JH0015 100/100W RESISTOR 100W RAF100JH0100 8µF 4KV HIGH VOLTAGE CAPACITOR COL4000V0008 F1,F2 F16A FAST FUSIBLE 16A FUS10.3X3825 CON. CIR. CON. CIR. 28P BULGIN F.
  • Page 54 VJ1000 H.T. RECTIFIER BOARD www.DataSheet4U.com TRF1 TIM1 MORS1 TEL1 PHOTO 4 / FOTO 4 4 / 4 - Power Supply Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 55 VJ1000 www.DataSheet4U.com Appendice Tecnica Rev. 1.0 - 26/02/01 H.T. Rectifier Board - 1 / 4...
  • Page 56 VJ1000 www.DataSheet4U.com 2 / 4 - H.T. Rectifier Board Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 57 VJ1000 H.T. Rectifier Board Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ 33/10W RESISTOR RAF010KH0033 220/10W RESISTOR RAF010KH0220 R1,R2,R3, 100K# RESISTOR RSC002JH0100 R4,R5,R6, R7,R8,R9, R10,R11,R12, R13,R14,R15, R16,R17,R18, R19,R20,R21, www.DataSheet4U.com R22,R23,R24, R25,R26,R27, R28,R29,R30, R31,R32,R33,...
  • Page 58 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - H.T. Rectifier Board Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 59 VJ1000 www.DataSheet4U.com Appendice Tecnica Rev. 1.0 - 26/02/01 R.F. Block - 1 / 4...
  • Page 60 VJ1000 R.F. Block Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ RESISTOR RSC002JH0039 470/10W RESISTOR RAF010KH0470 R4,R5 RESISTOR 1/4W 5% RSC1/4JK01,2 T4K7 TRIM. REG. VERT. 10mm RVTD10VK04,7 225pFRVR CERAMIC CAP. RVR CKM225BRVR C5,C6,C7...
  • Page 61 VJ1000 MOTOR1 DC MOT BUHLER MOTRCVJ2000 1.61.013.325-W MOTOR2 DC MOT BUHLER MOTRPVJ2000 1.61.013.330-0 2N3055 TRANSISTOR TRN2N3055 FAN1 BLOWER EBM1 VEN.EBM G2E140-AC05-01VTLEBM 3CX800 3CX800 EIMAC TRIODO VAL3CX800 www.DataSheet4U.com Appendice Tecnica Rev. 1.0 - 26/02/01 R.F. Block - 3 / 4...
  • Page 62 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - R.F. Block Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 63 VJ1000 www.DataSheet4U.com Taratura della Pressione della Turbina // Calibration of the Fan Pressure Alarm Threshold p.31 Taratura del R.O.S. // Calibration of the V.S.W.R. p.31 Taratura dell’Intervento della Protezione della Corrente di Griglia // Calibration of the Grid Current Alarm Threshold p.32...
  • Page 64 VJ1000 www.DataSheet4U.com 2 / 4 - Alarms Card Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 65 VJ1000 Alarms Card Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ R8,R22 RESISTOR 1/4W 5% RSC1/4JH0010 RESISTOR 1/4W 5% RSC1/4JH0047 RESISTOR 1/4W 5% RSC1/4JH0100 680* RESISTOR 1/2W 5% RSC1/2JH0680 R5,R6 RESISTOR 1/4W 5%...
  • Page 66 VJ1000 D1,D2,D3, 1N4148 SILICON DIODE DIS1N4148 D4,D8,D9, D10,D11, D12,D13, D14,D15, D17,D18, D19,D21, D22,D23 1N4001 SILICON DIODE DIS1N4001 WL04 DIODE BRIDGE 1.5A PNRWL04 Z6V8 ZENER DIODE 6.8V 0.4W DIZ6V80W4 7815 POS. STABILIZER CIL7815P www.DataSheet4U.com Q2,Q3 BC237 TRANSISTOR TRNBC237 BD140 TRANSISTOR TRNBD140...
  • Page 67 VJ1000 www.DataSheet4U.com Calibrazione della Misura di Corrente Anodica // Calibration of the Anode Current Measurement p.33 Calibrazione della Misura Corrente di Griglia // Calibration of the Grid Current Measurement p.33 Appendice Tecnica Rev. 1.0 - 26/02/01 Grid/Plate Meter B. - 1 / 4...
  • Page 68 VJ1000 www.DataSheet4U.com 2 / 4 - Grid/Plate Meter B. Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 69 VJ1000 Ia-Ig Meter Card Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ 0.22$ RESISTOR RAF005JH0,22 2.2$ RESISTOR RAF005JH02,2 R1,R2 T4K7 TRIMMER REG. VERT. 10mm RVTD10VK04,7 C2,C3,C4,C510nF CERAMIC CAPACITOR CKM103BK600P 47nF CERAMIC CAPACITOR CKM473BK600P MET2 STA250µA...
  • Page 70 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - Grid/Plate Meter B. Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 71 VJ1000 www.DataSheet4U.com PHOTO 5 / FOTO 5 Appendice Tecnica Rev. 1.0 - 26/02/01 Low Pass Filter - 1 / 4...
  • Page 72 VJ1000 www.DataSheet4U.com 2 / 4 - Low Pass Filter Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 73 VJ1000 Low Pass Filter Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ C1,C5 27pFT COND. BAND RAME TEFLON CBRT270RVR C2,C3,C4 54pFT COND. BAND RAME TEFLON CBRT540RVR L1,L2,L3,L4L230RVR 2 SP DIA 30 BAND. RAME BBR5000230 www.DataSheet4U.com...
  • Page 74 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - Low Pass Filter Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 75 VJ1000 www.DataSheet4U.com Appendice Tecnica Rev. 1.0 - 26/02/01 Input Matching Circuit - 1 / 4...
  • Page 76 VJ1000 www.DataSheet4U.com 2 / 4 - Input Matching Circuit Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 77 VJ1000 Input Matching Circuit Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ T22pF TRIMMER CAPACITOR CVF220CK600 27pF CERAMIC CAPACITOR CKM270BJ600C 56pF CERAMIC CAPACITOR CKM560BJ600C L58RVR1.5 5 SP DIA 8 R. AR. 1.5mm BFS15000508 L38RVR1.5...
  • Page 78 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - Input Matching Circuit Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 79 VJ1000 www.DataSheet4U.com Calibrazione della Lettura della Potenza Riflessa // Calibration of the Measurement of the Reflected Power p.32 Calibrazione della Lettura della Potenza Diretta // Calibration of the Measurement of the Forward Power p.32 Directional Coupler - 1 / 4 Appendice Tecnica Rev.
  • Page 80 VJ1000 www.DataSheet4U.com 2 / 4 - Directional Coupler Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 81 VJ1000 Directional Coupler Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ R12,R13 RESISTOR 1/2W 5% RSC1/2JH0047 R1A,R1B, 100# RESISTOR RSC002JH0100 R2A,R2B RESISTOR 1/4W 5% RSC1/4JK08,2 R5,R8 RESISTOR 1/4W 5% RSC1/4JK0022 R6,R9 T22K TRIM. REG. VERT. 10mm...
  • Page 82 VJ1000 www.DataSheet4U.com Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - Directional Coupler Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 83 VJ1000 www.DataSheet4U.com Appendice Tecnica Rev. 1.0 - 26/02/01 Telemetry Card (opt.) - 1 / 4...
  • Page 84 VJ1000 www.DataSheet4U.com 2 / 4 - Telemetry Card (opt.) Rev. 1.0 - 26/02/01 Technical Appendix...
  • Page 85 VJ1000 Telemetry Card Bill of Materials/Lista Componenti Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ 0 OHM RESISTOR R000 R29,R30, RESISTOR 1/4W 5% RSC1/4JH0022 R31,R32 100# RESISTOR RSC002JH0100 270# RESISTOR 2W RSC002JH0270 RESISTOR 1/4W 5% RSC1/4JH0390 560*...
  • Page 86 VJ1000 D2,D3,D4, 1N4005 SILICON DIODE 600V DIS1N4005 D5,D6 Z5V1 ZENER DIODE 5.1V 0.4W DIZ5V10W4 Z9V1 ZENER DIODE 9.1V 0.4W DIZ9V10W4 BC237 TRANSISTOR TRNBC237 U1,U2,U3,U4 LM358N DOUBLE OP. AMP. CILLM358N 7812 POS. STABILIZER CIL7812P N.C. CONNECTED www.DataSheet4U.com 4 / 4 - Telemetry Card (opt.) Rev.
