- Page 1 PW-50 INSTALLATION AND OPERATION MANUAL English PLEASE READ BEFORE USING THE EQUIPMENT EN 1.3...

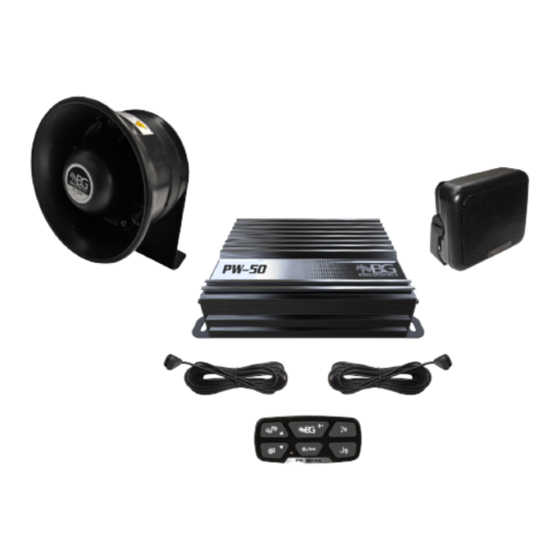

- Page 2 PW-50 PW-50 COMPONENTS AND RECOMMENDED LOCATIONS IN THE VEHICLE Microphone + shell assembly procedure 1. Insert the cable in the shell by pressing it with your finger. 2. Push the microphone into the shell (do not pull the cable!). (1) Electronic unit EXTERNAL MIC (1) Control keyboard &...
- Page 3 PW-50 OPERATING PROCEDURES All of the equipment’s functions are managed through a six button keyboard (see figure below). Operate the buttons with your fingertips; do not use objects to press them. Volume UP SIREN Manual WAIL INTER HORN Volume DOWN...
- Page 4 PW-50 PW-50 SETTING UP FUNCTIONS Setting the volume of the internal speaker, “internal volume” Setting up HORN tone 1. While INTER is on, press and hold 2. While INTER is held, press WAIL to 3. While INTER is held, press HORN to INTER.
- Page 5 PW-50 AUTOMATIC FEEDBACK CONTROL (AFC) If acoustic feedback would occur while PTT or INTER are on (caused, for instance, by the opening of a door or window), the equipment will detect and automatically fix the issue by decreasing the volume. After the event takes place, the equipment will attempt to rise the volume back to the level defined by the user, as long as AFC is not triggered again.
