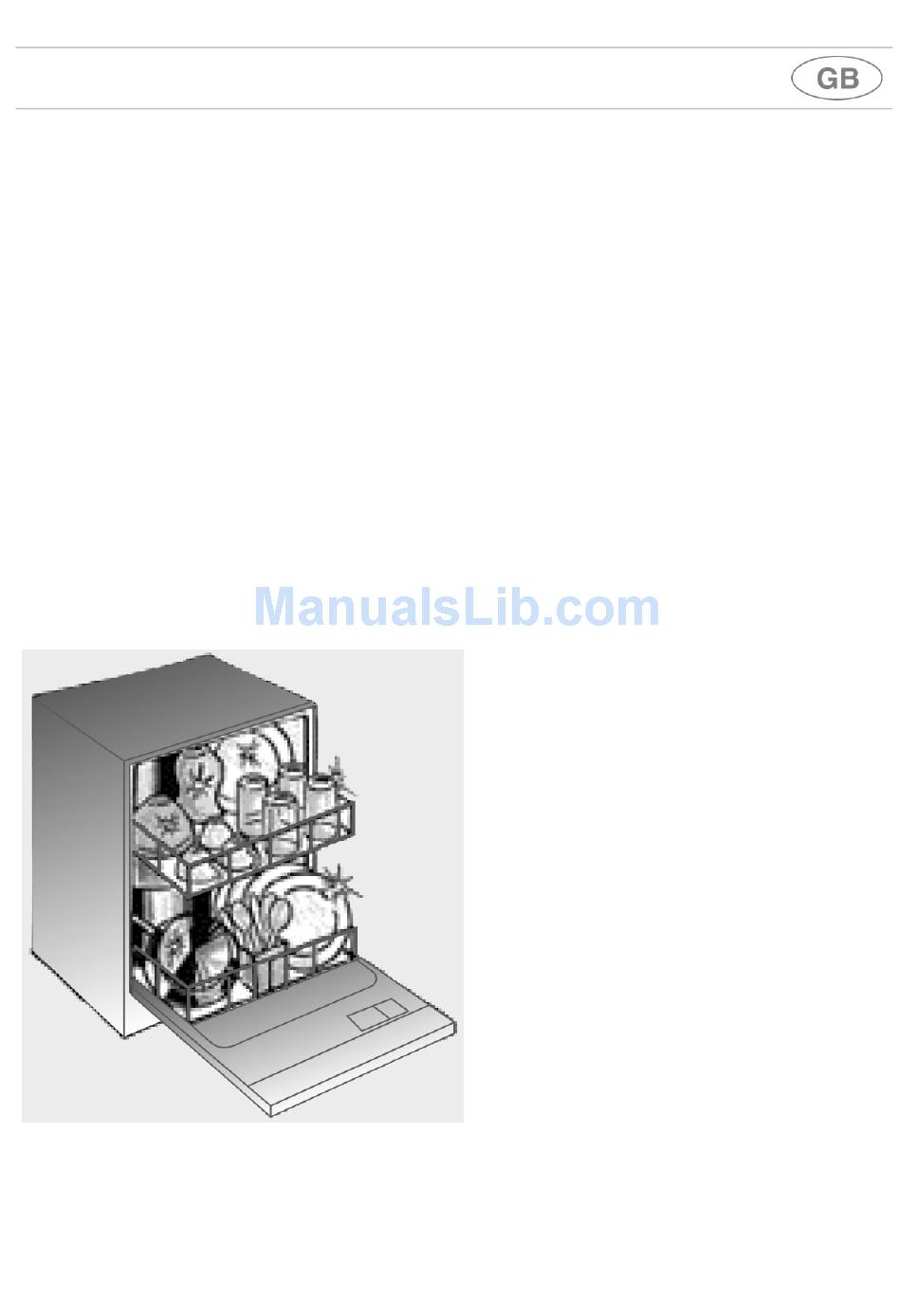

- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. -
Page 3: Safety And Operating Instructions
FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE COLLECTION CENTRE. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN. -
Page 4: Safety Instructions
PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. -
Page 5: Installation And Hook-Up
2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 6: Electrical Connection
Installation instructions DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. -
Page 7: Description Of The Controls
3. Description of the controls Front panel All the dishwasher controls are grouped on the front panel, which is of different shape depending on the model. WASHING PROGRAM SELECTOR SELECTED PROGRAM INDICATOR DISC (certain models only) ON/OFF KEY POWER ON LIGHT... -
Page 8: Table Of Programs (4 Program Models)
(2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes. The washing cycle will not take place if the dishwasher door is left open or not properly closed. User instructions... -
Page 9: Table For Certification Bodies
To cancel the program in progress the dishwasher must be switched off by pressing the ON/OFF key (3) (see section "3. Description of the controls"). Turn the program selector to SOAK and wait for the dishwasher to start. On completion of the program, switch off the dishwasher by pressing the ON/OFF key (3). - Page 10 • If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay before the program can be resumed. After correctly closing the door, the washing program will start again from where it was interrupted.
-
Page 11: Operating Instructions
• When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. Each time the salt container is refilled, make sure that the cap is securely closed. The •... - Page 12 User instructions ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply. According to the machine model, the selector which acts on the adjustment may be located: inside the plastic locking ring located on the right-hand side, inside the dishwasher;...
-
Page 13: Using The Rinse Aid And Detergent Dispensers
ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position. - Page 14 Do not use detergents formulated for washing dishes by hand, because they produce a great • deal of foam and may negatively affect the operation of the dishwasher. • Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.
-
Page 15: General Warnings And Recommendations
General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. -
Page 16: Using The Baskets
User instructions Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom. - Page 17 User instructions CUTLERY BASKET This varies in shape according to the model and features either a single compartment or separate compartments. The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 18 User instructions LOADING THE UPPER BASKET Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels.
-
Page 19: Cleaning And Maintenance
General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. - Page 20 • It is essential to thoroughly clean the filters according to the above instructions: the • dishwasher cannot function if the filters are clogged. Carefully replace the filters in their seats, to avoid damaging the wash pump. • PROLONGED DISUSE: •...
- Page 21 TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; • there is no power failure;...
- Page 22 TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics User instructions 597 ÷ 599 mm Free standing: 600 mm Semi-integrated: 590 mm Free standing from 850 mm to 870 mm Semi-integrated from 820 mm to 870 mm Standard place settings min.
- Page 23 Solosualcunimodelli Certainmodelsonly Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing...
- Page 24 SUPERFICIEINTERNA SURFACEINTERNE INNERSURFACE INNENFLACHE LATOSUPERIORE BORDSUPERIEURE UPPEREDGE OBERKANTE...
