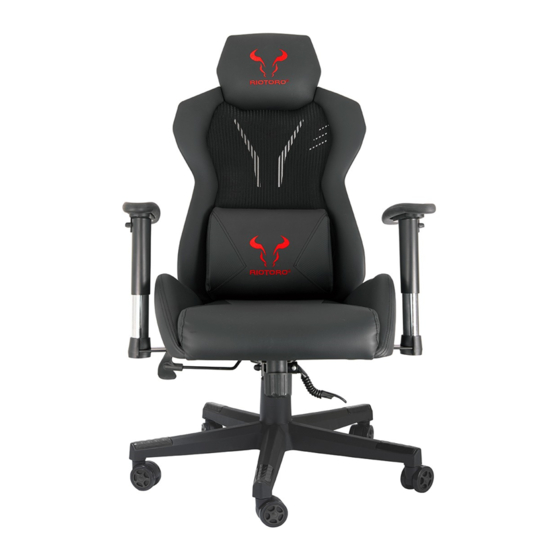

- Page 1 SPITFIRE M2 MESH GAMING CHAIR...
- Page 2 Welcome to RIOTORO Thank you for purchasing the SPITFIRE M2! The SPITFIRE M2 is a pro level gaming chair with futuristic style, exoskeleton back, great comfort and environment-friendly materials. Its high back mesh and integrated contoured back frame (with built-in contoured shape for neck and lumbar support) allows for cooler, comfortable and breathable sitting.
-
Page 3: Table Of Contents
SPITFIRE M2 MESH GAMING CHAIR CONTENTS Before You Begin - Exploded view - What is in the box - Precautions - Requirements Ready, Setup, Go - Specifications - Install the castors - Install the piston - Install the base - Install the armrest and backrest support... -
Page 4: Before You Begin
Before You Begin www.riotoro.com/chairs... -
Page 5: Exploded View
SPITFIRE M2 MESH GAMING CHAIR Exploded view 1. 1D Armrest 2. Castors 3. Seat 4. Wheel Base 5. Pillow 6. Piston 7. Piston Cover 8. Adjustable Base 9. Back Rest 10. Back Rest Structure 11. 1D Armrest Before You Begin... -
Page 6: What Is In The Box
SPITFIRE M2 MESH GAMING CHAIR WHAT’S IN THE BOX ITEM IMAGE DESCRIPTION Backrest Build your gaming chair Seat Build your gaming chair Pillow Back support Backrest structure Join backrest and seat Backrest trim Cover backrest and seat joints Adjustable base... - Page 7 SPITFIRE M2 MESH GAMING CHAIR WHAT’S IN THE BOX ITEM IMAGE DESCRIPTION Piston Support your weight and adjust chair height Piston cover Protect piston from dirt and provide aesthetics Wheel base Castor installation Performance castors Securing components Allen wrench / Phillips...
-
Page 8: Precautions
SPITFIRE M2 MESH GAMING CHAIR PRECAUTIONS Please take the following precautions: - Handle all components with care. - Remove all components for protective packaging and sort them out - To avoid damaging components do not use of sharp objects. - Before moving to the next step, make sure the components are securely fastened. -
Page 9: Requirements
2. A magnetic Phillips screw driver This means you need to have the Phillips screw driver available in order to complete this assembly. Note: Handle all components with care, should you need any assistance go to www.riotoro.com/support Before You Begin... -
Page 10: Ready, Setup, Go
Ready, Setup, Go www.riotoro.com/chairs... -
Page 11: Specifications
SPITFIRE M2 MESH GAMING CHAIR SPECIFICATIONS - Bluetooth: - RGB: - Powerbank: - Back Structure: ABS plastic and Mesh Fabric - Back Trim: Synthetic Leather - Back Waist: - Fabric: Synthetic Leather / Mesh Polyester - Armrest: 1D adjustable - Seat Materials:... -
Page 12: Install The Castors
SPITFIRE M2 MESH GAMING CHAIR INSTALL THE CASTORS Place each castor on the respective hole located in the wheel base. Position the wheel base with the holes looking Once all castors are placed securely in position upwards and insert each castor. You will hear turn over, place on the floor and from the center a clicking sound once it is in position. -
Page 13: Install The Piston
SPITFIRE M2 MESH GAMING CHAIR INSTALL THE PISTON Gather the piston and piston cover and install to the wheel base. Thread the piston through the wheel base. Once the piston is in place, simply put the piston cover on top of it. -
Page 14: Install The Base
SPITFIRE M2 MESH GAMING CHAIR INSTALL THE BASE Gather four M8x25.0mm screws, the Allen wrench and adjustable base to proceed with the installation. Screw order Screw order Align the adjustable base mounting holes and Secure the adjustable base to the seat by using the seat mounting holes. -
Page 15: Install The Armrest And Backrest Support
SPITFIRE M2 MESH GAMING CHAIR INSTALL THE ARMREST AND BACKREST SUPPORT Gather seven M8x25.0mm screws, the armrest, backrest structure and the Allen wrench to proceed with the installation. Secure the adjustable armrests on both sides Slide and secure the backrest bracket to the... -
Page 16: Install The Bottom And Back Assembly
SPITFIRE M2 MESH GAMING CHAIR INSTALL BOTTOM AND BACK ASSEMBLY Secure the previous assembled parts to each other in order to finalize the process. Screw order Screw order Place the seat assembly on top of the base assembly. Align the backrest holes with the backrest bracket holes and secure tightly with provided screws and tool. -
Page 17: Personalization
SPITFIRE M2 MESH GAMING CHAIR PERSONALIZATION As a final step place the support pillow and seat on the chair. pull Using the pillow is optional, its purpose is to provide Adjust the seat and backrest to the desired position. back support if needed. - Page 18 Everything Else...
-
Page 19: General Maintenance
SPITFIRE M2 MESH GAMING CHAIR GENERAL MAINTENANCE If you need to clean your gaming chair, follow these instructions: - Wipe it down with a clean cloth. - Remove any excess dust or debris by vacuuming or dusting it. For fabric or mesh areas you may use the regular or brush attachment on vacuum cleaner and gently rub it. -
Page 20: Limited Product Warranty ("Limited Warranty")
MESH GAMING CHAIR LIMITED PRODUCT WARRANTY ("Limited Warranty") Limited Warranty. RIOTORO warrants the Product to be free from defects in materials and workmanship when used normally in accordance with the official documentation for the applicable Warranty Period from the date of retail purchase. -
Page 21: Recommended Parts
SPITFIRE M2 MESH GAMING CHAIR RECOMMENDED PARTS C A S E S CR1288 Full Tower: Customizable RGB Color Enthusiast Case, designed to deliver unparalleled cooling performance, quiet operation, complete color customization and with an elegant but aggressive design. CR1088 Full ATX Case: Is featured as one of the smallest ATX Cases supporting the Full ATX standard. - Page 22 SPITFIRE M2 MESH GAMING CHAIR RECOMMENDED PARTS P O W E R S U P P L Y U N I T BUILDER EDITION 500W & 600W: The Builder Edition combines 80 PLUS White certified energy efficiency with flat cables for reduced energy consumption, quiet operation, and easy installation.
- Page 23 SPITFIRE M2 MESH GAMING CHAIR RECOMMENDED PARTS W A T E R C O O L I N G R G B F A N BIFROST 120ti & 240: is a new generation water cooling solution for both AMD and Intel platforms.
- Page 24 SPITFIRE M2 MESH GAMING CHAIR RECOMMENDED PARTS G A M I N G M I C E G A M I N G K E Y B O A R D AUROX: the Aurox Prism RGB gaming mouse combines an ergonomic exterior with an ultra-precise 10000 DPI optical sensor, 8 programmable buttons, aluminum scroll wheel, and customizable RGB lighting.
- Page 25 © 2020 RIOTORO Inc. All rights reserved. RIOTORO, the RIOTORO logo, and SPITFIRE M2 are trademarks of RIOTORO Inc., Registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.
