- Page 1 SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR...

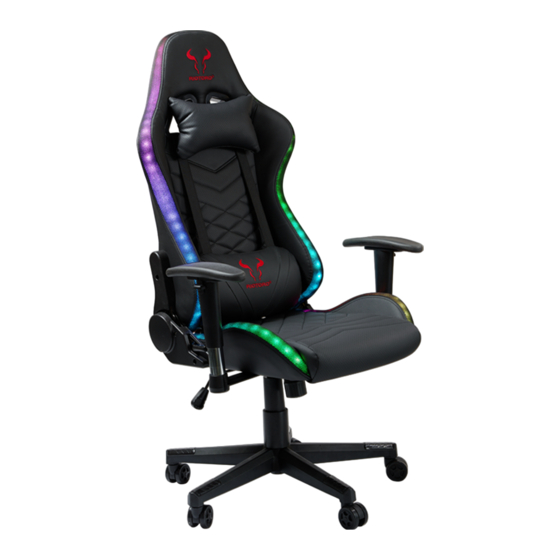

- Page 2 Welcome to RIOTORO Thank you for purchasing the SPITFIRE X1S PLUS! The SPITFIRE X1S PLUS pro-level gaming chairs are designed with exceptional ergonomics, easy setup and maximum comfort for extended gaming sessions or daily use. The SPITFIRE X1S PLUS is featured packed including multi-directional arm rests, height-adjustable mechanism, fully reclining backrest, removable lumbar and neck support cushions.
-
Page 3: Table Of Contents
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR CONTENTS Before You Begin - Exploded view - What is in the box - Precautions - Requirements Ready, Setup, Go - Specifications - Install the castors - Install the piston - Install the base... -
Page 4: Before You Begin
Before You Begin www.riotoro.com/chairs... -
Page 5: Exploded View
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR Exploded view 1. 3D Armrest 2. Performance Castors 3. Left Support Trim 4. Wheel Base 5. RGB backrest 6. Piston 7. Piston Cover 8. Adjustable Base 9. Seat 10. Lumbar Pillow 11. Neck Pillow 12. -
Page 6: What Is In The Box
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR WHAT’S IN THE BOX ITEM IMAGE DESCRIPTION RGB backrest with Build your gaming chair bluetooth speaker Seat Build your gaming chair Pillow Back support Backrest structure Join backrest and seat Backrest trim Cover backrest and seat... - Page 7 SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR WHAT’S IN THE BOX ITEM IMAGE DESCRIPTION 3D armrest Support your arms during chair use Piston Support your weight and adjust chair height Piston cover Protect piston from dirt and provide aesthetics Wheel base...
-
Page 8: Precautions
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR PRECAUTIONS Please take the following precautions: - Handle all components with care. - Remove all components for protective packaging and sort them out - To avoid damaging components do not use of sharp objects. -
Page 9: Requirements
2. A magnetic Phillips screw driver This means you need to have the Phillips screw driver available in order to complete this assembly. Note: Handle all components with care, should you need any assistance go to www.riotoro.com/support Before You Begin... -
Page 10: Ready, Setup, Go
Ready, Setup, Go www.riotoro.com/chairs... -
Page 11: Specifications
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR SPECIFICATIONS - Bluetooth: - RGB: - Power bank: - Back Structure: Metal and Foam - Back Trim: Synthetic Leather and Foam - Back Waist: - Fabric: Synthetic Leather - Armrest: 3D Arm - Seat Materials:... -
Page 12: Install The Castors
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE CASTORS Place each castor on the respective hole located in the wheel base. Position the wheel base with the holes looking Once all castors are placed securely in position upwards and insert each castor. You will hear a turn over, place on the floor and from the center clicking sound once it is in position. -
Page 13: Install The Piston
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE PISTON Gather the piston and piston cover and install to the wheel base. Thread the piston through the wheel base. Once the piston is in place, simply put the piston cover on top of it. -
Page 14: Install The Base
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE BASE Gather four M8x25.0mm screws, the Allen wrench, the seat and adjustable base to proceed with the installation. 3.5 mm RGB Jack Screw order Screw order Align the adjustable base mounting holes and the Secure the adjustable base to the seat by using seat mounting holes. -
Page 15: Install The Armrest
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE ARMREST Gather four M8x25.0mm screws, both armrest and the Allen wrench to proceed with the installation. Align the armrest mounting holes with the seat Repeat the same process as previous armrest. -
Page 16: Install The Seat And Bottom Assembly
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE SEAT AND BOTTOM ASSEMBLY Assemble the seat and base as a single unit. Place the seat on top of the piston and push down Make sure that both backrest side supports are in the seat to make sure it is threaded. -
Page 17: Install The Bottom And Back Assembly
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE BOTTOM AND BACK ASSEMBLY Secure the backrest to the bottom assembly in order to proceed to next step. Align the backrest support with the adjustable Secure the backrest to the supports on both sides base hole and slide it into position. -
Page 18: Install The Side Trim
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR INSTALL THE SIDE TRIM Cover the side structure supports with the provided trim. Attach the long structure support on the left side Attach the short structure support on the right of the chair with the provided screw and place side of the chair with the provided screw and screw cover. -
Page 19: Personalization
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR PERSONALIZATION As a final step attach the neck and back support pillows to the chair. pull leaver up pull leaver to the side Unbuckle both pillows and attach them to the Adjust the seat and backrest to the desired chair. -
Page 20: Connecting Power
RACING STYLE GAMING CHAIR CONNECTING POWER The Spitfire X1S PLUS has been designed with full mobility in mind, for that reason in order to power the lights you must connect the chair to a power bank. Take out the USB power cable out of the backrest Connect USB power cable to power bank and pocket. -
Page 21: Bluetooth Pairing
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR BLUETOOTH PAIRING When connected to a power source the Bluetooth transmitter will prompt saying, "the Bluetooth device is ready to pair". Search on your devise for "YI-707" and pair them, once paird it will prompt saying, "the Bluetooth device is paired successfuly". -
Page 22: Customizing Rgb Lighting
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR CUSTOMIZING RGB LIGHTING You can easily customize the chair lighting by pressing the color, brightness, speed or mode button on the RF remote control, the setting will be saved even when the system is powered off. - Page 23 Everything Else...
-
Page 24: General Maintenance
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR GENERAL MAINTENANCE If you need to clean your gaming chair, follow these instructions: - Wipe it down with a clean cloth. - Remove any excess dust or debris by vacuuming or dusting it. For fabric or RACING areas you may use the regular or brush attachment on vacuum cleaner and gently rub it. -
Page 25: Limited Product Warranty ("Limited Warranty")
RACING STYLE GAMING CHAIR LIMITED PRODUCT WARRANTY ("Limited Warranty") Limited Warranty. RIOTORO warrants the Product to be free from defects in materials and workmanship when used normally in accordance with the official documentation for the applicable Warranty Period from the date of retail purchase. -
Page 26: Recommended Parts
SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR RECOMMENDED PARTS C A S E S CR1288 Full Tower: Customizable RGB Color Enthusiast Case, designed to deliver unparalleled cooling performance, quiet operation, complete color customization and with an elegant but aggressive design. - Page 27 SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR RECOMMENDED PARTS P O W E R S U P P L Y U N I T BUILDER EDITION 500W & 600W: The Builder Edition combines 80 PLUS White certified energy efficiency with flat cables for reduced energy consumption, quiet operation, and easy installation.
- Page 28 SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR RECOMMENDED PARTS W A T E R C O O L I N G R G B F A N BIFROST 120ti & 240: is a new generation water cooling solution for both AMD and Intel platforms.
- Page 29 SPITFIRE X1S PLUS RACING STYLE GAMING CHAIR RECOMMENDED PARTS G A M I N G M I C E G A M I N G K E Y B O A R D AUROX: the Aurox Prism RGB gaming mouse combines an ergonomic exterior with an ultra-precise 10000 DPI optical sensor, 8 programmable buttons, aluminum scroll wheel, and customizable RGB lighting.
- Page 30 © 2020 RIOTORO Inc. All rights reserved. RIOTORO, the RIOTORO logo, and SPITFIRE X1S PLUS are trademarks of RIOTORO Inc., Registered in the U.S. and other countries. All other trademarks are the property of their r espective owners. Product may vary slightly from those pictured.
