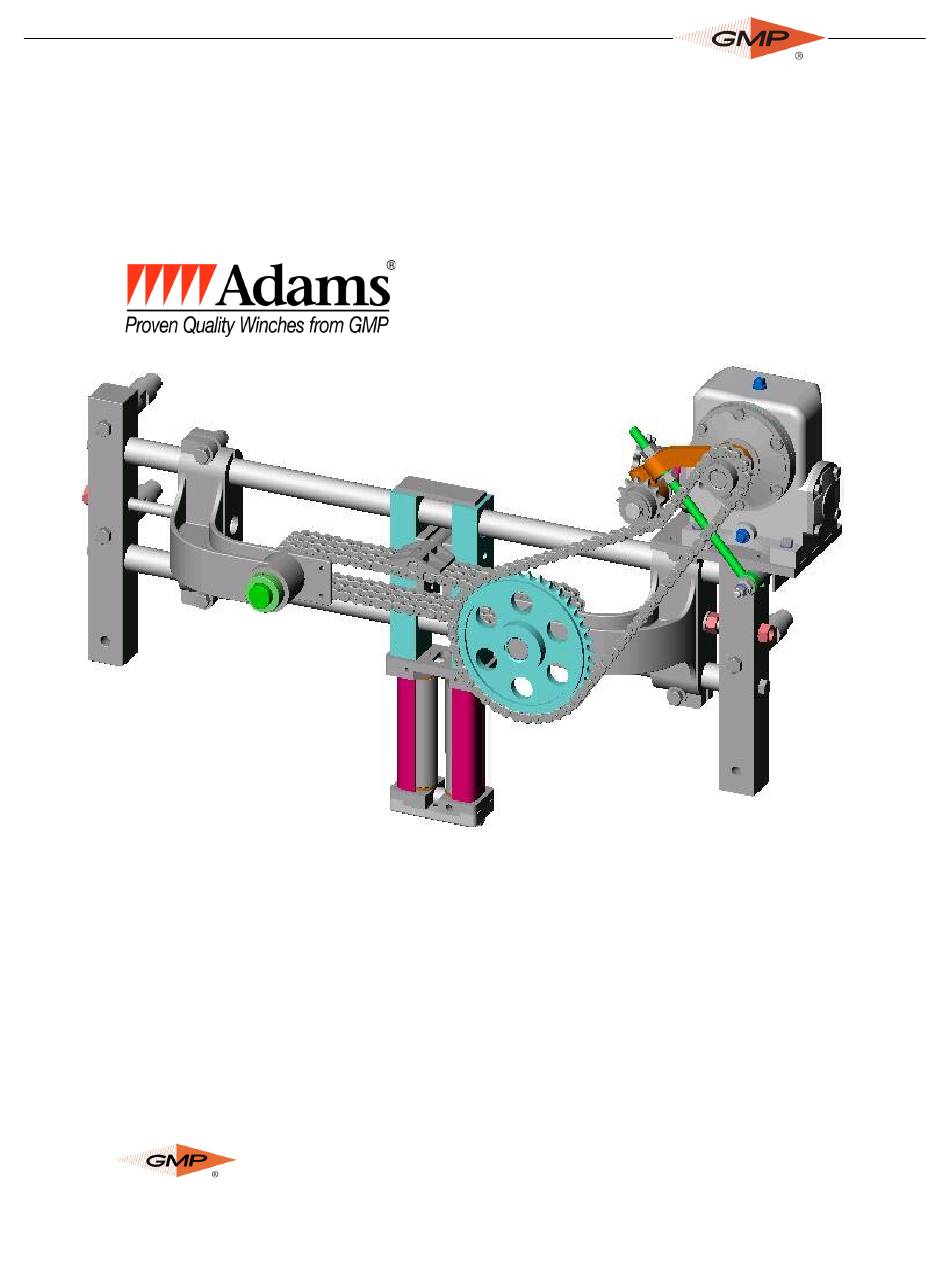

Adams Model CD3 & WG Rope Winder
INSTALLATION, OPERATION & MAINTENANCE
Copyright 2018 by General Machine Products (KT), LLC
All rights reserved. No part of this publication may be copied, reproduced or transmitted in any form
General Machine Products (KT), LLC
whatsoever without the written permission of
GMP • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA
TEL: +1-215-357-5500 • FAX: +1-215-357-6216 • EMAIL: www.gmptools.com
July 17 2018 USA Ver 2a
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Adams CD3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GMP Adams CD3

Summary of Contents for GMP Adams CD3

  • Page 1 All rights reserved. No part of this publication may be copied, reproduced or transmitted in any form General Machine Products (KT), LLC whatsoever without the written permission of GMP • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA TEL: +1-215-357-5500 • FAX: +1-215-357-6216 • EMAIL: www.gmptools.com July 17 2018 USA Ver 2a...

  • Page 2: Table Of Contents

    SECTION TABLE OF CONTENTS PAGE GENERAL INFORMATION DESCRIPTION OPERATION PLACING WIRE ROPE ONTO THE WINCH DRUM ADJUSTMENT LUBRICATION SPROCKET AND CHAIN SELECTION WIRE ROPE WIRE ROPE LUBRICATION 10.0 REPAIR PARTS PARTS IDENTIFICATION DRAWING PARTS LIST 10, 11 REDUCER ASSEMBLY INDENTIFICATION Speed Reducer Cross Chain Drive Pin...

  • Page 3: General Information

    Due to minor variations in the diameter of the wire rope, the aver- age diameter may have to be determined in order to modify the speed of the rope winder. Take several diameter measurements along the length of the wire rope, and call GMP to determine the correct sprocket combination.

  • Page 4: Placing Wire Rope Onto The Winch Drum

    gled wraps, remove several feet of improperly wrapped rope and rewind, under tension, prior to starting the actual pull. To insure good operation, the wraps and lays must always be straight and compact. The winch is furnished with a caliper type drag brake. The brake is not designed to hold the load. The purpose of the brake is to control the drum rotation speed when paying out wire rope under free spool conditions.

  • Page 5: Lubrication

    output single width roller chain drives should be tight enough to prevent backlash but not exces- sively tight to cause bending of the reducer shafts. Special care should be taken when adjusting the first reduction chain. Rotate the drum (with the chain loose), to the point where the chain is at its tightest (its high spot).
  • Page 6 The WG winch is designed to accept 7/16” diameter wire rope only. ● American produced wire rope is never smaller than the nominal diameter, always larger with a plus tolerance of 1/32” in the size range used on GMP Adams Winches. Some foreign product may be smaller. ●...

  • Page 7: Wire Rope

    4. Remove the chain guards from the sprocket(s) to be changed. Be careful to not lose the hard- ware. 5. To loosen the chain loosen the jam nuts on the idler adjustment shaft. 6. Remove the chain connector and remove the chain from the sprocket(s) to be removed. 7.

  • Page 8: Repair Parts

    Application engineering assistance is available from GMP. WARNING! The cable clamp alone is not designed to hold the rated load. Approximately ½ of the first layer of winch line must be left on the drum to achieve the rated load and avoid cable clamp failure.
  • Page 10 Refer to Drawing # 30435 on Page 9 Item Part Req’d Description Qty. 26459 Carriage assembly (CD3 over wind, WG over and under wind) Includes items 2A, 3A, 4, 5, 6 Assy 26460 Carriage assembly (CD3 under wind) Includes items 2A, 3A, 4, 5, 6 Assy 25869 Roller Assembly (WG, CD3 over wind) 25870...
  • Page 11 Refer to Drawing # 30435 on Page 9 Item Part Req’d Description Qty. 16744 Idler Adjusting Rod 09794 1/2” Washer Flat 14962 Sprocket Idler 13 Teeth 5/8” Pitch Roller Chain With Set Screw 15594 Idler Shaft Assembly Includes: 1 #14966 230-1541 Idler Shaft 2 #16748 5160-87 Snap Ring 1 #16749 7/8”...
  • Page 12 Winch Rope Winder Reducer Assembly Item # Part # Description Qty. Item # Part # Description Qty. 15982 Plug, Breather Not used 16442 Plug, Drain 16447 Seal, Oil 16888 Plug, Oil 15975 Carrier, Open Bearing 16448 Seal, Oil 16033 Bolt, Hex Hd 5/16-18x3/4 15976 Carrier, Open Bearing 17140 Gasket, Shim .005 (blue)
  • Page 13 The GMP Limited Warranty can be found at http://www.gmptools.com/warranty/...
  • Page 14 TEL: 215-357-5500 FAX: 215-357-6216 E-MAIL: info@GMPtools.com WEB: http://www.GMPtools.com GMP reserves the right, without notice, to make changes in equipment design or components as progress in engineering or manufacturing methods may warrant. All contents ©2012 GMP General Machine Products Co. Inc.

This manual is also suitable for:

Adams wg
