GMP PULLDOG 70625 Operation And Maintenance

Overhead line winch trailer
Hide thumbs

Advertisement

Quick Links

Download this manual
PULLDOG

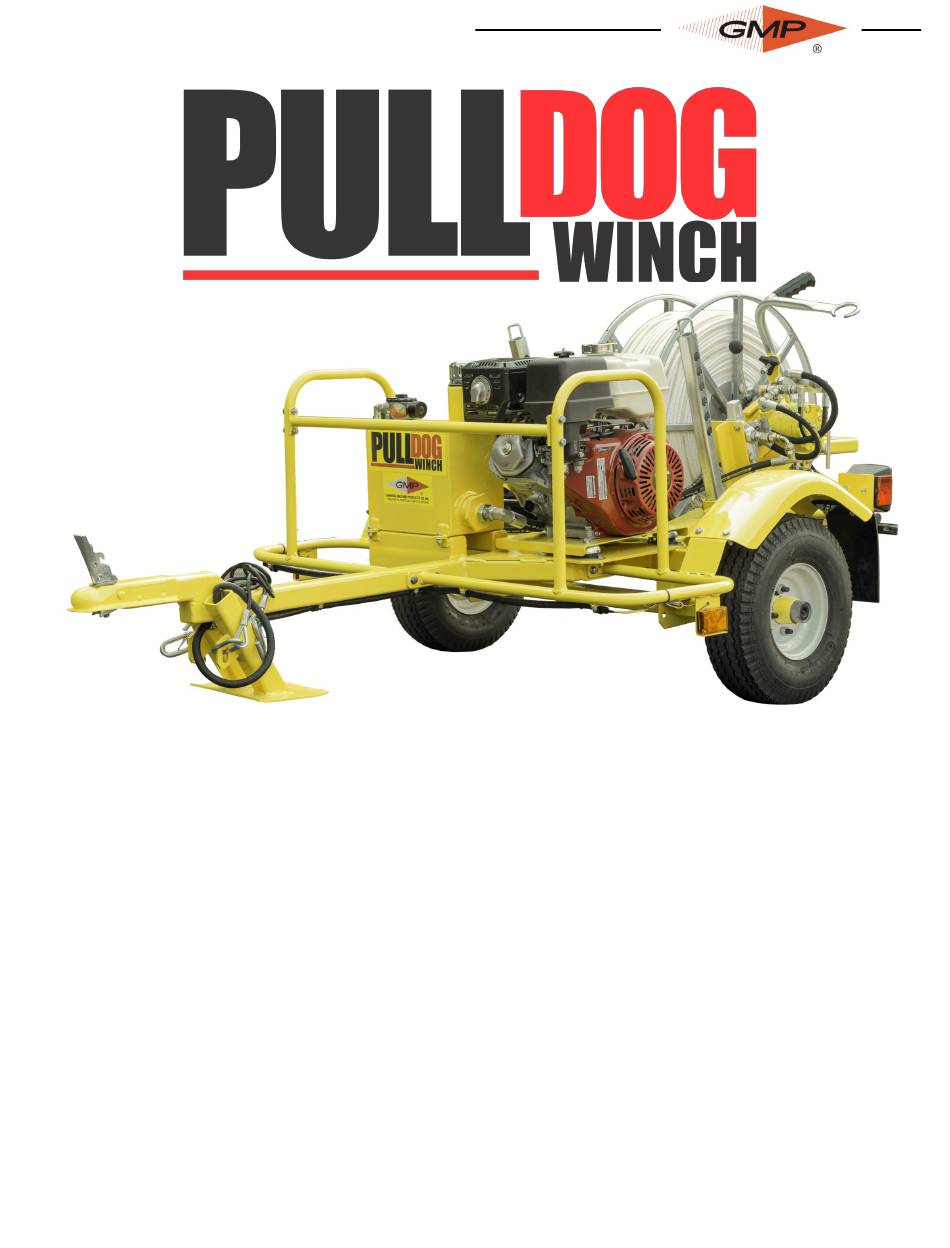

Overhead Line Winch Trailer
Operation and Maintenance
Model 70625
All rights reserved. No part of this publication may be copied, reproduced or transmitted in any form whatsoever without
the written permission of General Machine Products (KT), LLC
General Machine Products (KT), LLC • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA
TEL: +1-215-357-5500 • FAX: +1-215-357-6216 • WEB:www.gmptools.com
5/16/2018 Ver 2 USA AK
36202

Advertisement

loading
Need help?

Need help?

Do you have a question about the PULLDOG 70625 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GMP PULLDOG 70625

Summary of Contents for GMP PULLDOG 70625

  • Page 1 PULLDOG Overhead Line Winch Trailer Operation and Maintenance Model 70625 All rights reserved. No part of this publication may be copied, reproduced or transmitted in any form whatsoever without the written permission of General Machine Products (KT), LLC General Machine Products (KT), LLC • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA TEL: +1-215-357-5500 •...

  • Page 2: Table Of Contents

    5. Operating Procedures 6. Maintenance 7. Towing Instructions 8. Equipment Layout GMP Limited Warranty can be found at http://www.gmptools.com/warranty/ General Machine Products (KT), LLC • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA TEL: +1-215-357-5500 • FAX: +1-215-357-6216 • www.gmptools.com...

  • Page 3: Introduction

    1.0 INTRODUCTION Founded by engineer George M. Pfundt in 1936, GMP started operations in a downtown Philadelphia building as a specialty machine shop doing work for the local Bell Telephone company and for the electric utility company. GMP expanded to a production shop after landing a contract with Western Electric...

  • Page 4: Safety Instructions

    2.0 SAFETY INSTRUCTIONS THIS EQUIPMENT MUST ONLY BE USED BY AUTHORIZED PERSONNEL, WHO HAVE BEEN SUITABLY TRAINED AND COMPETENT TO DO SO. THESE INSTRUCTIONS ARE TO BE MADE AVAILABLE TO OPERATORS OF THIS EQUIPMENT AT ALL TIMES, FAILURE TO OBSERVE THESE SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY AND / OR PROPERTY DAMAGE.

  • Page 5: General Description

    3.0 GENERAL DESCRIPTION The Pulldog winch is a compact, transportable unit for any number of outside plant activities that’s easily pulled behind a small SUV or truck. The self-contained winch is powered by an 11.7 hp gasoline engine and the precise control required is provided by the hydraulic circuit.

  • Page 6: Operating Procedures

    5.0 OPERATING PROCEDURE IT IS IMPERATIVE THAT ALL PERSONS USING, OPERATING OR MAINTAINING THIS WINCH BE FULLY TRAINED AND COMPETENT TO DO SO, AND HAVE READ THE ENTIRE OPERATING MANUAL. GENERAL MACHINE PRODUCTS (KT), LLC CANNOT BE HELD RESPONSIBLE FOR MIS-USE OF THIS EQUIPMENT.
  • Page 7 5.5 Pulling Out Winch Line Place the drum free wheel mode by disengaging the coupling and the winch line can be simply pulled out as required. 5.6 Starting Engine The engine fuel tank should be filled with the correct grade of fuel before commencing, refer to the Engine Operating Manual for details.

  • Page 8: Maintenance

    LY TRAINED AND COMPETENT TO DO SO, AND HAVE READ THE ENTIRE OPERATING MANUAL. GMP CANNOT BE HELD RESPONSIBLE FOR MIS-USE OF THIS EQUIPMENT. It is recommended that this winch is serviced every 12 months, regardless of its condition or the number of operating hours used.
  • Page 9 6.3 ANNUAL SERVICING This service should be carried out at approximately 12 monthly intervals by a qualified and experienced workshop team. Carry out all the work as specified above in section 6.2 • Drain the hydraulic circuit of oil. Clean the filler/breather and replace. Renew the suction filter •...

  • Page 10: Towing Instructions

    7.0 TOWING INSTRUCTIONS BEFORE TOWING a) Check that the ball coupler cup is well greased. b) Lower the trailer’s coupler on the towing vehicles towing hitch ball. c) Grasp locking handle on top of coupling and press trigger backwards with thumb. Then lift handle (you can now release trigger).

  • Page 11: Equipment Layout

    8.0 EQUIPMENT LAYOUT 1. HYDRAULIC OIL TANK 10. RETURN LINE FILTER 2. ENGINE 11. ROPE DRUM 3. HYDRAULIC PUMP 12. REAR PROP 4. WINCH IN / OUT CONTOL LEVER 13. FRONT PROP 5. LAYERING ARM 14. SUCTION FILTER 6. HITCH COUPLING 15.
