PowerBase 577163 Instruction Manual

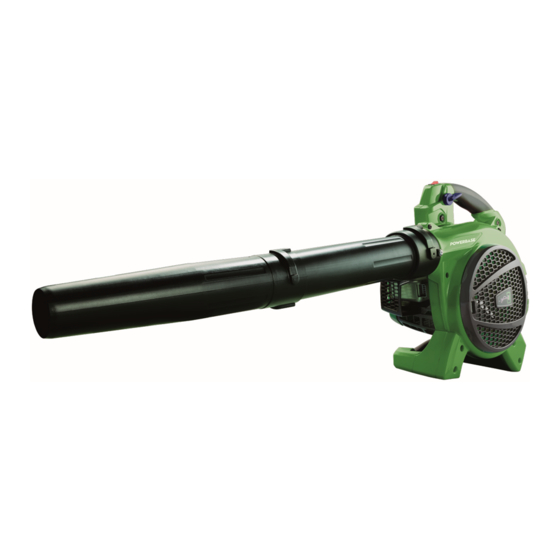

27.2cc petrol blower and vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

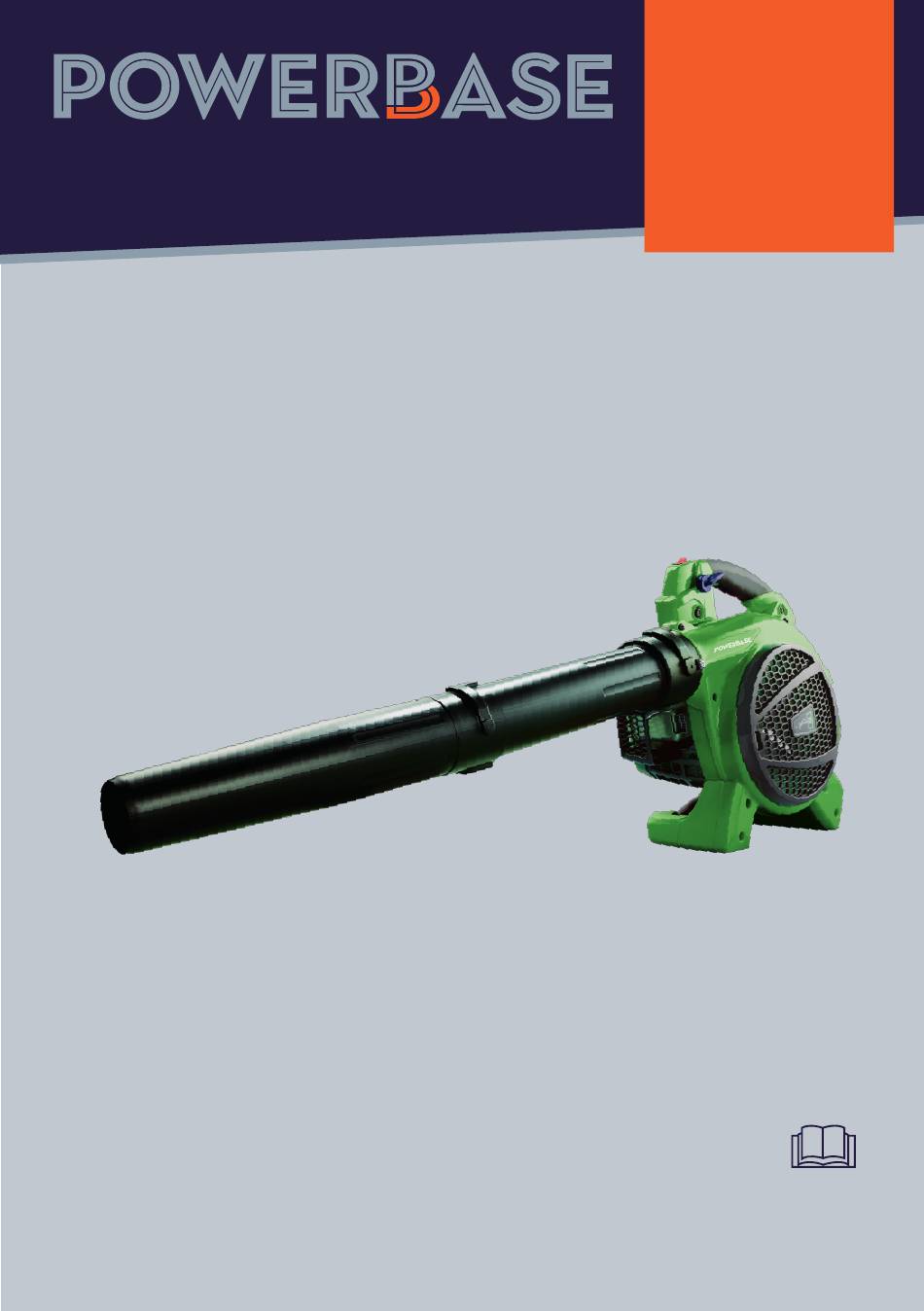

27.2cc Petrol
Blower and Vacuum
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
577163
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 577163 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBase 577163

Summary of Contents for PowerBase 577163

  • Page 1 IMPORTANT! 27.2cc Petrol Please read these Blower and Vacuum 577163 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help...

  • Page 2: Table Of Contents

    Contents General safety warnings Intended use Warning symbols In the box Assembly Operation Maintenance and storage Troubleshooting Technical data Disposal Getting help Warranty...

  • Page 3: General Safety Warnings

    General Safety Warnings Safety warnings WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference. • Always ensure anyone intending to operate this machine is fully conversant with the contents of this instruction manual prior to assembling, maintaining or operating the machine.
  • Page 4 General safety • Use the product correctly. Injury or death is a possible result of incorrect use. Only use the product for the tasks found in this manual. Do not use the product for other tasks. • Obey the instructions in this manual. Obey the safety symbols and the safety instructions.
  • Page 5 • Do not use the product if it is changed from its initial specification. Do not change a part of the product without approval from the manufacturer. Only use parts approved by the manufacturer. Injury or death is a possible result of incorrect maintenance.
  • Page 6 decrease the risk of injury or death. • Do not leave the product unattended when the engine is on. • The operator of the product is responsible if an accident occurs. • Make sure that parts are not damaged before you use the product. •...
  • Page 7 Personal safety Personal protective equipment (PPE) • Always use correct personal protective equipment when you operate the product. The personal protective equipment does not erase the risk of injury. The personal protective equipment decreases the grade of injury if an accident occurs. •...
  • Page 8 • Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces. Stop switch Start the engine. Make sure that the engine stops when you move the stop switch to the stop position.
  • Page 9 • Some blower models are have a spark- arresting screen. Clean and replace the screen at specified intervals. See the Maintenance section. Operation safety Safety instructions for operation of the blower • Use the product only for blowing or removal of leaves and other debris on the ground.
  • Page 10 • Do not operate the product in a space with unsatisfactory airflow. If the airflow is not sufficient, it can cause injury or death because of asphyxiation or carbon monoxide. • The muffler is very hot while the product is on, after it stops and when it runs at idle speed.
  • Page 11 • If the work area is dirty, spray it with a hose. • Use the product as an alternative to a hose to save water. • Blow debris safely. Look out for children, animals, open windows or vehicles. • Do not point the product at easily damaged plants.
  • Page 12 Fuel safety • Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry. Remove unwanted fuel from the product. • If you spill fuel on your clothing, change clothing immediately.
  • Page 13 • Tighten the fuel tank cap carefully or a fire can occur. • Move the product at a minimum of 3m (10ft) from the position where you filled the tank before a start. • Do not put too much fuel in the fuel tank. •...

  • Page 14: Intended Use

    Keep all nuts, bolts and screws tight, to be sure the equipment is in safe working condition. Never store the equipment with petrol in the tank inside a building where it can reach an open flame or spark. Allow the engine to cool before storing in any enclosed space.

  • Page 15: Warning Symbols

    Warning Symbols Warning! Read the manual Wear hearing protection and eye protection (PPE) when using the device. Do not go near the impeller as it turns. Full choke Half choke No choke Hot surfaces will burn the hands! Warning! The blowers exhaust gas contains toxic substances.

  • Page 16: In The Box

    In the Box Parts Shoulder strap 2. Throttle trigger 3. STOP switch 4. Cruise control 5. Fan housing 6. Fuel tank cap Air filter 8. Choke control 9. Primer bulb 10. Vacuum handle 11. Fan impeller 12. Upper blower tube 13.
  • Page 17 10 18...

  • Page 18: Assembly

    Assembly WARNING! Read the safety chapter before you assemble the product. Assembly for blower mode To install the upper blower tube Align the slot on the upper blower tube (A) with the tab in the blower outlet (B). 2. Push the upper blower tube fully onto the blower outlet. 3.
  • Page 19 4. Install the screw (C). 5. Turn the screw clockwise with a screwdriver to attach the tube. To install the lower blower tube Align the slots on the lower blower tube (A) with the tabs on the upper blower tube (B). 2.
  • Page 20 Assembly for vacuum mode To install the upper vacuum tube Insert the tip of a screwdriver into the latch area of the vacuum inlet. 2. Gently tilt the handle of the screwdriver toward the front of the product to release the latch. 3.
  • Page 21 4. Align the rib on the inside of the vacuum inlet with the slots on the upper vacuum tube. Note: Align the indicators at the vacuum inlet opening and on the upper vacuum tube. 5. Push the upper vacuum tube fully into the vacuum inlet. 6.
  • Page 22 To install the lower vacuum tube Align the slot on the lower vacuum tube with the tab on the upper vacuum tube. 2. Push the lower vacuum tube fully onto the upper vacuum tube until the tab is engaged at the end of the slot. 3.
  • Page 23 To install the collection bag tube Align the slot on the collection bag tube (A) with the tab in the blower outlet (B). 2. Push the collection bag tube fully onto the blower outlet. 3. Turn the collection bag tube until the hole in the tube is aligned with the threads in the nut in the blower outlet.

  • Page 24: Operation

    Operation WARNING! Read and understand the safety chapter before you operate the product. Fuel To use fuel CAUTION: This product has a 2-stroke engine. Use a mixture of gasoline and 2-stroke engine oil. Make sure to use the correct quantity of oil in the mixture. Incorrect ratio of gasoline and oil can cause damage to the engine.
  • Page 25 To make the fuel mixture Note: Always use a clean fuel container when you mix the fuel. Note: Do not make more than 30 days quantity of fuel mixture. Add half of the gasoline quantity. 2. Add the full quantity of oil. 3.
  • Page 26 CAUTION: Do not pull the starter rope to the end position. Do not let go of the starter rope handle when the starter rope is extended. This can cause damage to the product. Note: If the engine stops, move the choke control to the closed position and do the starting steps again.
  • Page 27 4. Let the engine warm up for 3 minutes at idle speed. 5. Move the choke lever to the NO CHOKE position. To stop the engine Press and hold the engine STOP switch until the engine stops. The switch automatically returns to the ON position. Wait 7 seconds before you try to restart the product to make sure that the switch resets.
  • Page 28 To vacuum Before you vacuum, put on the necessary safety equipment. WARNING! Make sure that the collection bag is not damaged and that the zip is closed before use. Do not use a bag that is damaged. This prevents injury caused by flying debris.

  • Page 29: Maintenance And Storage

    Maintenance and Storage WARNING! Read and understand the safety chapter before you clean, repair or do maintenance on the product. Maintenance schedule Make sure that you obey the maintenance schedule. The intervals are calculated from daily use of the product. The intervals are different if you do not use the product each day.
  • Page 30 • Clean the spark-arresting screen and replace it if necessary (not on mufflers with a catalytic converter). • Clean the carburetor area. • Clean the air filter. Monthly maintenance • Examine the starter rope handle and the starter rope. • Clean the fuel tank.
  • Page 31 To do maintenance on the spark-arrester screen Use a wire brush to clean the spark-arrester screen. To clean the cooling system Clean the parts of the cooling system with a brush. To replace the spark plug CAUTION: Always use the recommended spark plug type.

  • Page 32: Troubleshooting

    Troubleshooting Fault Possible Cause Solution Empty tank Fill up Close the throttle, start for several times, in case Flooded engine of need take out the spark plug and dry it. Fouled spark plug Clean the spark plug, (remains of carbon on check its temperature, Engine not the electrodes)
  • Page 33 Fault Possible Cause Solution Fouled spark plug Clean the spark plug, (remains of carbon check its temperature, on the electrodes) replace if needed. Adjust electrodes too far away at 0.6-07mm. Fouled carburettor or Clean the carburettor with its jets air. Fouled air filter Clean Take out the exhaust and...

  • Page 34: Technical Data

    Technical Data Property Value Model no. EBV280A Engine type Single-cylinder 2-stroke Displacement (cm 27.2cm Engine power 0.8kW Tank capacity 0.5L Max. engine speed blower 7500min Max. engine speed Vacuum 7000min Fuel ratio (petrol: 2-stroke motor oil) 40: 1 Dust bag Net weight 6.54kg Sound pressure level L...

  • Page 35: Disposal

    Disposal The Blower & Vac and its accessories are made of various recyclable materials. Dispose of the Blower & Vac in accordance with your local recycling regulations. Getting Help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support.
