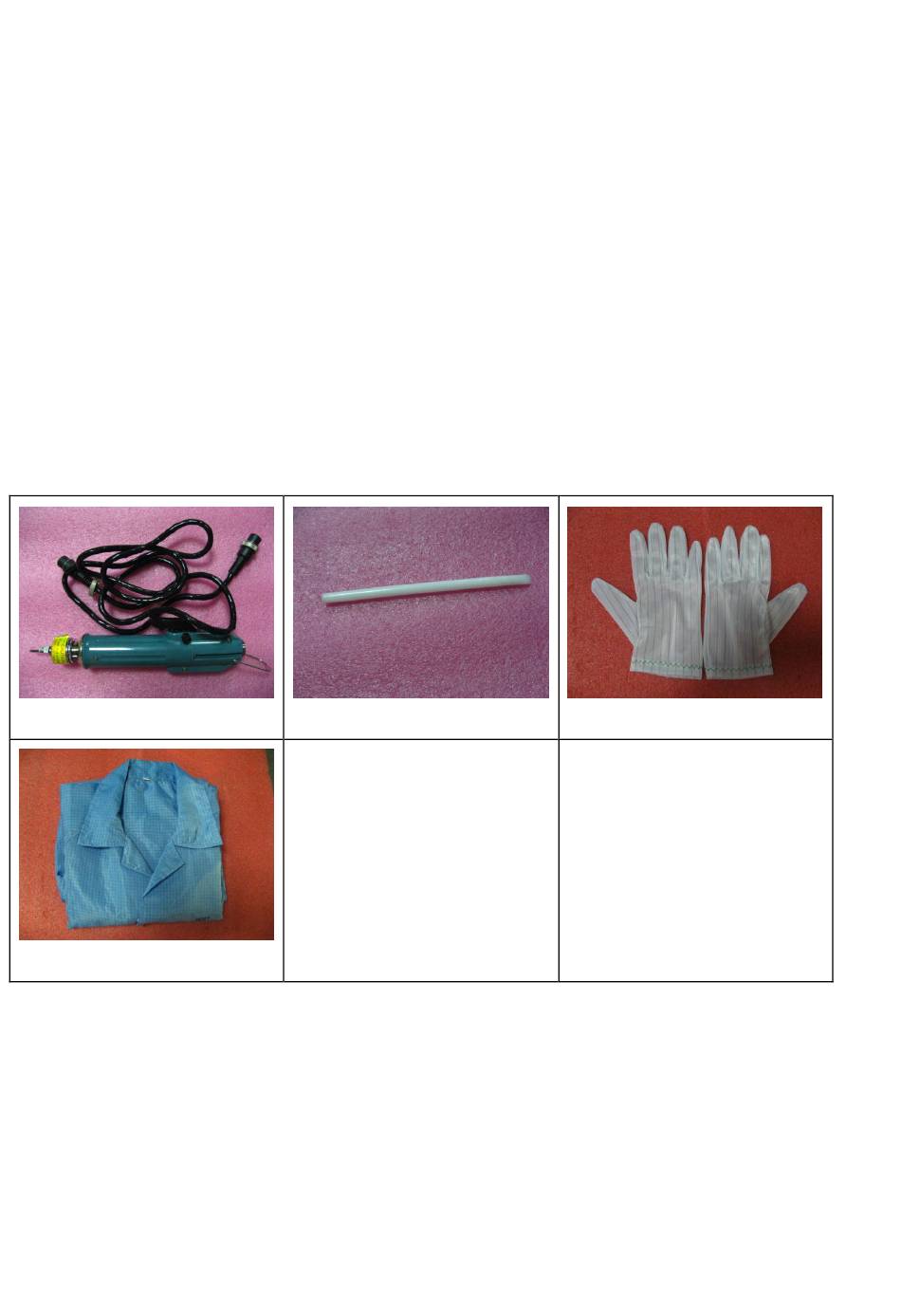

Page 2
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 1、 LCD MODULE ASSY 1.1:Assemble the CMOS camera module. Component S1F-0007050-S45 Camera Module 1.2:Assemble the LVDS cable to display module. Component K1N-3040006-V03 LVDS Cable 1.3:Assemble the display module to LCD cover. Component Display Module...
Page 3
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 1、 LCD MODULE ASSY 1.4: Lock the 6 screws (M2.5*4mm) that stabilize the left hinge. Attention: the screw driver torque is 3.0-3.5Kgf-cm Component E2M-6H20711-G60 HINGE_L E43-1203032-G68 screw 1.5: Lock the 6 screws (M2.5*4mm) that stabilize the right hinge.
Page 4
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 2、UPPER CASE ASSY 1.7 : Assemble the T/P module , then lock 3 screws (M2*2.5mm) Attention: the screw driver torque is 1.5-2.0Kgf-cm Component E43-1202509-G68 Screw S78-3700830-E47 T/P Module 1.8:Assemble the antenna Component S79-1803170-I05 Antenna 1.9:Affix to the aluminized paper;assemble 2 pcs...
Page 5
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 2、UPPER CASE ASSY 2.1:Assemble the Power board., then lock 2 screws (M2*3mm) Attention: the screw driver torque is 1.5-2.0Kgf-cm Component E43-1203013-H29 Screw 607-16H2C-01S Power Board 2.2:Assemble the speaker module Component S33-A020420-Y07 Speaker Module...
Page 6
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 2、UPPER CASE ASSY 2.3:Lock the 1 screws (M2.5*4mm) that stabilize the right LCD hinge. Attention: the screw driver torque is 2.5-3.0Kgf-cm Component E43-1254015-H29 Screw 2.4:Lock the 1 screws (M2.5*4mm) that stabilize the left LCD hinge.
Page 7
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 3、MAIN BOARD ASSY 3.1: Assemble the fansink(L), after that lock the 4 screws (M2*3mm). Attention:the screw driver torque is 2.0-2.2Kgf-cm Component E43-1203013-H29 Screw E32-0404680-A02 Fansink(L) 3.2: Assemble the fansink(R), after that lock the 4 screws (M2*3mm).
Page 8
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 3、MAIN BOARD ASSY 3.4:Assemble RAM module according the direction as pic shows. Component S7C-S58A502-A97 RAM Module 3.5:Assemble the main board to upper case. Component Main Board 607-16H21-03S 3.6:Connect audio cable ,then assemble the audio board.
Page 9
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 3、MAIN BOARD ASSY 3.7 : Assemble the 3 screws (M2.5*4mm). Then assemble the 3 screws (M2*3mm). Attention: the screw driver touque is: 2.0-2.5kgf-cm Component Screw E43-1254015-H29 Screw E43-1203013-H29 3.8:Assemble the DC IN module. Component...
Page 10
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 3、MAIN BOARD ASSY 3.10:Connect Fan cable & LVDS cable & power cable and Camera cable. Fan cable power cable LVDS cable Camera cable 3.11: Connect DC IN Cable & speaker Cable and Fan Cable.
Page 11
GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide 5、HDD MODULE & WALN MODULE 5.1:Insert WLAN Module;Assemble the two sides wireless card antenna as pic shows; then lock 1 screw (M2.5*4mm). Attention: the screw driver torque is: 1.5-2.0Kgf-cm Component S57-08001E0-I06 WLAN Module E43-1254015-H29 Screw 5.2: Assemble the LED board;...
