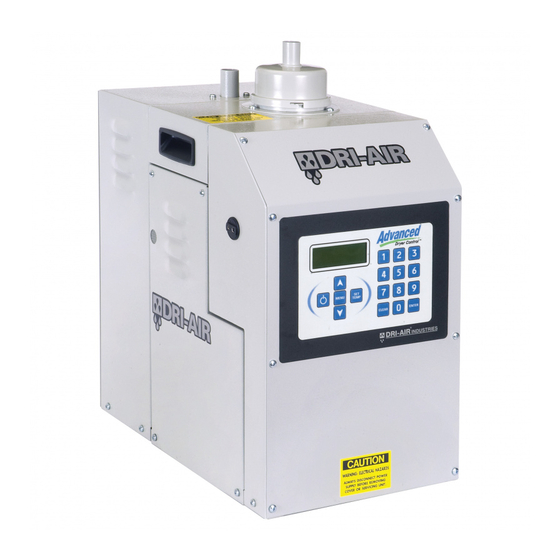

- Page 1 DRI-AIR INDUSTRIES, INC. ARID-X10C FLOOR MOUNT DRYER OPERATING MANUAL OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 1 Revision 7/28/04...
- Page 2 DRI-AIR INDUSTRIES, INC. DRI-AIR INDUSTRIES, INC. 16 THOMPSON ROAD P.O. BOX 1020 EAST WINDSOR, CT 06088-1020 Tel. (860) 627-5110 (860) 623-4477 Internet http://www.dri-air.com e-mail: sales@dri-air.com OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 2 Revision 7/28/04...
-
Page 3: Table Of Contents
DETAILED TROUBLESHOOTING Pg 18 ZONE VALVE TROUBLESHOOTING Pg 18 CONTROLS TROUBLESHOOTING PARTS LIST Pg 19 ELECTRICAL SCHEMATIC 110V Appendix 85257 ELECTRICAL SCHEMATIC 220V Appendix 85258 DRYER CONFIGURATION Appendix 84430 OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 3 Revision 7/28/04... -
Page 4: Dryer Description
DRYER are 10 lbs./hr or less. DESCRIPTION The ARID-X10C dryer is available in 110 volt and 230 volt models. The power requirements for the 110 volt model are a voltage range of 105-130v AC at 50/60 Hz., single phase with a 20 amp current rating and the 230 volt model requires a range 220- 250v AC at 50/60 Hz., single phase with a 10 amp... - Page 5 ELC Control Module The ELC Control Module controls the regeneration cycle described in the previous section. It has been factory programmed and does not require any additional input by the OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 5 Revision 7/28/04...
- Page 6 The electric controls are easily accessable for trouble-shooting, and are equipped with lights to indicate the zone position of the valve. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 6 Revision 7/28/04...
-
Page 7: Air Flow Schematic
AIR FLOW SCHEMATIC FOR ARID-X 10 DRYER FILTER VORTEX BLOWER 4-WAY ZONE VALVE FROM MATERIAL HOPPER VENT UPPER REGENERATION HEATERS LOWER REGENERATION HEATERS SAFETY THERMAL TO HOPPER PROCESS HEATER OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 7 Revision 7/28/04... - Page 8 DRI-AIR INDUSTRIES, INC. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 8 Revision 7/28/04...
-
Page 9: Installation Procedures
Return Air Hose to the outlet port on the material hopper (usually on top/cover of hopper) and to the dryer’s Process Inlet Port on top of the Filter Canister. Clamp each hose tightly with the hose OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 9 Revision 7/28/04... -
Page 10: Electrical Connection
1. All hose couplings are tight and secure. 2. Hoses are not crushed or obstructed. 3. Process Air Thermocouple is connected. 4. Hopper is clean and ports are clear. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 10 Revision 7/28/04... -
Page 11: Dryer Operation
To Set Process Air Temperature: Using the Digital Temperature Controller: 1. Press SEL button on the controller to enable the red Temperature Set display (labeled SV) to be altered. TEMP CONTROLLER OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 11 Revision 7/28/04... -
Page 12: Alarms
Thermocouple, the upper Process Air Temperature display (labeled PV) on the Digital Controller will flash and display 0000. This alarm will be displayed if the thermocouple is not connected or is faulty. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 12 Revision 7/28/04... -
Page 13: Routine Operation
1. Always clean hopper interior, air inlet port and diffuser basket prior to adding or changing materials. 2. Never over-fill the hopper. Material should not obstruct the exhaust port at the top of the hopper. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 13 Revision 7/28/04... - Page 14 Never clean the dryer with solvents or corrosive liquids. Always allow the dryer to cool completely before cleaning. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 14 Revision 7/28/04...
-
Page 15: Troubleshooting
ELC LCD. 4. Operating Conditions: a. Check the process air temperature. It should not be set below 140 °F (60 °C) because the unit will go into high temp alarm. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 15 Revision 7/28/04... -
Page 16: Detailed Troubleshooting
A. Check position of the Process Air Thermocouple. The probe tip should be in the middle of the hose. B. Check Digital Controller - may be faulty. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 16 Revision 7/28/04... - Page 17 If thermocouple has failed, check following: 1. Ensure thermocouple plug is securely inserted into dryer outlet. 2. Check thermocouple continuity with multi- meter. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 17 Revision 7/28/04...
- Page 18 OFF Rocker switch that acts as the Main Power Switch and EMERGENCY STOP. When this switch is in the OFF position all power is cut to the Controllers, Blower and Electric Valve. OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 18 Revision 7/28/04...
-
Page 19: Zone Valve Troubleshooting
220v Dryer 83437 TRANSFORMER – 220v 85261 TRANSFORMER - 220v EUROPE 84413 UPPER REGEN HEATER 220v 84411 LOWER REGEN HEATER 220v 84410 PROCESS HEATER 220v 81583 10 AMP FUSE OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 19 Revision 7/28/04... - Page 20 DRI-AIR INDUSTRIES, INC. NOTES: OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 20 Revision 7/28/04...
- Page 21 DRI-AIR INDUSTRIES, INC. NOTES: OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 21 Revision 7/28/04...
- Page 22 DRI-AIR INDUSTRIES, INC. NOTES: OPERATING MANUAL - ARID-X10C FLOOR MOUNT DRYER Page 22 Revision 7/28/04...
