INSTRUCTION MANUAL
for the PRO X Electric Survival Filter
For other languages, please visit:
www.survivorfilter.com/pages/manuals
© SURVIVOR FILTER™, 2020
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO X Electric Survival Filter and is the answer not in the manual?

Questions and answers

Summary of Contents for Survivor Filter PRO X Electric Survival Filter

  • Page 1 INSTRUCTION MANUAL for the PRO X Electric Survival Filter For other languages, please visit: www.survivorfilter.com/pages/manuals © SURVIVOR FILTER™, 2020...
  • Page 2 PRO X Electric Survival Filter Save These Instructions The Survivor Filter PRO X Electric Survival Filter is a precision device. Please follow all instructions in order to allow trouble free and reliable performance. ANY PROBLEMS? Do Not Return Product to the Store.

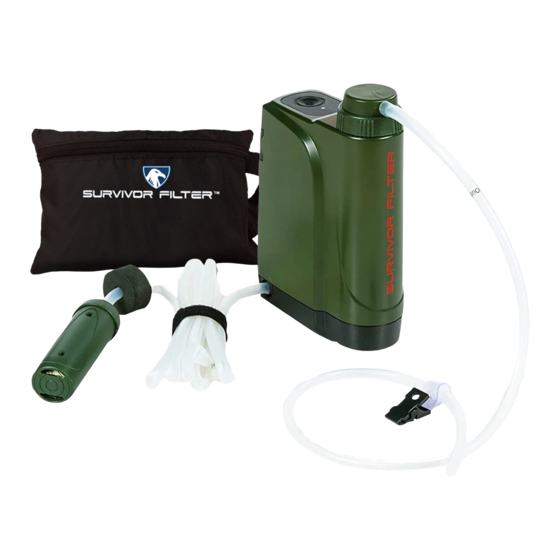

  • Page 3 PRO X Electric Survival Filter Component View © SURVIVOR FILTER™, 2020...
  • Page 4 PRO X Electric Survival Filter Exploded View Ultra Filter Water Outlet Tip Ultra Filter Water Outlet Hose Carbon Filter Ultra Filter/ Carbon Filter Chamber Power Button Micro USB Port/Port cover Clip Battery Door Housing Float Pre-Filter Water Outlet Tip Ultra Filter...
  • Page 5 PRO X Electric Survival Filter 3 Filter Components The Ultra Filter (UF) Pre-Filter The Carbon Filter The Ultra Filter © SURVIVOR FILTER™, 2020...
  • Page 6 PRO X Electric Survival Filter 3 Filter Components Provide Triple Filtration Component #1 - The Ultra Filter Pre-Filter Ultra Filter Pre-Filter provides the first line of defense to remove large particles from incoming water. Insert the Ultra Filter Pre-Filter (make sure to attach it to the Water first) directly into the water to be filtered.
  • Page 7 PRO X Electric Survival Filter 3 Filter Components Provide Triple Filtration Component #2 - The Carbon Filter Carbon Filter provides the second line of defense to remove heavy metals, residual pesticides, organic materials and odors from incoming water. The Carbon...
  • Page 8 PRO X Electric Survival Filter 3 Filter Components Provide Triple Filtration Component #3 - The Ultra Filter Ultra Filter provides the third line of defense to remove smaller particles which have not been trapped or absorbed by the Ultra Filter Pre-Filter...
  • Page 9: Power Supply Options

    PRO X Electric Survival Filter How to Use Assembly Connect Water Inlet Hose Water Inlet Fixture. Ensure that the Ultra Filter Pre-Filter is attached to other end of Water Inlet Hose. Connect Water Outlet Hose Water Outlet Fixture. Ensure that other end of...
  • Page 10 PRO X Electric Survival Filter How to Use Priming the Internal System NOTE: Once connected to a power source, you will need to prime the internal system with water before the first use. Priming the System Option #1: Unscrew and remove the Ultra Filter/Carbon Filter sembly and fill the...
  • Page 11 PRO X Electric Survival Filter Cleaning The Survivor Filter PRO X is a precision device. Please follow all instructions in order to allow trouble-free and reliable performance. Cleaning: Your Survivor Filter PRO X should be disassembled and cleaned with fresh, clean water after each use.
  • Page 12 WARNING: DO NOT soak the Carbon Filter in vinegar or denture cleaner as this will shorten the life of the Carbon Filter. Store your Survivor Filter PRO X in a clean, dry place. Avoid exposure to direct sunlight and store away from excessive heat sources.
  • Page 13 PRO X Electric Survival Filter Cleaning/Backwashing the Ultra Filter Pre-Filter Backwashing can be done once you return from your trip and can even be performed while on the trail. To backwash while on the trail or in the wilderness, make sure that you have saved some clean water that has already been filtered.
  • Page 14 filtered by the Survivor Filter PRO X. Place Survivor Filter PRO X on a firm, flat base. In preparation for backwashing, turn on the filter for 5 seconds to prime the internal system with water and to remove air.
  • Page 15 PRO X Electric Survival Filter Frequently Asked Questions Can I filter salt water? • The Survivor Filter PRO X is intended for use with fresh water sources only. DO NOT USE IN SALT WATER. How o en should I replace the filters? Under normal conditions, the Survivor Filter PRO X can •...
  • Page 16 PRO X Electric Survival Filter Specifications Model: Survivor Filter PRO X Electric Survival Filter L800 Filtration: Up to 0.01 Microns Weight: Net Weight: 14.10 ounces Gross Weight: 21.16 ounces Size: 6.5 x 2.1 x 4.9 inches Capacity: Ultra Filters: 100,000 Liters (26,417 Gallons),...
