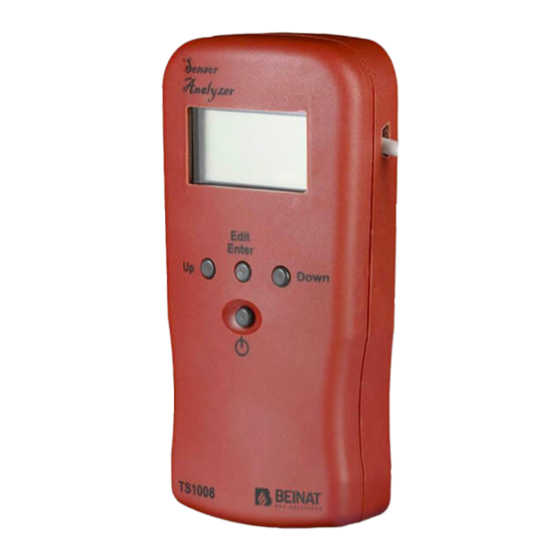

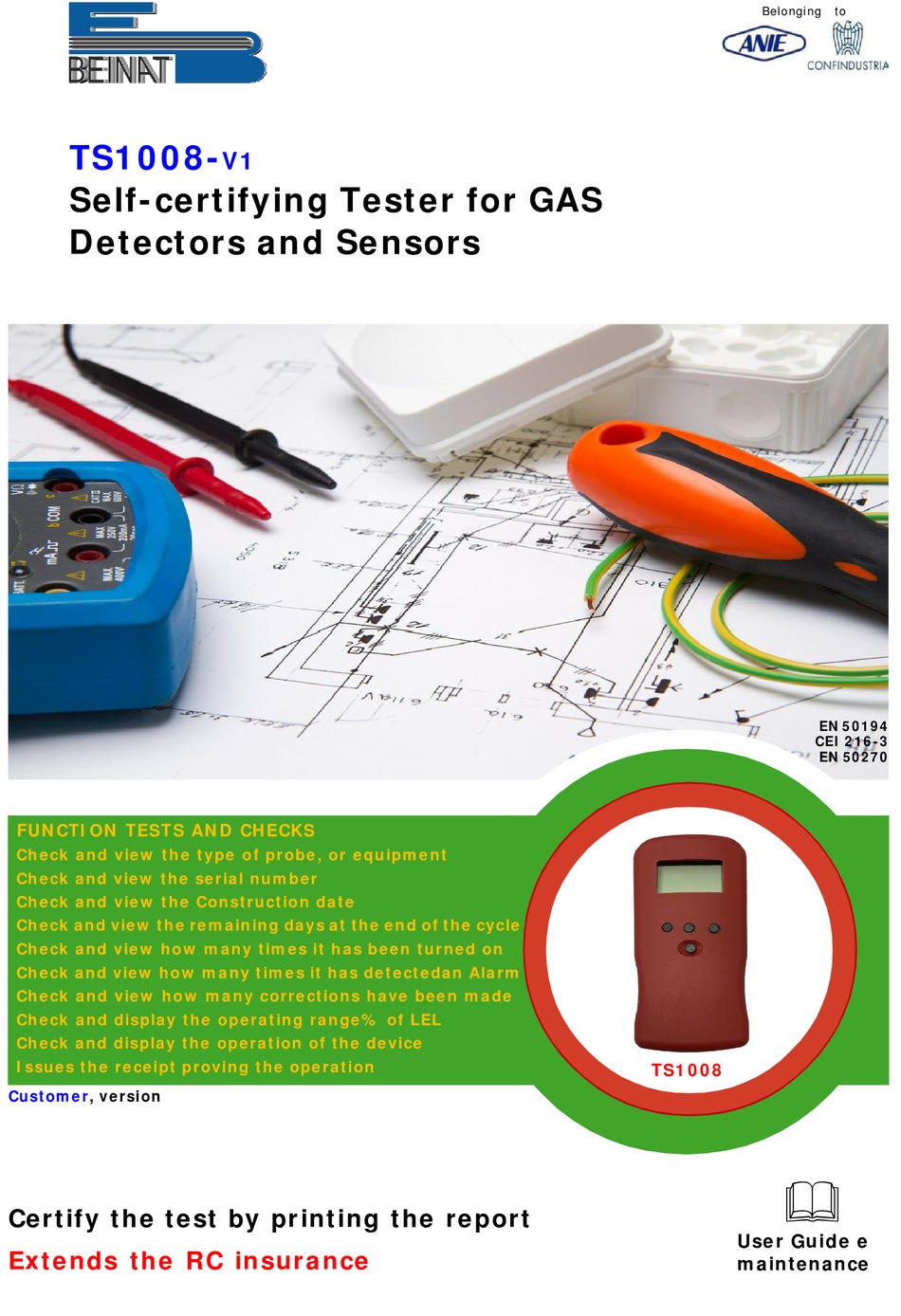

TS1008-
Self-certifying Tester for GAS
Detectors and Sensors
FUNCTION TESTS AND CHECKS
Check and view the type of probe, or equipment
Check and view the serial number
Check and view the Construction date
Check and view the remaining days at the end of the cycle
Check and view how many times it has been turned on
Check and view how many times it has detectedan Alarm
Check and view how many corrections have been made
Check and display the operating range% of LEL
Check and display the operation of the device
Issues the receipt proving the operation
Customer, version
Certify the test by printing the report
Extends the RC insurance
V1
Belonging
EN 50194
CEI 216-3
EN 50270
TS1008
User Guide e
maintenance
to
Advertisement
Table of Contents
Related Manuals for BEINAT TS1008-V1
Summary of Contents for BEINAT TS1008-V1
- Page 1 Belonging TS1008- Self-certifying Tester for GAS Detectors and Sensors EN 50194 CEI 216-3 EN 50270 FUNCTION TESTS AND CHECKS Check and view the type of probe, or equipment Check and view the serial number Check and view the Construction date Check and view the remaining days at the end of the cycle Check and view how many times it has been turned on Check and view how many times it has detectedan Alarm...
- Page 2 The illustrations and text on the screens shown in this manual may differ from what is actually displayed. Main features From the experience since 40 years and the requirements of the rules of the test, BEINAT Srl has built a new tool Tester TS1008 for its own products.
- Page 3 Battery replacement Sensor Analyzer Indicator of the charge and / or remaining level of the battery Edit Enter Down TS1008 Technical data of non-rechargeable AAA Alkaline batteries Nominal voltage of the 1.5 VDCV battery pack. caduna Operating time 380 hours with charged batteries N.B.
- Page 4 Components and commands Print IR Sensor Sensor Analyzer Analyzer LEL 20 LEL 20 Edit Edit Enter Enter Down Down TS1008 TS1008 Function of the Buttons 1) Power on and off button. To turn the TESTER on or off, keep the button pressed for 5 seconds. 2) Group of navigation buttons of the TESTER.
- Page 5 If you do not want to print, turn off the tester or connect it to another probe. Printer recommended BEINAT S.r.l. recommend a printer with infrared receiving 8 bits (1 start, error 4) Infrared 940nm, 33 kHz Page 5...
- Page 6 Check that the instrument is in line with the printer. Check that the printer is turned on and is in line with the instrument. In the event other problems arise, directly contact a specialist and/or authorised technician or your BEINAT S.r.l. dealer.
- Page 7 Testing Sensors According to the EN 50194 / EN 50291 Standards, and compliant with the EN 60079-29-1 - EN60079-29-2 Standard, in every type of system performed for the control and prevention of gas leakage it is expected that after installation performed functional checks, in the times and following ways: 1) Every six months, from the installation the user or whoever will have to perform a check on the effective operation of the detection equipment.
- Page 8 The BEINAT S.r.L. company is not liable for possible damage, direct or indirect, to people, animals, or things; from product faults and from its enforced suspension of use.
