Summary of Contents for Bike Friday Ever-E-Day 2021

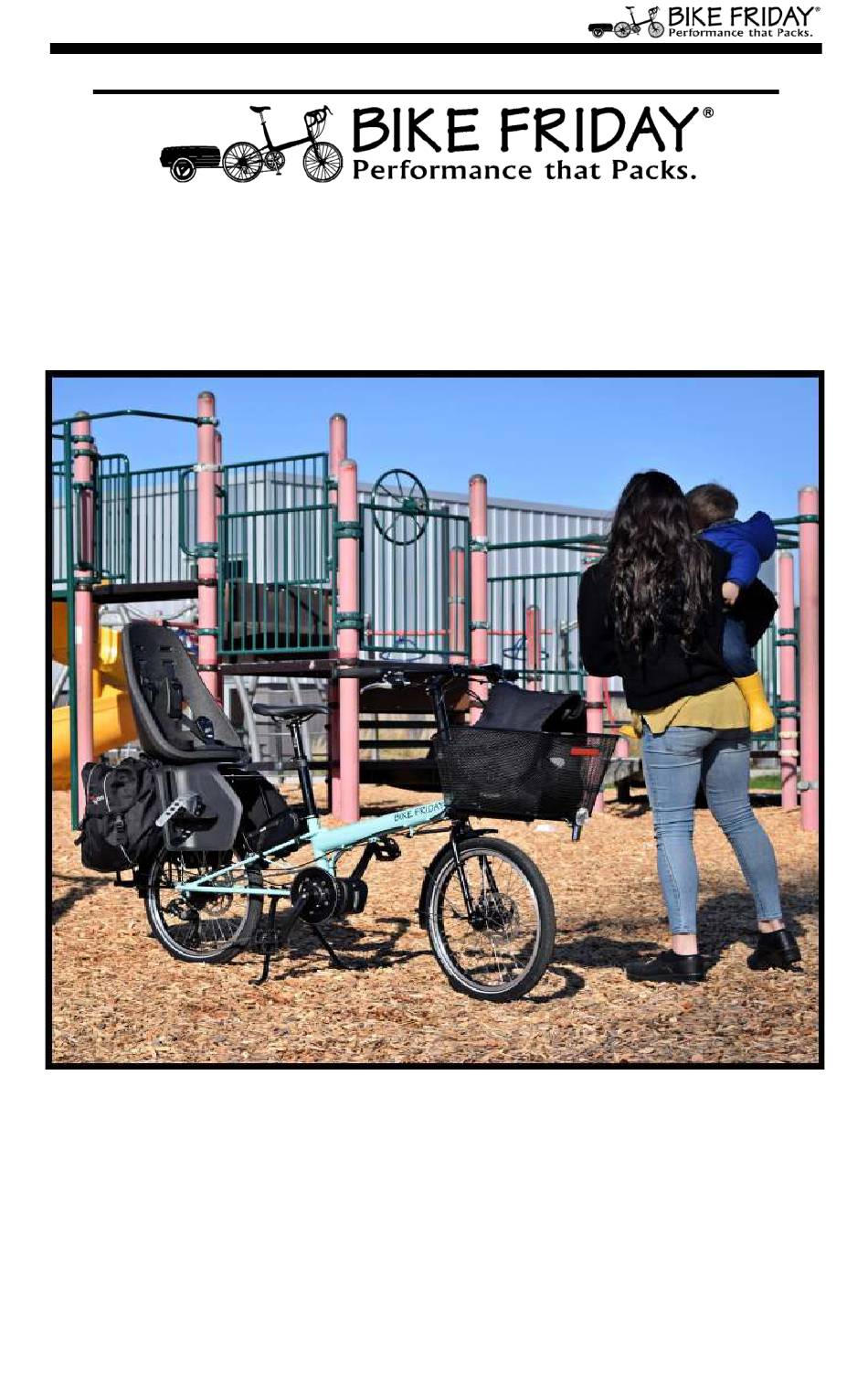

- Page 1 Using Your Bike Friday® Ever-E-Day...
- Page 2 Green Gear Cycling, Inc. 3364 W 11th Ave. Eugene, OR 97402 800-777-0258 USA & Canada +1-541-687-0487 Int’l • +1-541-687-0403 Fax www.bikefriday.com • info@bikefriday.com version 4/30/20 800-777-0258 • +1-541-687-0487 www.bikefriday.com...
- Page 3 Using a Quick Release 11-12 Assembly: Install Front Wheel, Disc Brake Adding Brake Cable Slack Double Check Steering Install Pedals Double Check Your Bike Friday Adjusting your Ever-E-Day 17-18 Saddle Height Handlebar Height Bike Friday Service Overhauls Bike Friday Service...
- Page 4 Please take your time reviewing this manual before you assemble your new Bike Friday. You will find your new bicycle to be simple and reliable anywhere you go! If You Need Help . . .
-
Page 5: A Word On Safety
Correct assembly is essential to ensuring your comfort, performance and safety while riding the Ever-E-Day. Even if you have the experience and tools to complete these essential assembly steps before your first ride, Bike Friday recommends having a reputable bike mechanic check your work. - Page 6 Fig. 1 Tools Required for Ever-E-Day assembly. [Note: Depending on the components and accessories you have purchased with your Bike Friday, your specific model may require additional tools.] Fig. 2 Open the shipping box and remove this manual, packing material, and various bicycle parts at the top of the box.
- Page 7 Unpacking your Ever-E-Day Remove the bubble wrap and zip ties to expose your seatmast, seatpost, and saddle. Minding the minimum insertion marks, install these components using the 5mm Allen as shown to the right in Fig 3. Note: The minimum insertion mark is etched at 4”...
- Page 8 Assembling your Ever-E-Day Assembling Riser, Stem, and Handlebars Locate riser clamp [Fig.5] Push down the button on the steerer tube, slide riser clamp over steerer tube until button pops into place. [Fig. 6] Tighten riser clamp. [Fig. 7] Check that this system is secure by holding the front wheel between your legs and attempt to turn the handlebars.
- Page 9 Assembling your Ever-E-Day Attaching front section to section (One Size Adjusts To All (OSATA)) Cut zip ties and remove packing material on the front frame section. Remove the sizing bolt from the front frame section. Fig. 10 Remove sizing bolt [Fig.10] Insert the front frame section (male) into the frame mid...
- Page 10 Assembling your Ever-E-Day Installing wiring, housing, and cabling Seat cable housing for rear brake into rear cable stop and pull front section of housing into front cable stop. Repeat this process for the rear derailleur. [Fig. 14] Fig. 14 Seat housing in stops Integrated front and rear LED lights come standard on the Ever-E-Day.
- Page 11 Assembling your Ever-E-Day Install, connect and charge battery Locate Separately wrapped battery and battery bag. Bag can be attached to saddle rails and seatpost. [Fig. 20] Bag and battery can also be attached to seat stays between seatmast and rear rack. Battery, battery cable, and charger use Anderson quick-connectors.
-
Page 12: Using A Quick Release
Using a Quick Release Using Those Nifty Quick Releases The quick release is one of those simple but great inventions that really makes life better. However, if used incorrectly, it can be potentially dangerous. Although a reliable and safe product when used properly, people have been injured or killed due to improper use. - Page 13 Assembling your Ever-E-Day Install the Front Wheel Make certain the wheel is fully seated in the fork drop-outs, with disc brake rotor properly aligned, you can now securely close the quick release lever. [Fig 20.] The quick release levers (front and rear) are to be placed on the non-drive side of the bicycle.
- Page 14 Assembling your Ever-E-Day Fine Tuning the Brakes For quick minor adjustments to the brake tension in the brake cable, you can turn the barrel adjuster on the brake lever. Turn this adjuster clockwise to loosen the cable or counter clockwise to add tension to the cable.
- Page 15 Double Check Your Friday Double Check Your Bike Friday! At this point your bike should be ready to ride. However, before you ride away, be sure to double-check your assembly. • Are the handlebars tight? • How about the stem and pedals? •...
- Page 16 Special Feature: If you require the saddle to be lower than the current lowest setting, you can purchase a shim and seatpost from Bike Friday so the seat post is usable directly inserted into the mainframe without the use of the seatmast.
-
Page 17: Adjusting: Handlebar
Adjusting: Handlebar Handlebar Height: This is a subjective preference. Handle- bar height can be classified into three general categories: 1) bars below saddle; 2) bars level with saddle; 3) bars higher than saddle. For reference you can use an existing comfortable bike or you can try out the three settings and see which one works best for you. - Page 18 Replace stickers • New cables and housing • New bar tape, where applicable • Test ride and packing Don’t hesitate to call Bike Friday’s Customer Service Depart-ment for help: 1-800-777-0258 (U.S.) or 1-541-687-0487 (world), or email Service@bikefriday.com www.bikefriday.com 800-777-0258 • +1-541-687-0487...
-
Page 19: Bike Friday Service
Bike Friday Service New Bike Maintenance Like all bikes, your Bike Friday travel bike will go through a break-in period. After the first few weeks of riding you might find that your drive train doesn’t shift as crisply as it did when new, or perhaps the brakes are slightly loose. - Page 20 Then it was shipped across town, the country or the world. As with any new bicycle, your Bike Friday will need several minor adjustments as it “settles in.” Knowing how to use barrel adjusters on brakes and derailleurs and adjust spring tension on brakes will help you through this settling in period.
- Page 21 Bike Friday Maintenance Maintenance Maintenance frequency depends on how much you ride and under what conditions. Wet weather will hasten the need for lubing your chain and greasing bearings, for instance. Ongoing Maintenance: • Keep the chain lubed. • Maintain recommended tire pressure (prevents flats and provides the best ride feel).
- Page 22 Bike Friday Maintenance Overhauling the Bearings [CONTINUED] To increase their lifespan before replacement, cartridges can be serviced. Using a thin knife, you can peel back the rubber/ plastic (metal in the case of Chris King) seal, clean out the old grease as much as possible, pack in new grease and reassemble.
- Page 23 Travel Tips & Airport Security Traveling with your Ever-E-Day Traveling with your Bike Friday on the airlines today will, for the most part, be as convenient as it was just a few years ago in the good old days. However, because of the need for extensive inspec-tions required by the TSA, there are a few points to consider.
-
Page 24: Warranty Information
Warranty Information Bike Friday® Guarantee We at Green Gear Cycling, Inc. (Bike Friday) want you, the customer, to be happy with your new bicycle. For direct orders shipped from the factory if your bike does not meet your expec-tations, you may return the bicycle to us for a full refund, less all shipping charges and a 15% restocking fee (as of 06-01-18). - Page 25 Warranty Information BIKE FRIDAY WARRANTY As part of the consideration for buyer’s purchase, buyer understands and agrees to the following: Green Gear Cycling warrants your bicycle frame set, including fork purchased from Green Gear Cycling or an authorized Green Gear dealer against defects in workmanship and materials for 10 years.
- Page 26 Pre-Owned Bike Guarantee We at Green Gear Cycling, Inc. (Bike Friday) want you, the cus-tomer, to be happy with your preowned bicycle. If the bike does not meet your expectations, you may return the bicycle to us for a full refund, less shipping charges. This applies to the purchases of pre-owned bicycles.
