Bike Friday Hub Motor E-assist
Getting Started Guide

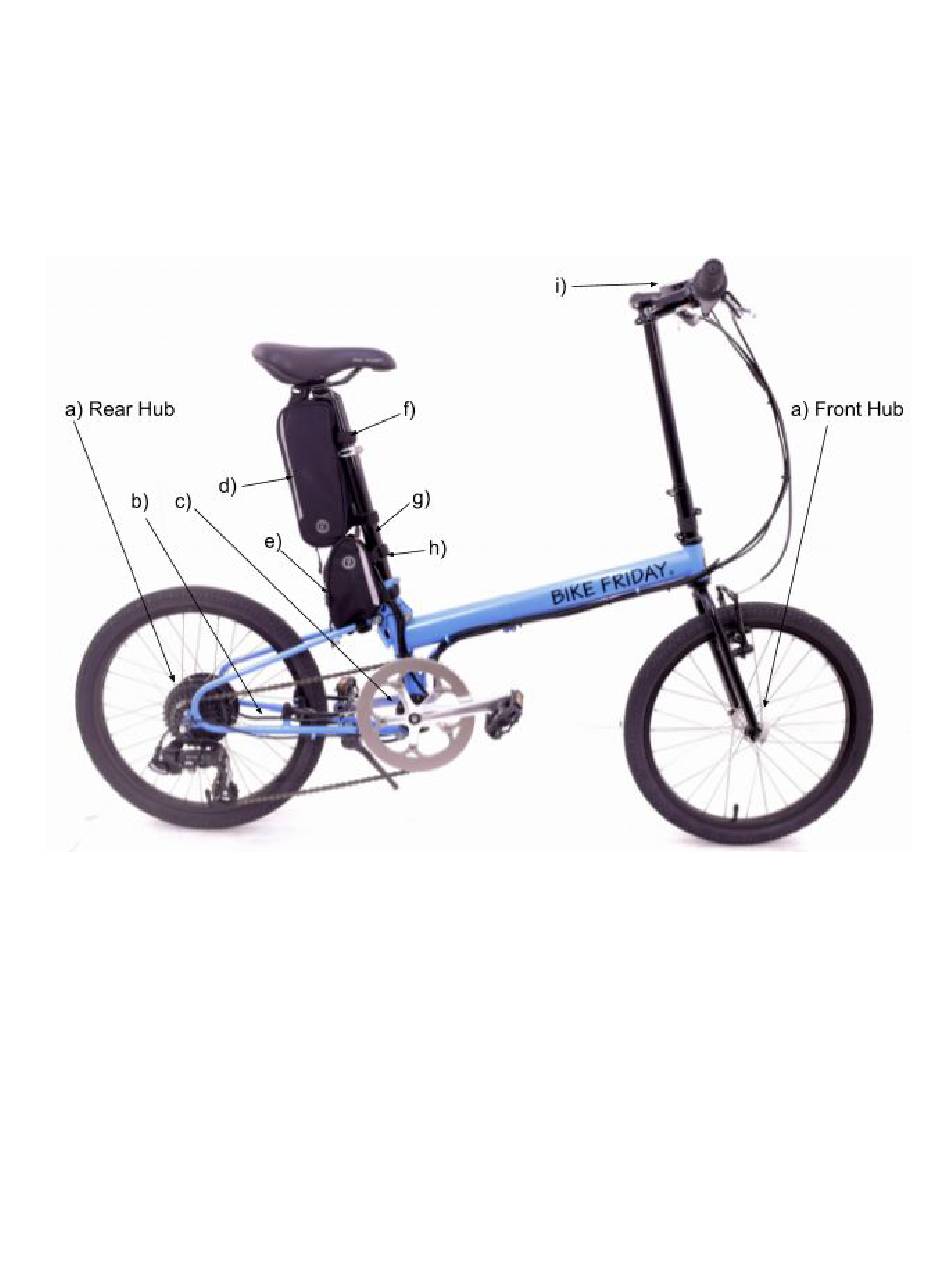

System Components:
a) H ub Motor (Front or Rear)*
b) Motor Extension Cable
c) Pedal Assist Sensor (PAS)
d) 36v Battery(s)**
e) Controller Box**
* Hub motors are available in either front or rear hub configuration.
** Several 36v battery systems are available. Position and appearance of batteries and
associated accessories will vary.
f) Battery Bag**
g) Power Extension Cable**
h) Controller Bag**
i) Handlebar Control Console
1
