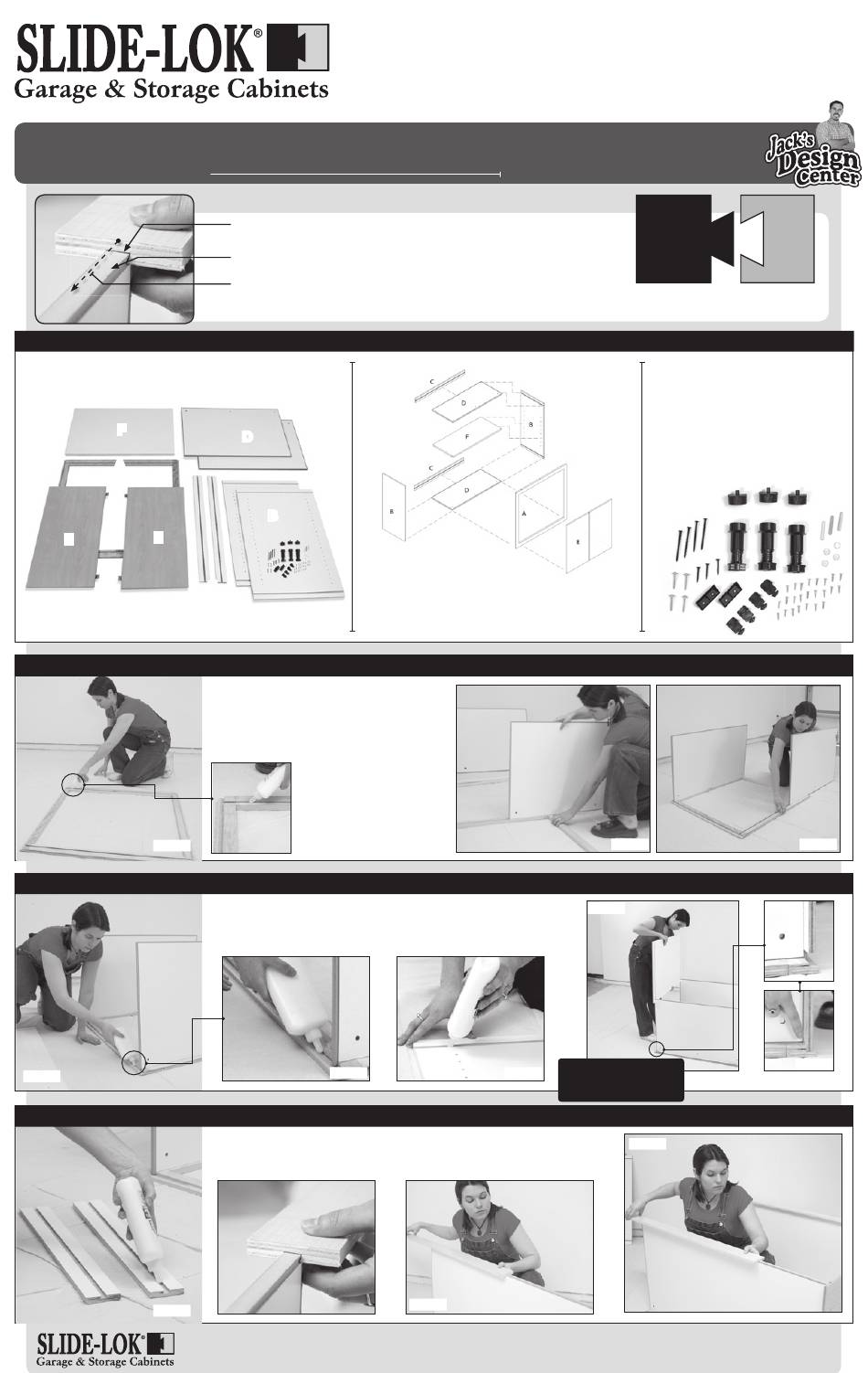

SLIDE-LOK S3634 Assembly Instructions

S3634
Assembly Instructions

Step 1. - Identify all Pieces

Remove cabinet parts from box and identify all pieces as
pictured in fig. 1.
F
A
E
E

Step 2. - Attaching Top and Bottom Shelves

[ fig 2 ]

Step 3. - Attaching the First Side Panel

[ fig 3 ]

Step 4. - Attaching Top and Bottom Nailers

[ fig 4 ]
READ ALL INSTRUCTIONS BEFORE YOU BEGIN.
DO NOT JUMP AHEAD OF ANY STEP.
If this is your first time assembling a SLIDE-LOK cabinet
cabinet without gluing to give yourself the opportunity to become familiar with the assembly process of SLIDE-
LOK storage cabinets. All components will slide together without force or effort if the dovetails are lined up
properly. Do not force. If force or exertion is necessary, pieces are not aligned correctly. Take apart and
start over. Be sure to glue all joints at time of assembly. Allow glue to completely dry before installing.
The Patented Dovetail Assembly System
Female Dovetail
Glue this edge
Male Dovetail
Slide Together
Slide Female dovetail
into Male dovetail
D
B
C
[ fig 1 ]
Place face frame "A" face down on a smooth surface
to prevent scratching (you may use the box it came
in). Glue all female dovetail joints as shown in fig. 2.
Slide shelves "D" into position while aligning as in
fig. 2A & 2B with holes closest to the face frame.
NOTE:
A general purpose carpenters
wood glue is recommended for
assembly. Apply a 1/16" bead of
glue to the entire length of the
female Dovetail joint
Glue rabbet joint as in fig. 3A. Dovetail joint and side panel as in fig. 3B. Slide
one side panel "B" into place while aligning dovetails on top and bottom of
both shelves (see fig. 3C). Make sure to start all dovetails simultaneously,
then slide side panel into rabbet joint as in fig. 3D & 3E.
[ fig 3A ]
Glue the female dovetail on the nailer see fig. 4. Slide one nailer onto the top
shelf (fig. 4A) and one nailer onto the bottom shelf (fig. 4B). Make sure they
touch the side panel.
