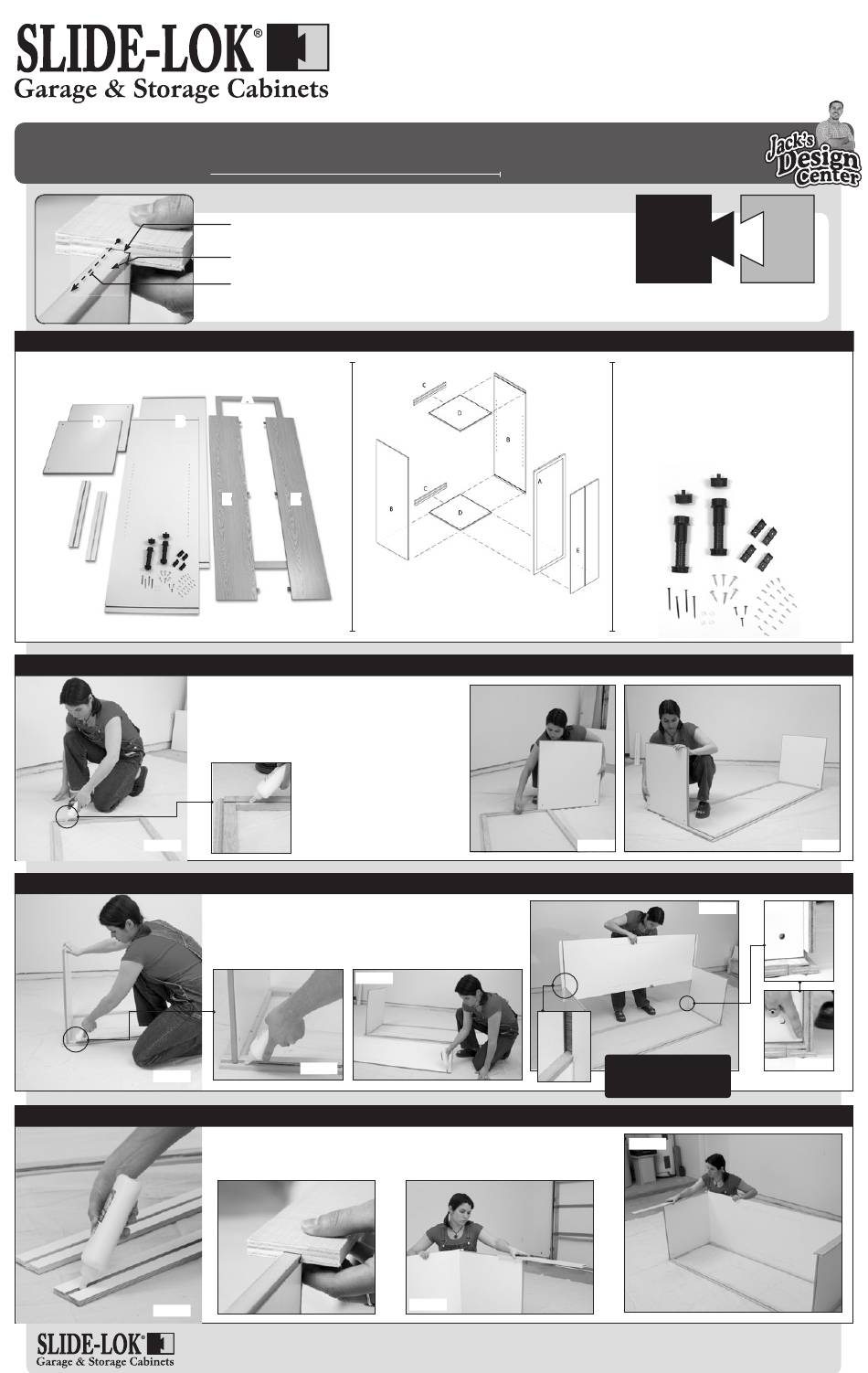

SLIDE-LOK P2468 Assembly Instructions

P2468 Pantry Cabinet
Assembly Instructions

Step 1. - Identify all Pieces

Remove cabinet parts from box and identify all pieces as
pictured in fig. 1.
D B
C

Step 2. - Attaching Top and Bottom Shelves

[ fig 2 ]

Step 3. - Attaching the First Side Panel

[ fig 3 ]

Step 4. - Attaching Top and Bottom Nailers

[ fig 4 ]
READ ALL INSTRUCTIONS BEFORE YOU BEGIN.
DO NOT JUMP AHEAD OF ANY STEP.
If this is your first time assembling a SLIDE-LOK cabinet
cabinet without gluing to give yourself the opportunity to become familiar with the assembly process of SLIDE-
LOK storage cabinets. All components will slide together without force or effort if the dovetails are lined up
properly. Do not force. If force or exertion is necessary, pieces are not aligned correctly. Take apart and
start over. Be sure to glue all joints at time of assembly. Allow glue to completely dry before installing.
The Patented Dovetail Assembly System
Female Dovetail
Glue this edge
Male Dovetail
Slide Together
Slide Female dovetail
into Male dovetail
A
E E
[ fig 1 ]
Place face frame "A" face down on a smooth surface
to prevent scratching (you may use the box it came in).
Glue all female dovetail joints as shown in fig. 2. Slide
shelves "D" into position while aligning as in fig. 2A & 2B
with holes closest to the face frame.
NOTE:
A general purpose carpenters wood glue
is recommended for assembly. Apply a
1/16" bead of glue to the entire length of
the female Dovetail joint.
Glue rabbet joint as in fig. 3A. Dovetail joint and side panel
as in fig. 3B. Slide one side panel "B" into place while
aligning dovetails on top and bottom of both shelves (see
fig. 3C). Make sure to start all dovetails simultaneously, then
slide side panel into rabbet joint as in fig. 3D & 3E.
[ fig 3B ]
[ fig 3A ]
Glue the female dovetail on the nailer see fig. 4. Slide one nailer onto the top
shelf (fig. 4A) and one nailer onto the bottom shelf (fig. 4B). Make sure they
touch the side panel.
800-835-1759
slide-lok.com/assembly/P2468
Quick And Easy Assembly
All components will slide together without
force or effort if the dovetails are lined up
properly. If force or exertion is necessary,
pieces are not aligned correctly
A. Face Frame
B. Side Panels
C. Shelf Nailers
D. Top and Bottom Shelves.
E. Doors
[ fig 4A ]
slide-lok.com/assembly/P2468
, you may find it helpful to first assemble the
A
Male
Dovetail
. Simply Slide A Into B
It's That Easy!
(2) Adjustable legs & doweled tops
(4) Clear door bumpers
(4) Corner brackets
(6) 1 1⁄2" Door screws
(4) 2 1⁄2" Black installation screws
(24) 1/2" Silver screws for adjustable Legs, corner
brackets and shelf clips
(3) 1 1⁄4" Black screws for joining cabinets together
[ fig 2A ]
[ fig 3C ]
!
DO NOT SLIDE OTHER
SIDE PANEL ON AT
THIS TIME.
[ fig 4B ]
B
Female
Dovetail
[ fig 2B ]
[ fig 3D ]
[ fig 3E ]
